HD325-7R S/N 12001-UP

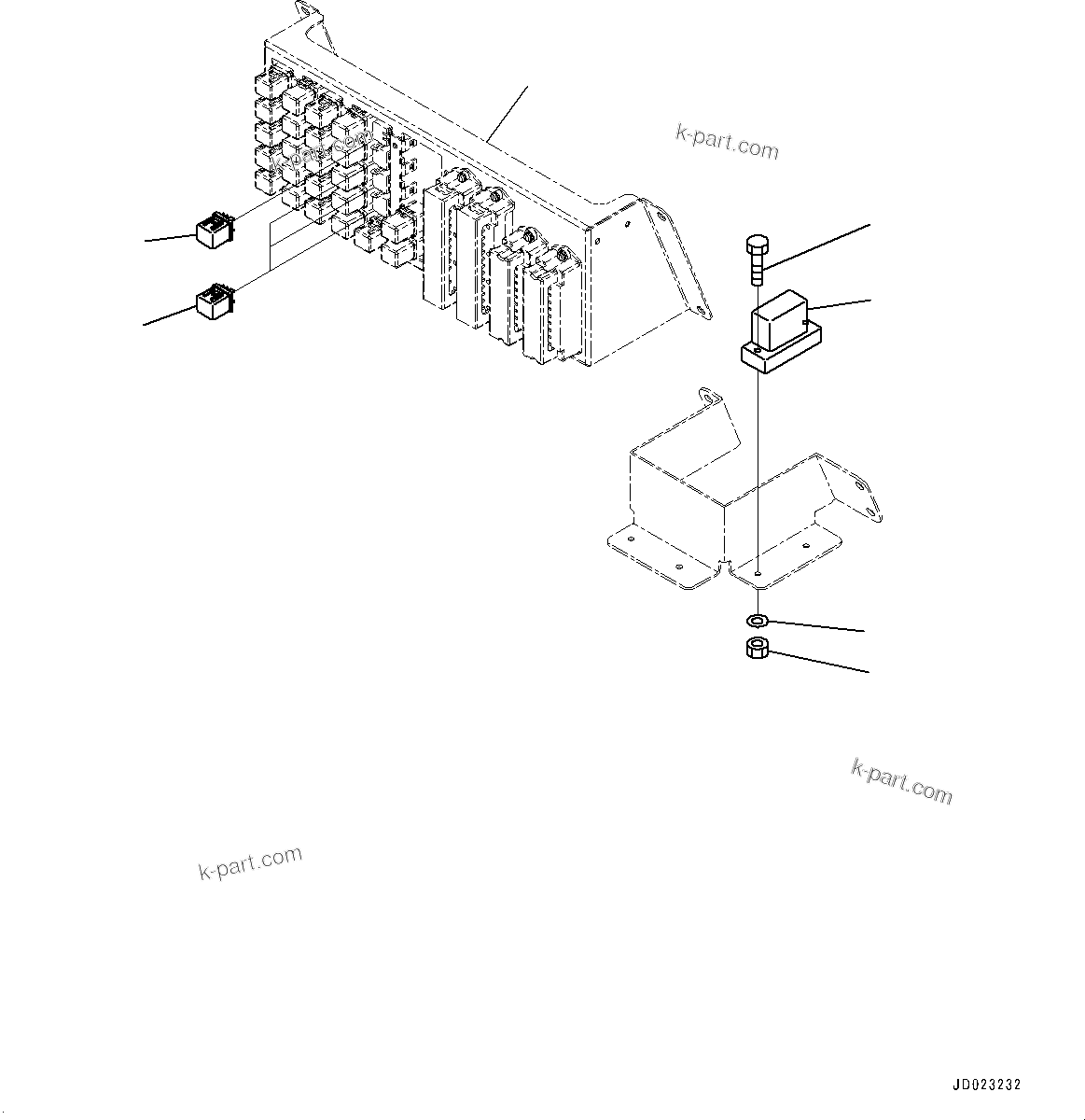

Komatsu parts book diagram for HD325-7R S/N 12001-UP: CAB, PAYLOAD METER ANGLE SENSOR(#12001-)

? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	7861-93-5350	Sensor, Angle	1	SN: 12001-UP
	?	01010-50635	Bolt	2	SN: 12001-UP
	?	01580-10605	Nut	2	SN: 12001-UP
	?	01602-20619	Washer, Spring	2	SN: 12001-UP
	?	569-06-61960	Relay	3	SN: 12001-UP
	?	569-06-61970	Relay	1	SN: 12001-UP
	?	561-06-86183	Bracket(Cab,Relay)	-1	SN: UP	K0200-132040

Komatsu HD325-7R S/N 12001-UP parts catalog PDF

CAB, PAYLOAD METER ANGLE SENSOR(#12001-) (K0200-132046) in HD325-7R S/N 12001-UP. Diagram image and parts list.
