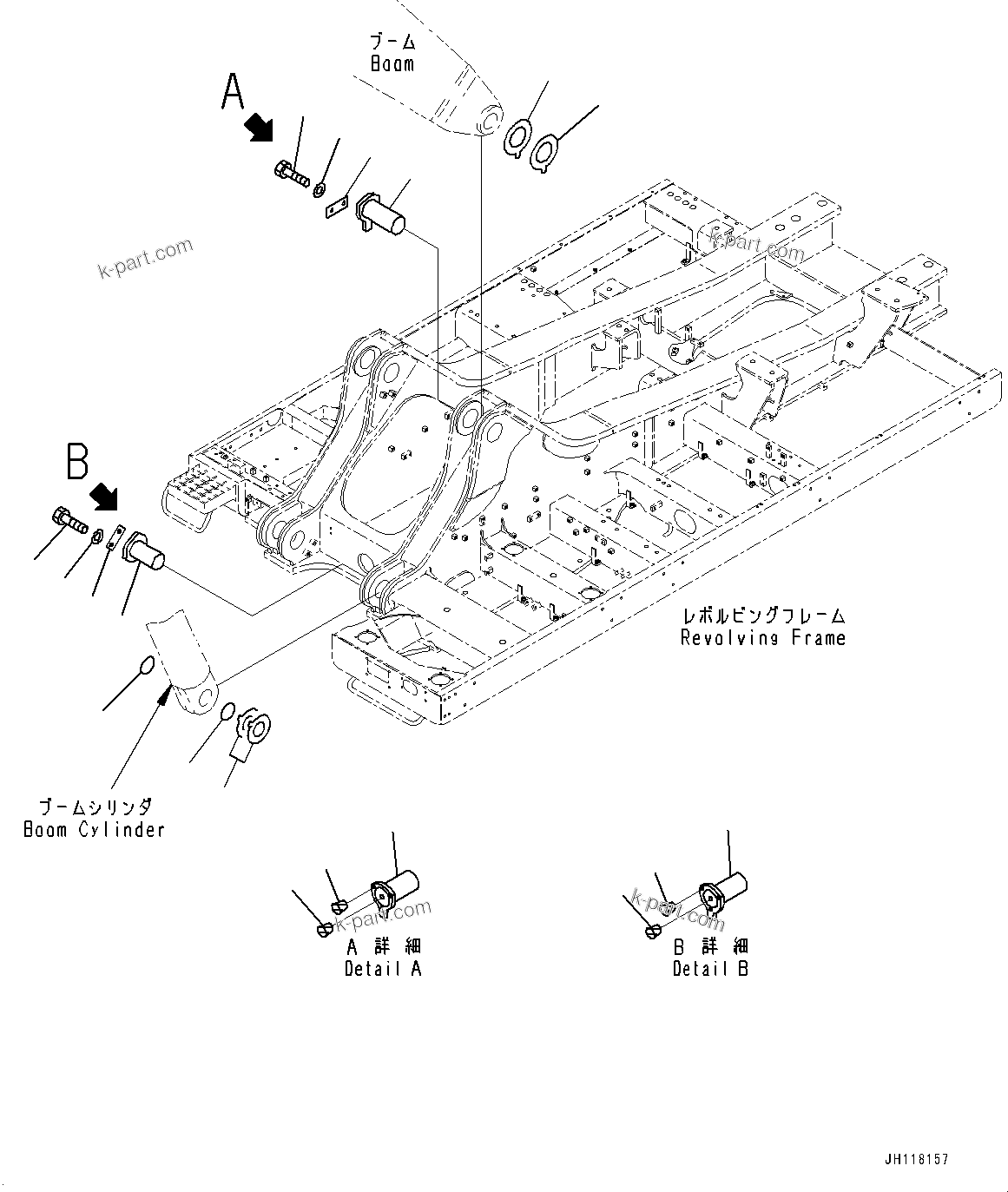

Komatsu parts book diagram for PC800SE-8E0 S/N 67001-UP: BOOM FOOT PIN, (#65001-)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	209-72-11172	Pin	2	SN: 65001-UP
	?	21N-70-11230	Plate	2	SN: 65001-UP
	?	01010-81640	Bolt	4	SN: 65001-UP
	?	01643-31645	Washer	4	SN: 65001-UP
	?	209-70-71640	Shim, T=1.0mm	2	SN: 65001-UP
	?	209-70-71650	Shim, T=1.5mm	4	SN: 65001-UP
	?	07049-02430	Plug	6	SN: 65001-UP
	?	07049-03038	Plug, Cork	2	SN: 65001-UP
	?	209-72-51161	Pin	2	SN: 65001-UP
	?	21N-70-11230	Plate	2	SN: 65001-UP
	?	01010-81640	Bolt	4	SN: 65001-UP
	?	01643-31645	Washer	4	SN: 65001-UP
	?	07000-12130	O-ring	4	SN: 65001-UP
	?	209-72-00040	Shim Assembly	2	SN: 65001-UP
	?		Shim, T=1.0mm	2	SN: 65001-UP \| SCC: C1
	?		Shim, T=1.5mm	2	SN: 65001-UP \| SCC: C1
	?	07049-02430	Plug	6	SN: 65001-UP
	?	07049-03038	Plug, Cork	2	SN: 65001-UP
	?		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP

Komatsu PC800SE-8E0 S/N 67001-UP parts catalog PDF

BOOM FOOT PIN, (#65001-) (J1310-001001) in PC800SE-8E0 S/N 67001-UP. Diagram image and parts list.
