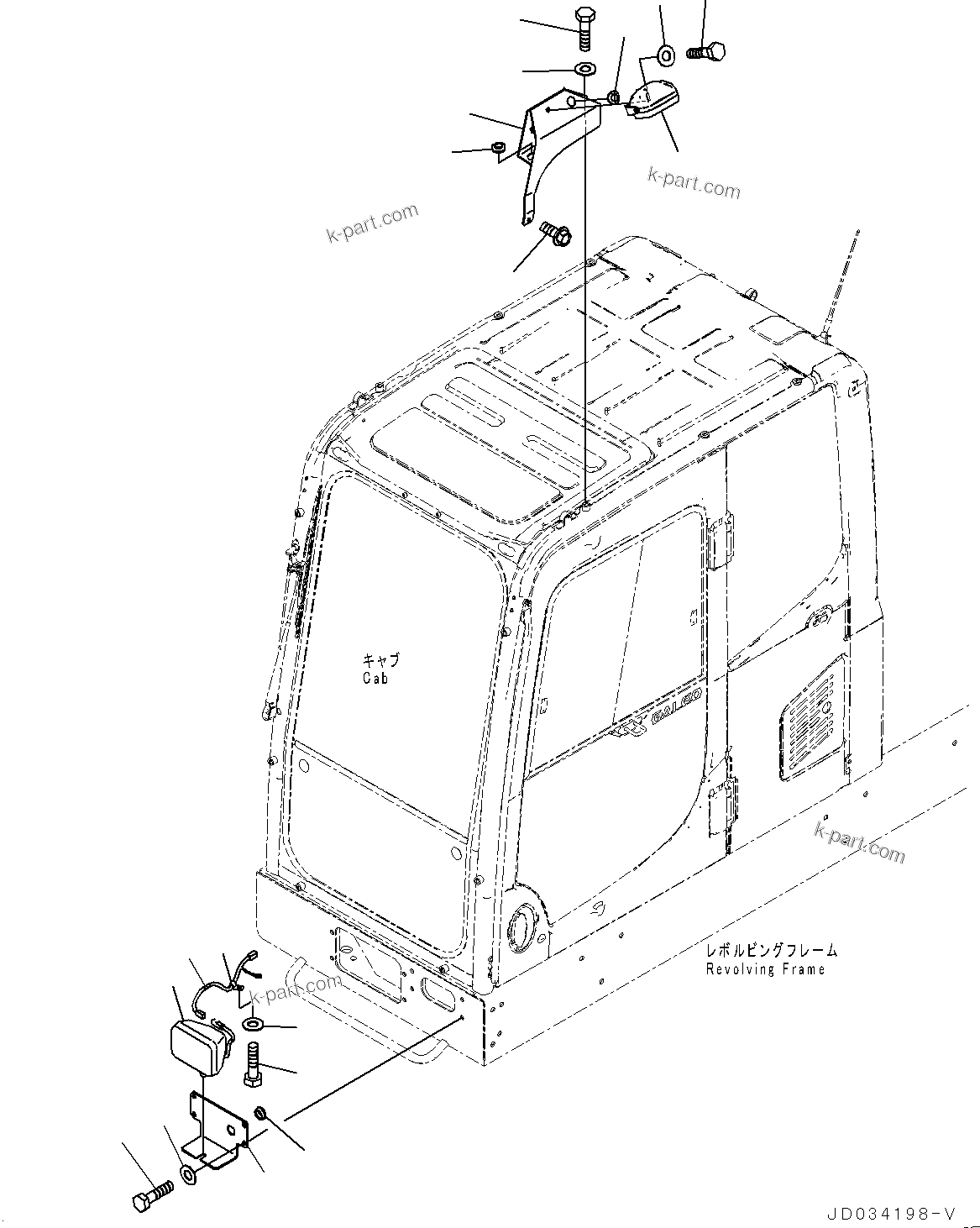

Komatsu parts book diagram for PC800SE-8E0 S/N 67001-UP: ADDITIONAL WORKING LAMP, (#65001-)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	20Y-06-41940	Working Lamp Assembly	1	SN: 65001-UP
	?	421-06-23330	Bulb, 70watt	1	SN: 65001-UP
	?	01010-D1020	Bolt	1	SN: 65001-UP
	?	01643-71032	Washer	1	SN: 65001-UP
	?	209-53-24420	Bracket	1	SN: 65001-UP
	?	08037-02512	Grommet	2	SN: 65001-UP
	?	01435-40830	Bolt, Flanged	1	SN: 65001-UP
	?	01010-D1275	Bolt	1	SN: 65001-UP
	?	01643-71232	Washer	1	SN: 65001-UP
	?	21T-06-32810	Working Lamp Assembly	1	SN: 65001-UP
	?	421-06-23330	Bulb, 70watt	1	SN: 65001-UP
	?	209-06-41320	Bracket	1	SN: 65001-UP
	?	08037-02512	Grommet	1	SN: 65001-UP
	?	01010-81230	Bolt	4	SN: 65001-UP
	?	01643-31232	Washer	4	SN: 65001-UP
	?	209-06-45181	Wiring Harness	1	SN: 65001-UP
	?	04434-51010	Clip	1	SN: 65001-UP
	?	01010-81025	Bolt	1	SN: 65001-UP
	?	01643-31032	Washer	1	SN: 65001-UP

Komatsu PC800SE-8E0 S/N 67001-UP parts catalog PDF

ADDITIONAL WORKING LAMP, (#65001-) (E0310-003001) in PC800SE-8E0 S/N 67001-UP. Diagram image and parts list.
