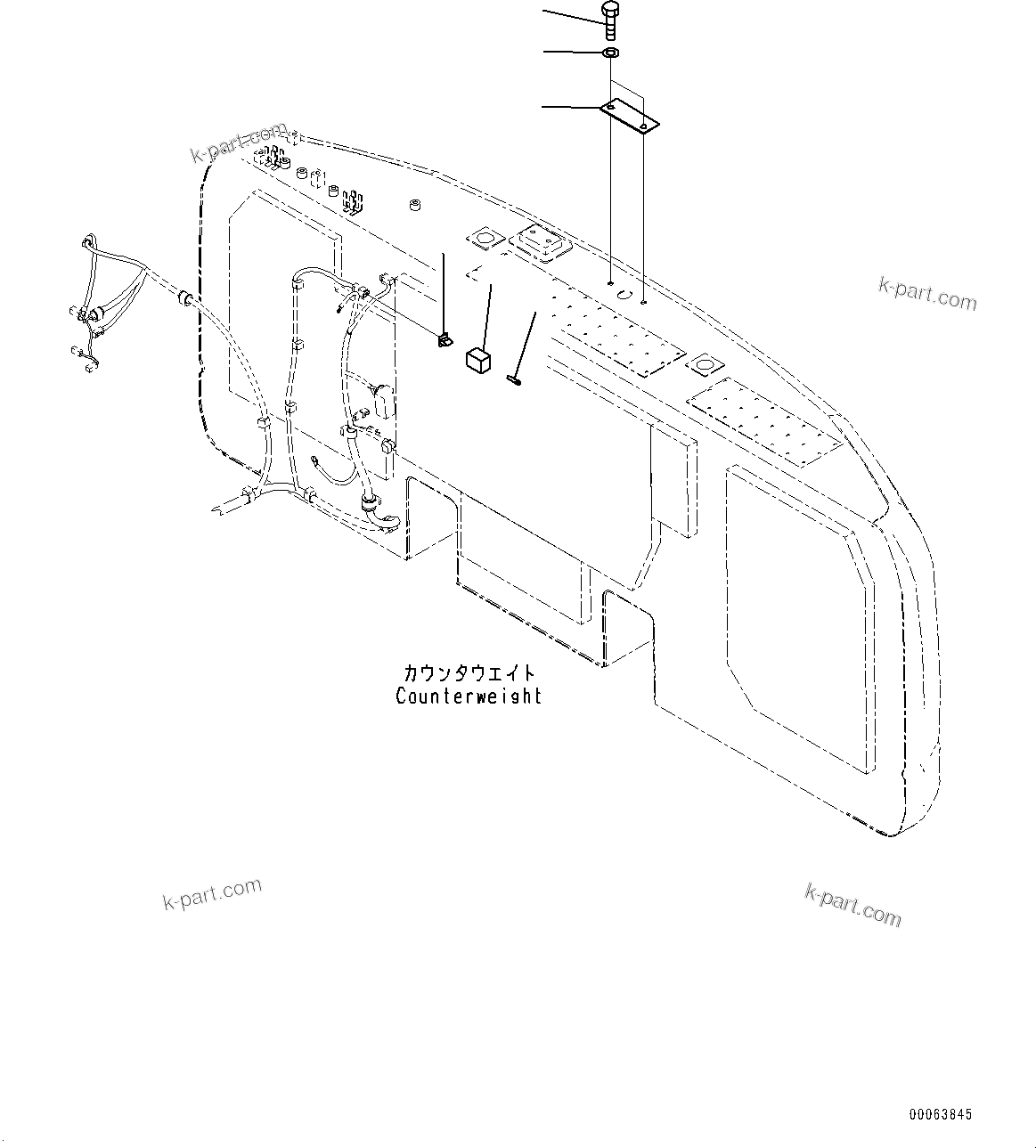

Komatsu parts book diagram for PC800SE-8E0 S/N 67001-UP: REARVIEW CAMERA LESS, (#65001-)

? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	08192-24200	Connector	1	SN: 65001-UP
	?	08192-14400	Wedge	1	SN: 65001-UP
	?	08191-00770	Plug, Connector	4	SN: 65001-UP
	?	207-06-76270	Plate	1	SN: 65001-UP
	?	01010-81220	Bolt	2	SN: 65001-UP
	?	01643-31232	Washer	2	SN: 65001-UP

Komatsu PC800SE-8E0 S/N 67001-UP parts catalog PDF

REARVIEW CAMERA LESS, (#65001-) (E0450-001001) in PC800SE-8E0 S/N 67001-UP. Diagram image and parts list.
