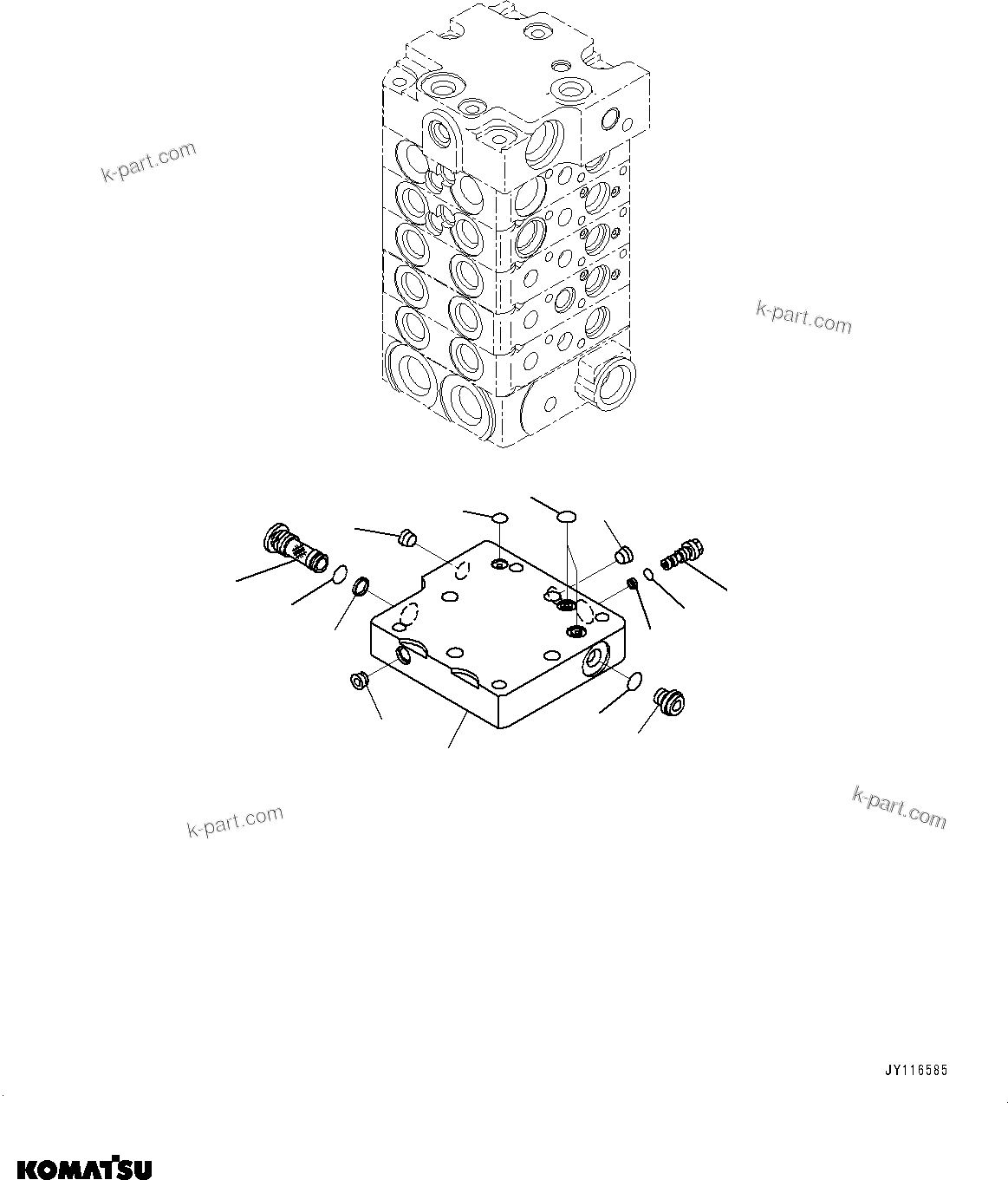

Komatsu parts book diagram for D39PXI-24 S/N 110001-UP: CONTROL VALVE, 5-VALVE (6/11)(#101481-)

? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	723-15-13500	Valve Assembly, Control	1	SN: 95001-UP
	?	723-11-03351	Cover Group	1	SN: 101481-UP
	?		Plate	1	SN: 95001-UP \| SCC: C1
	?	708-8E-16160	Plug	1	SN: 95001-UP
	?	07002-11023	O-ring	1	SN: 95001-UP
	?	723-20-98700	Plug Assembly	1	SN: 101481-UP
	?		Orifice	1	SN: 101481-UP \| SCC: C1
	?	07002-60823	O-ring	1	SN: 101481-UP
	?		Seal	1	SN: 101481-UP \| SCC: C1
	?		Plug, Stocking	3	SN: 95001-UP \| SCC: C1
	?	702-21-56420	Filter Assembly	1	SN: 101481-UP
	?		Filter	1	SN: 101481-UP \| SCC: C1
	?		Seal	1	SN: 101481-UP \| SCC: C1
	?	07002-11423	O-ring	1	SN: 101481-UP
	?	07000-11009	O-ring	2	SN: 95001-UP
	?	07000-11007	O-ring	1	SN: 95001-UP
	?		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP
