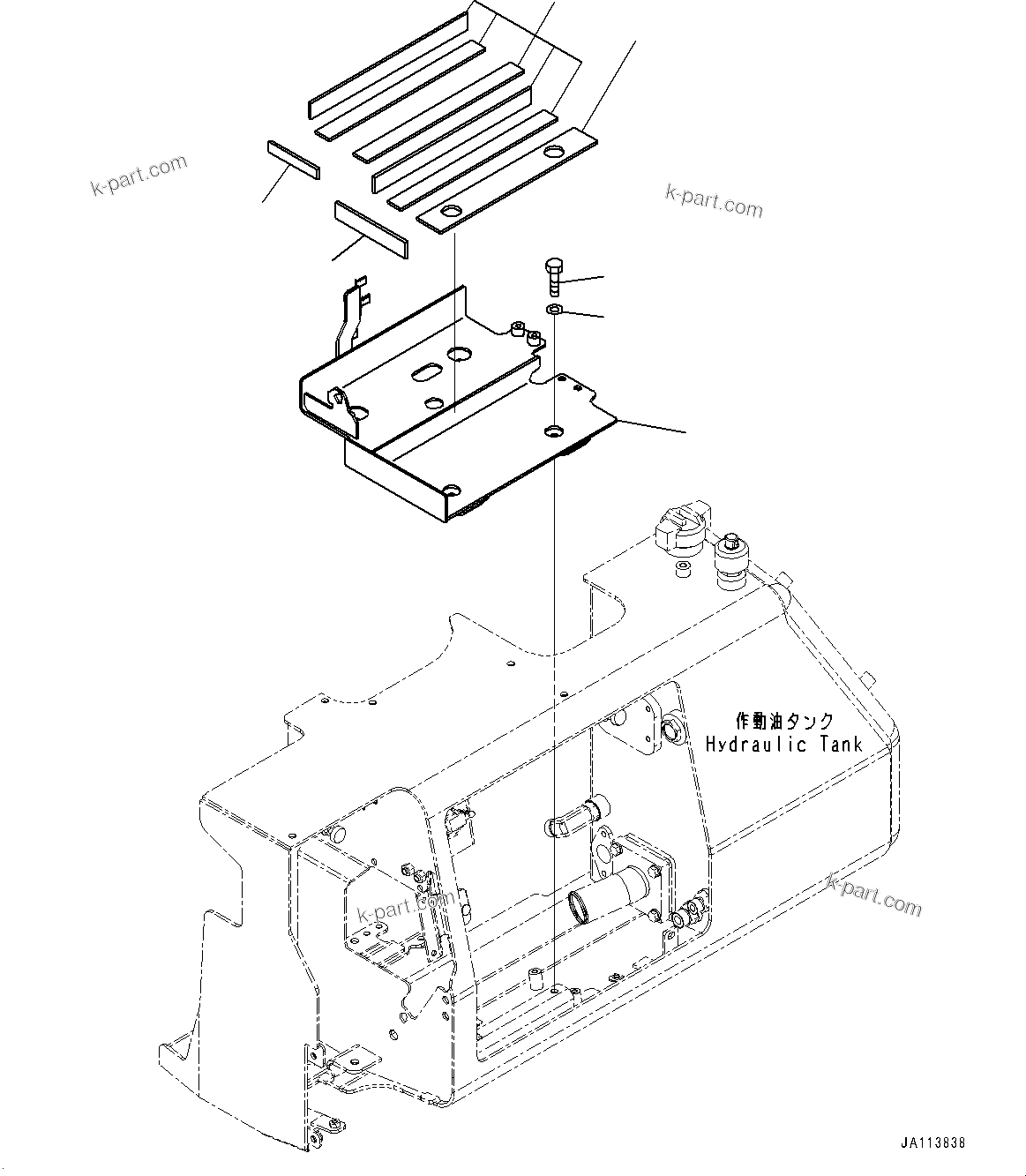

Komatsu parts book diagram for D39PXI-24 S/N 110001-UP: BATTERY, BRACKET (LARGE CAPACITY)(#110001-)

? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	11Y-54-53732	Bracket	1	SN: 110001-UP
	?	11Y-54-53A20	Cushion	5	SN: 110001-UP
	?	11Y-54-53A90	Cushion	1	SN: 110001-UP
	?	11Y-54-53B81	Cushion	1	SN: 110001-UP
	?	11Y-54-43A80	Cushion	1	SN: 110001-UP
	?	01010-81025	Bolt	4	SN: 110001-UP
	?	01643-31032	Washer	4	SN: 110001-UP

Komatsu D39PXI-24 S/N 110001-UP parts catalog PDF

BATTERY, BRACKET (LARGE CAPACITY)(#110001-) (E0100-003002) in D39PXI-24 S/N 110001-UP. Diagram image and parts list.
