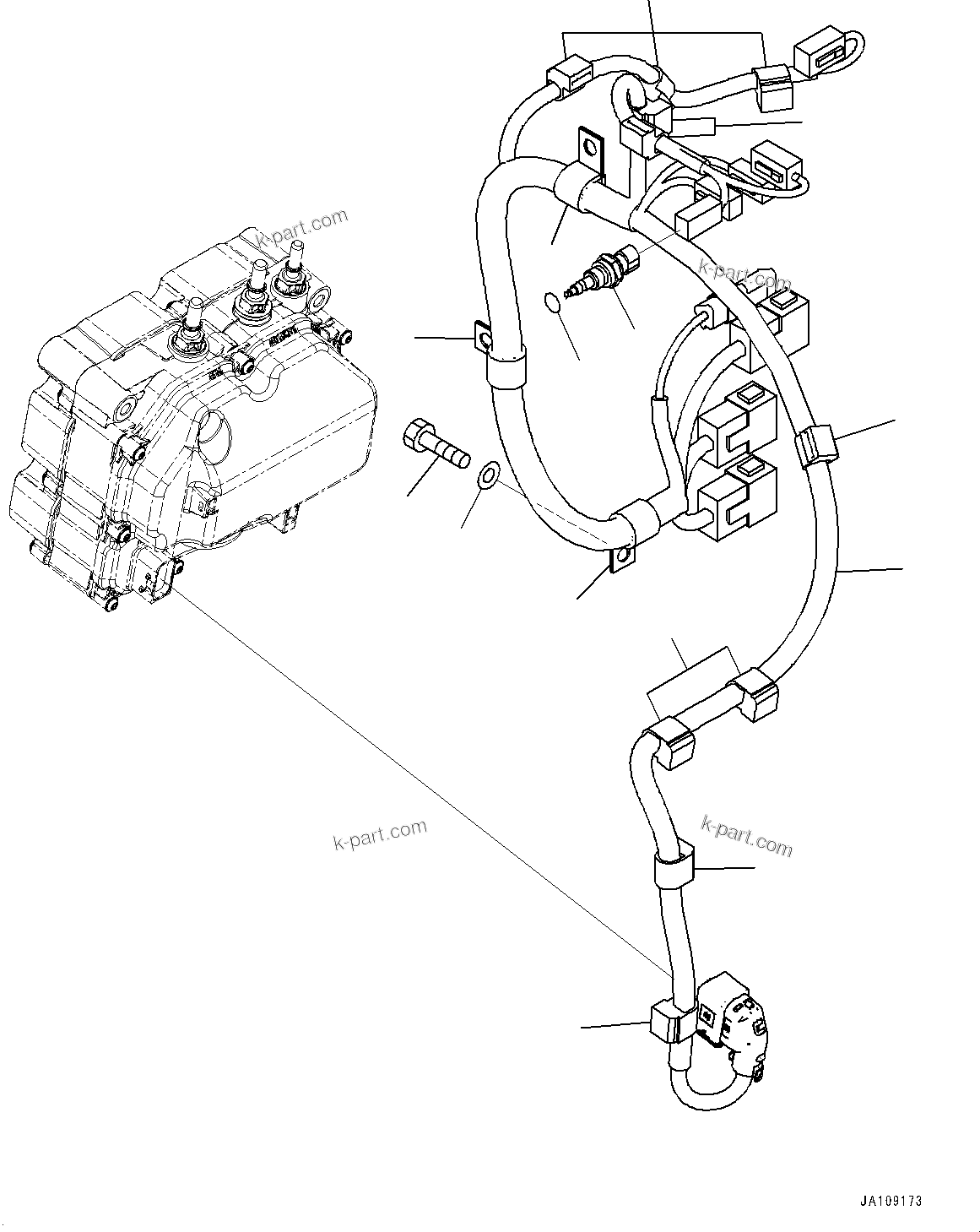

Komatsu parts book diagram for D39PXI-24 S/N 110001-UP: ELECTRIC WIRING HARNESS, WIRING HARNESS (2/3)(#100001-)

? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	11Y-06-54123	Wiring Harness	1	SN: 102267-UP
	?	11Y-06-54122	Wiring Harness	1	SN: 102015-102266 \| SCC: B1
	?	11Y-06-54121	Wiring Harness	1	SN: 100001-102014 \| SCC: B1
	?	2A5-06-25390	Diode	1	SN: 102015-102266
	?	04434-51910	Clip	3	SN: 100001-UP
	?	01010-81020	Bolt	1	SN: 100001-UP
	?	01643-31032	Washer	1	SN: 100001-UP
	?	08211-01020	Clip	5	SN: 100001-UP
	?	08211-00720	Clip	5	SN: 100001-UP
	?	6560-61-7300	Sensor, Temperature, Ambient Air	1	SN: 100001-UP
	?		Sensor, Temperature, Ambient Air	1	SN: 100001-UP \| SCC: C1
	?	6735-21-1930	O-ring	1	SN: 100001-UP
	?		[B1]-This shows discontinued part. The part specified in the above line is supplied instead.	-1	SN: UP
	?		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP

Komatsu D39PXI-24 S/N 110001-UP parts catalog PDF

ELECTRIC WIRING HARNESS, WIRING HARNESS (2/3)(#100001-) (E0200-002009) in D39PXI-24 S/N 110001-UP. Diagram image and parts list.
