WD600-6R S/N 61001-UP

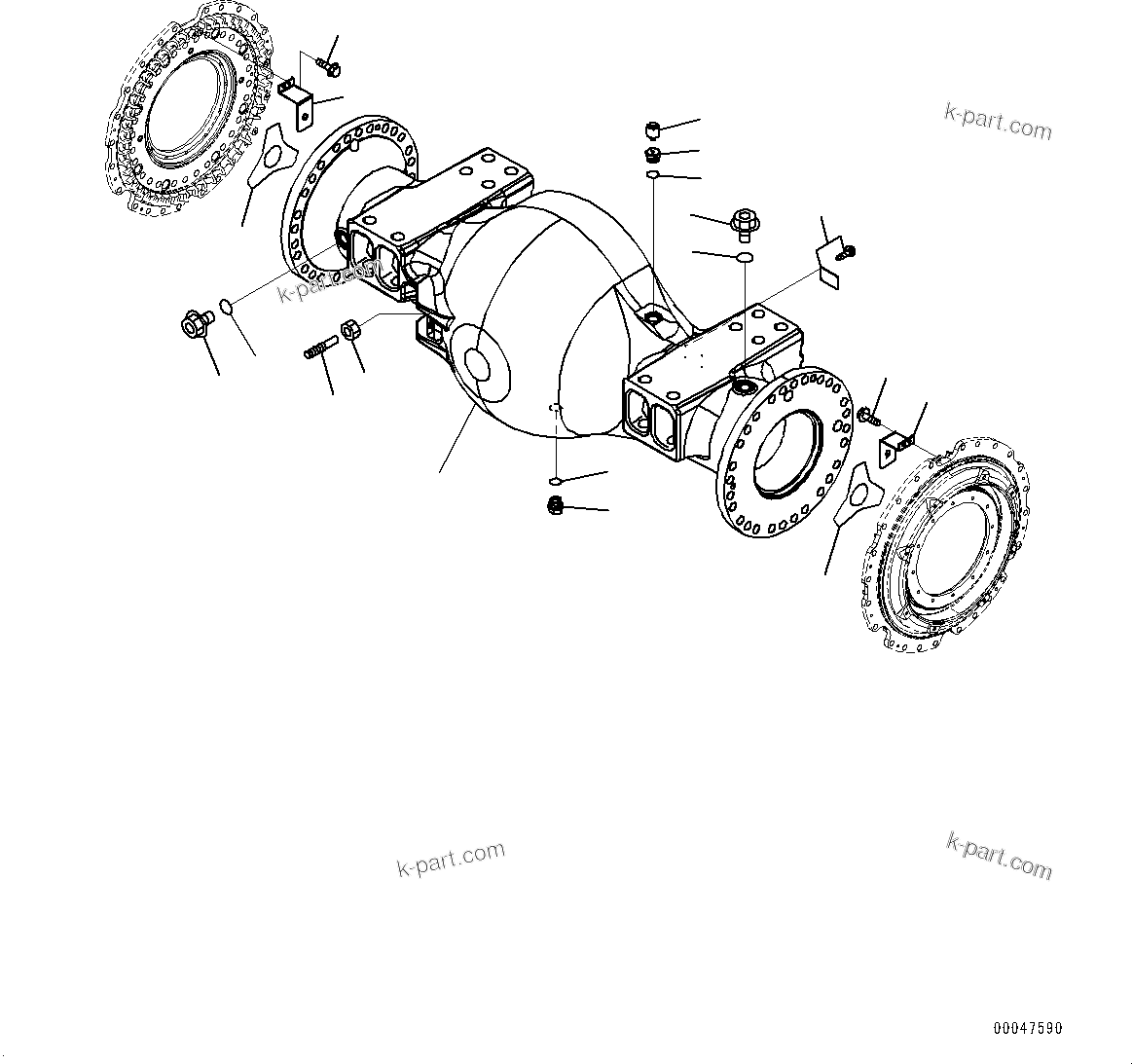

Komatsu parts book diagram for WD600-6R S/N 61001-UP: FRONT AXLE, HOUSING AND RELATED PARTS(#60001-)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	426-22-30006	Axle Assembly, Front	1	SN: 60022-UP
	?	426-22-30005	Axle Assembly, Front	1	SN: 60001-60021 \| SCC: B1
	?	426-22-33112	Housing	1	SN: 60001-UP
	?	426-22-33210	Plate	2	SN: 60001-UP
	?	09701-05080	Plate, Name (Limited Supply)	1	SN: 60024-UP \| SCC: C2
	?	815-02-10110	Plate, Name (Limited Supply)	1	SN: 60001-60023 \| SCC: B1
	?	04418-13060	Screw	4	SN: 60001-UP
	?	426-22-33540	Bolt	1	SN: 60001-UP
	?	01582-03024	Nut	1	SN: 60001-UP
	?	07044-13620	Plug	1	SN: 60001-UP
	?	07041-13612	Plug	2	SN: 60001-UP
	?	426-22-33520	Adapter	1	SN: 60001-UP
	?	07002-13634	O-ring	4	SN: 60001-UP
	?	07030-01030	Breather	1	SN: 60001-UP
	?	426-33-31740	Cover	2	SN: 60001-UP
	?	01435-01020	Bolt, Flanged	4	SN: 60001-UP
	?		[B1]-This shows discontinued part. The part specified in the above line is supplied instead.	-1	SN: UP
	?		[C2]-This part is supplied for authorized Komatsu distributors only. It cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP

Komatsu WD600-6R S/N 61001-UP parts catalog PDF

FRONT AXLE, HOUSING AND RELATED PARTS(#60001-) (F4400-001007) in WD600-6R S/N 61001-UP. Diagram image and parts list.
