PC490LC-11 S/N 87001-UP (For KAL)

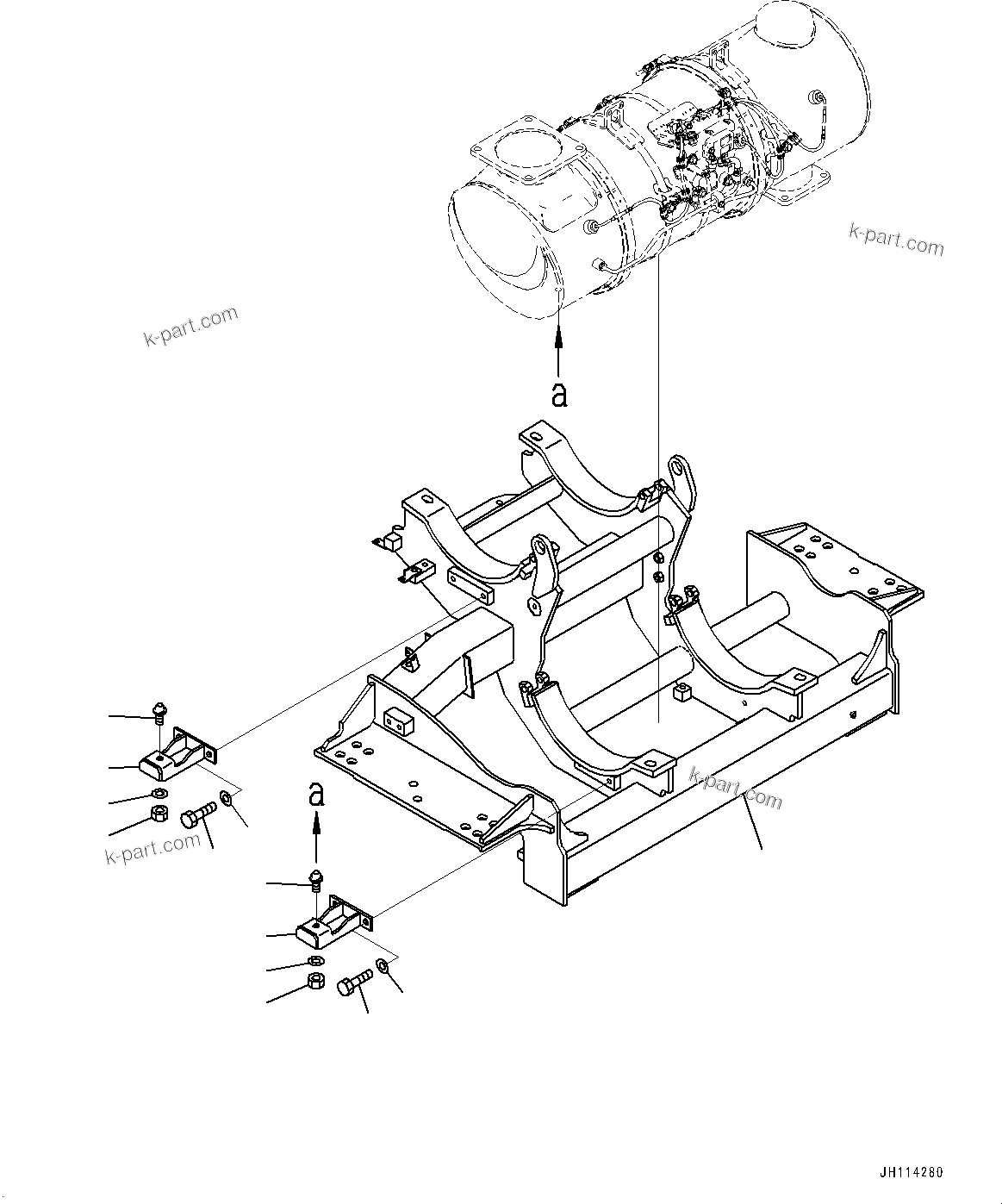

Komatsu parts book diagram for PC490LC-11 S/N 87001-UP (For KAL): EXHAUST, BRACKET(#86214-)

? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	2A8-01-16111	Bracket	1	SN: 86214-UP
	?	208-01-23120	Bracket	2	SN: 85001-UP
	?	208-01-23130	Bolt	2	SN: 85001-UP
	?	01643-31032	Washer	2	SN: 85001-UP
	?	01581-01008	Nut	2	SN: 85001-UP
	?	01010-81220	Bolt	4	SN: 85001-UP
	?	01643-31232	Washer	4	SN: 85001-UP

Komatsu PC490LC-11 S/N 87001-UP (For KAL) parts catalog PDF

EXHAUST, BRACKET(#86214-) (B0300-003001A) in PC490LC-11 S/N 87001-UP (For KAL). Diagram image and parts list.
