PC25MR-5 S/N 26001-UP

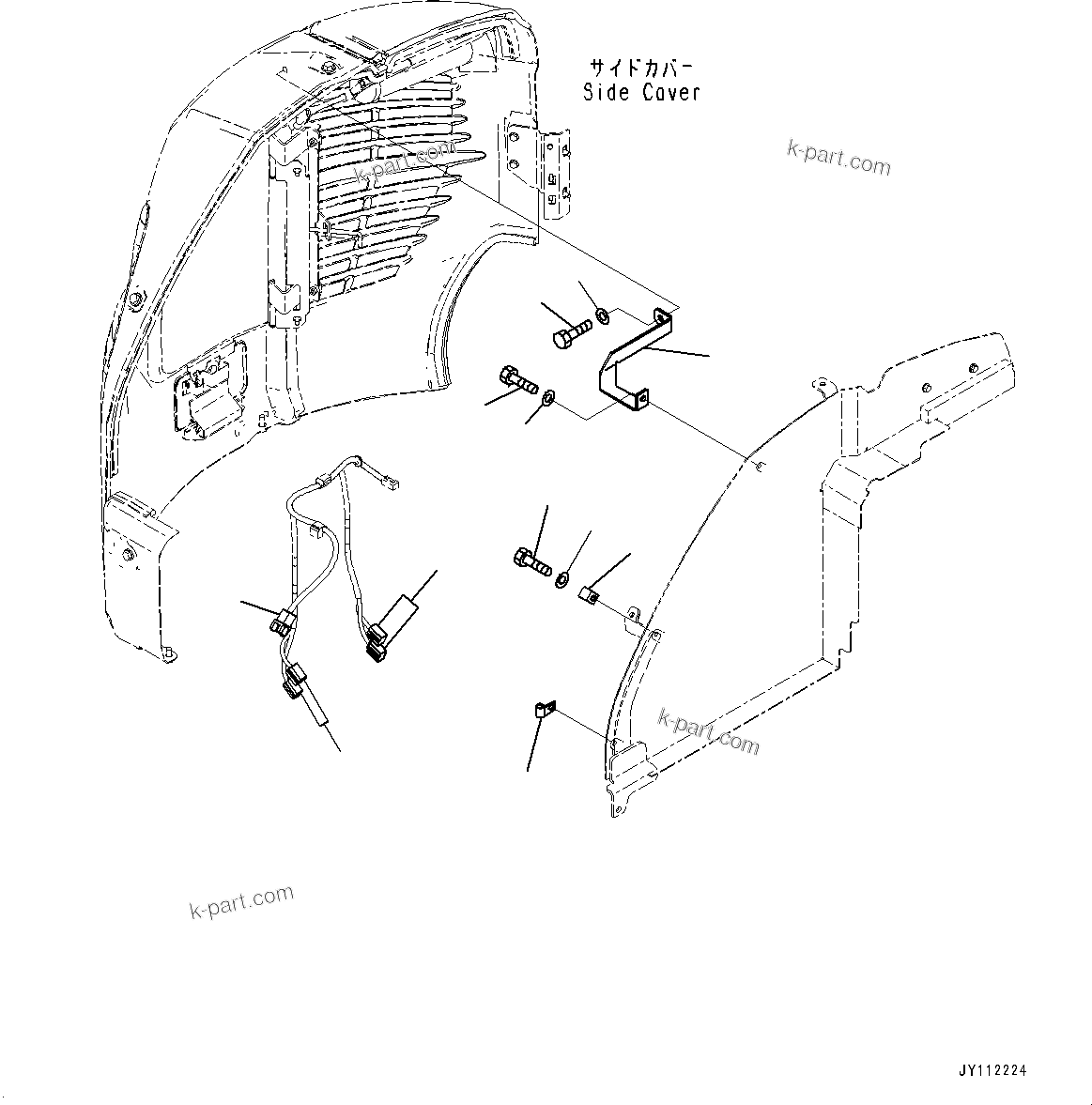

Komatsu parts book diagram for PC25MR-5 S/N 26001-UP: TRAVEL ALARM HARNESS MOUNTING, (#26001-)

? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	2A1-06-52850	Plate	1	SN: 26001-UP
	?	01010-80820	Bolt	2	SN: 26001-UP
	?	01643-30823	Washer	2	SN: 26001-UP
	?	205-06-21490	Connector Assembly	1	SN: 26001-UP
	?	22L-06-32310	Connector Assembly	4	SN: 26001-UP
	?	04434-51010	Clip	2	SN: 26001-UP
	?	01010-81020	Bolt	1	SN: 26001-UP
	?	01643-31032	Washer	1	SN: 26001-UP

Komatsu PC25MR-5 S/N 26001-UP parts catalog PDF

TRAVEL ALARM HARNESS MOUNTING, (#26001-) (E0202-001001) in PC25MR-5 S/N 26001-UP. Diagram image and parts list.
