PC25MR-5 S/N 26001-UP

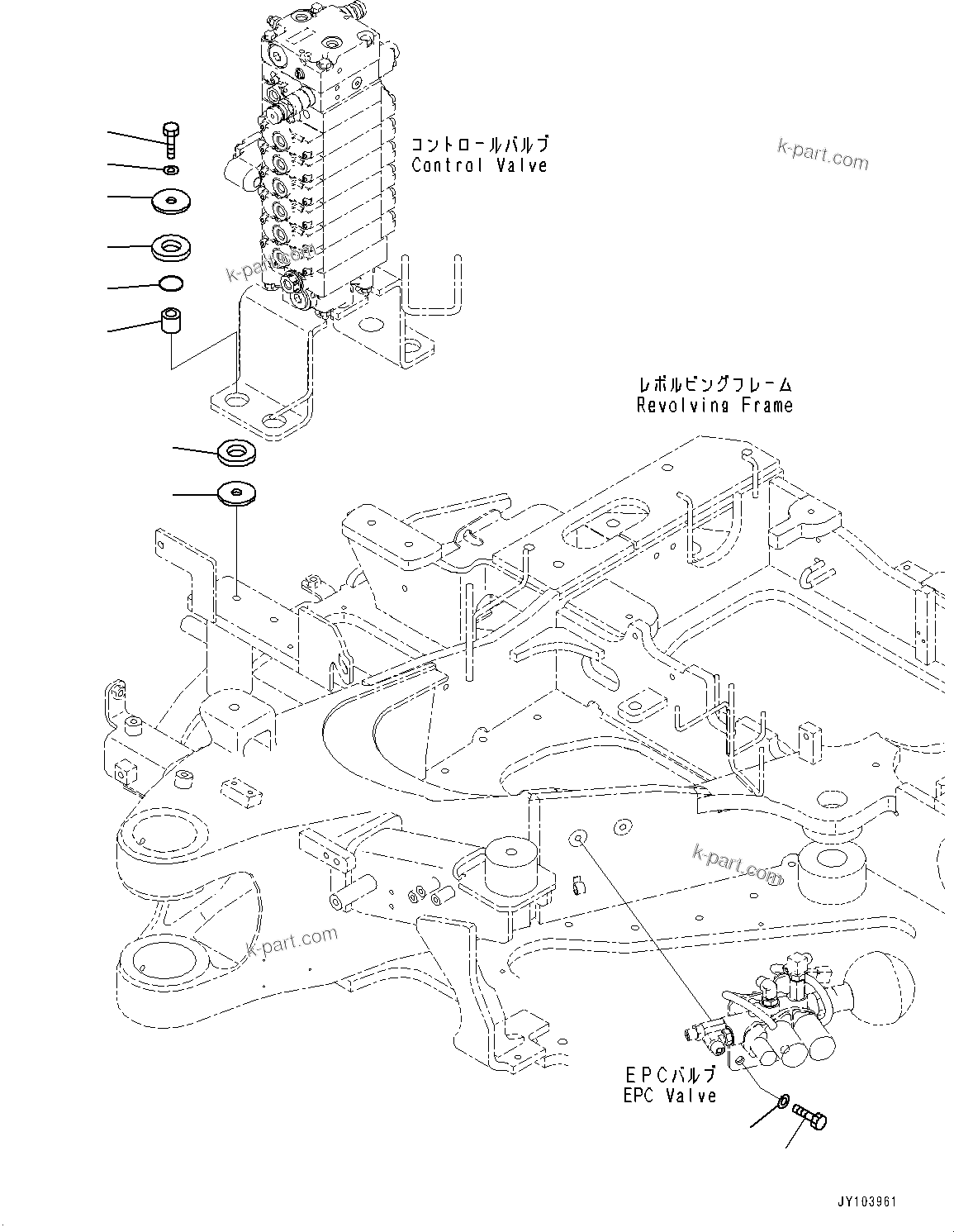

Komatsu parts book diagram for PC25MR-5 S/N 26001-UP: CONTROL VALVE, MOUNTING PARTS(#25001-)

? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	20X-62-21550	Spacer	4	SN: 25001-UP
	?	566-35-42430	Plate	8	SN: 25001-UP
	?	203-62-42770	Cushion	8	SN: 25001-UP
	?	07000-13025	O-ring	4	SN: 25001-UP
	?	01010-81255	Bolt	4	SN: 25001-UP
	?	01643-31232	Washer	4	SN: 25001-UP
	?	01010-81020	Bolt	2	SN: 25001-UP
	?	01643-31032	Washer	2	SN: 25001-UP

Komatsu PC25MR-5 S/N 26001-UP parts catalog PDF

CONTROL VALVE, MOUNTING PARTS(#25001-) (H0120-003017) in PC25MR-5 S/N 26001-UP. Diagram image and parts list.
