PC25MR-5 S/N 26001-UP

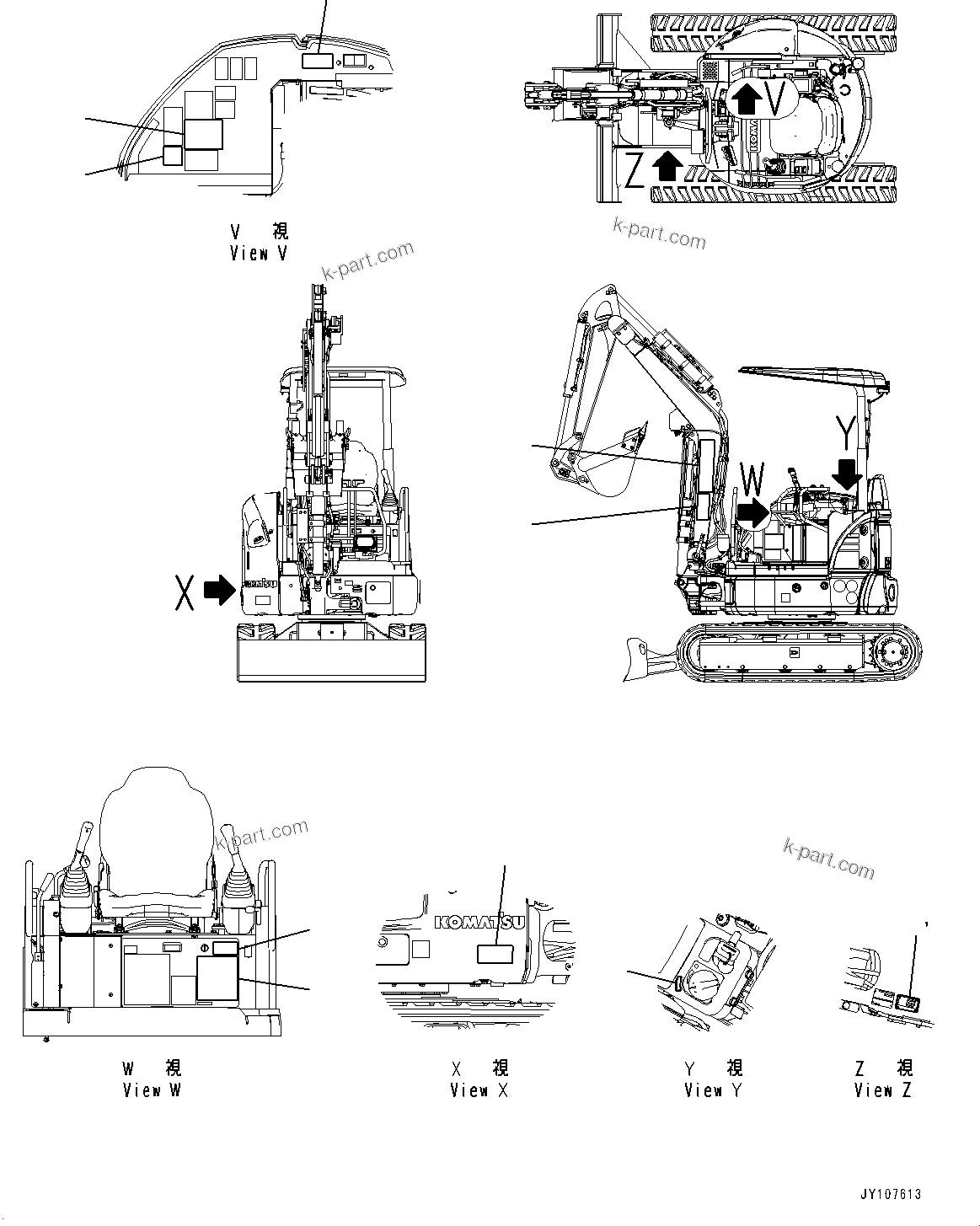

Komatsu parts book diagram for PC25MR-5 S/N 26001-UP: MARKS AND PLATES, ARM CRANE, (WITH ROPS CAB, ADDITIONAL COUNTERWEIGHT)(#26001-)

? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	21W-98-41431	Plate, Movable Crane	1	SN: 26001-UP
	?	22K-98-32510	Plate, 0.58ton	1	SN: 26001-UP
	?	22F-98-32332	Plate, Warning, Lifting Operation	1	SN: 26001-UP
	?	2A1-98-51480	Plate, Maximum Operating Radius	1	SN: 26001-UP
	?	2A1-98-51460	Plate, Rated Load Table	2	SN: 26001-UP
	?	21U-98-51120	Decal, Caution, Hook	1	SN: 26001-UP
	?	22U-00-27160	Plate, Name (Limited Supply)	1	SN: 26001-UP \| SCC: C2
	?	04418-13060	Screw	4	SN: 26001-UP
	?	22F-98-32340	Decal, Crane	1	SN: 26001-UP
	?	22F-98-32380	Decal, Arm Crane Warning Code Table	1	SN: 26001-UP
	?	2A1-98-51570	Plate, Warning, Tipping Over	1	SN: 26001-UP
	?		[C2]-This part is supplied for authorized Komatsu distributors only. It cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP

Komatsu PC25MR-5 S/N 26001-UP parts catalog PDF

MARKS AND PLATES, ARM CRANE, (WITH ROPS CAB, ADDITIONAL COUNTERWEIGHT)(#26001-) (U0210-004001) in PC25MR-5 S/N 26001-UP. Diagram image and parts list.
