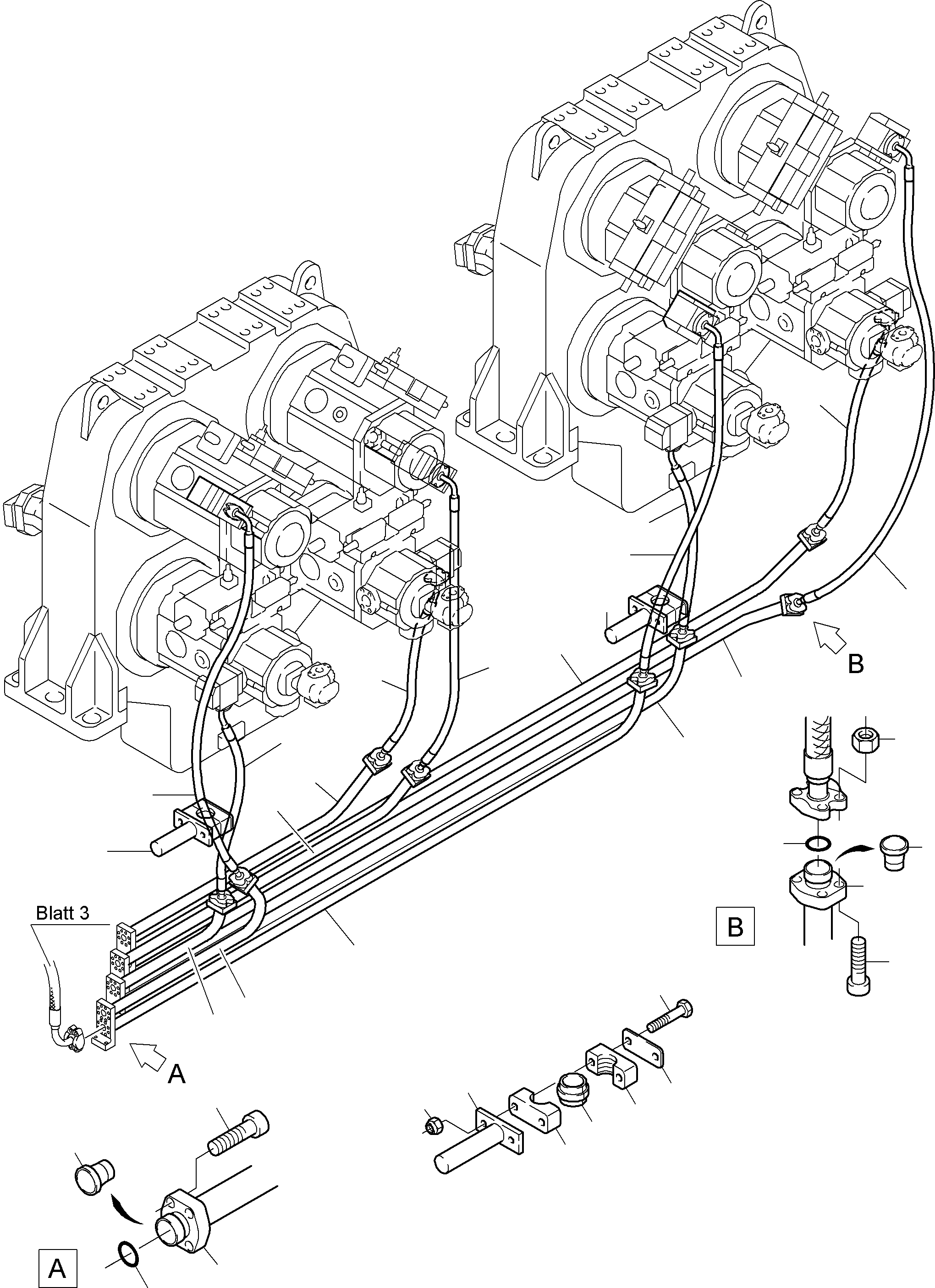

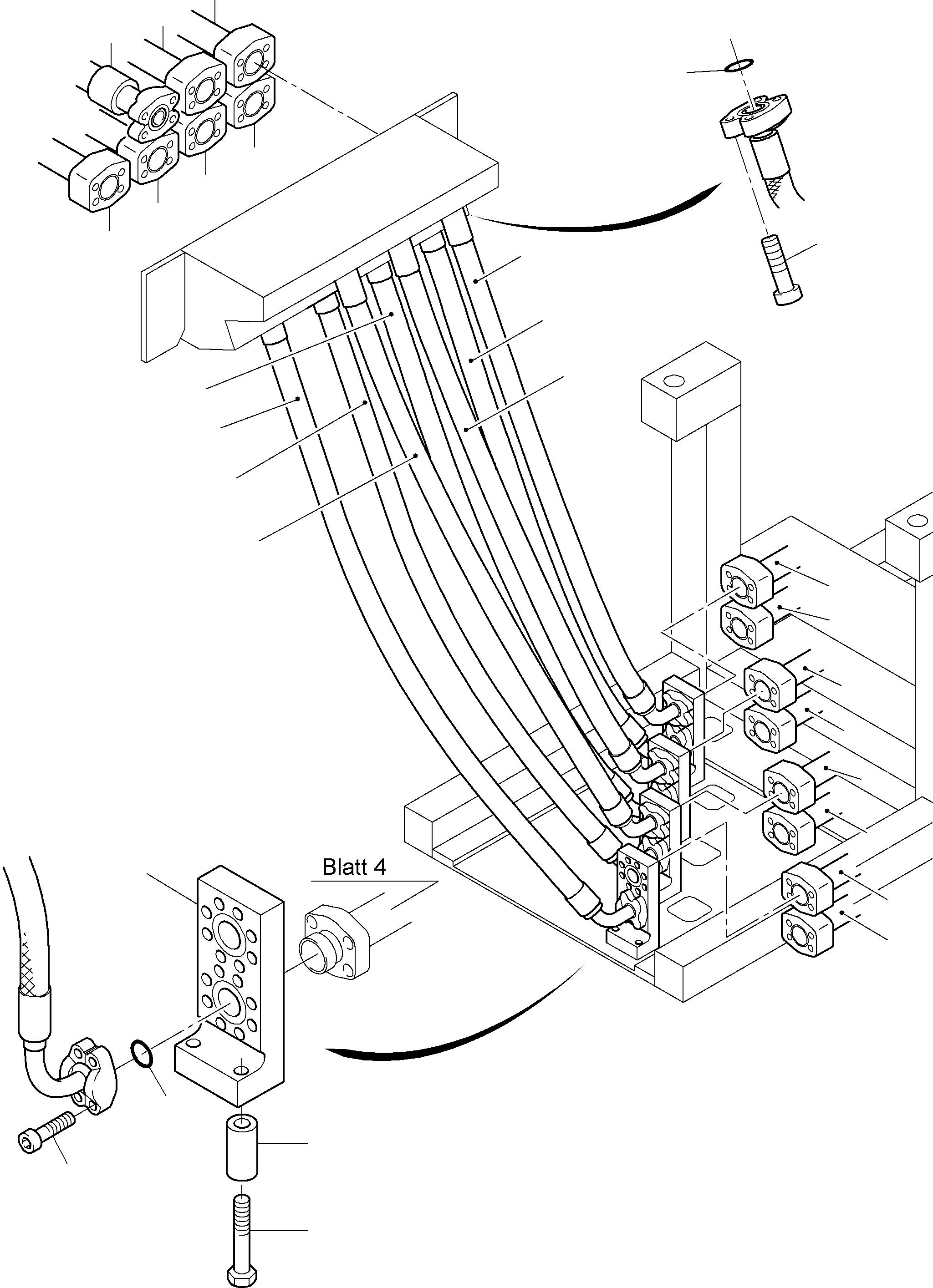

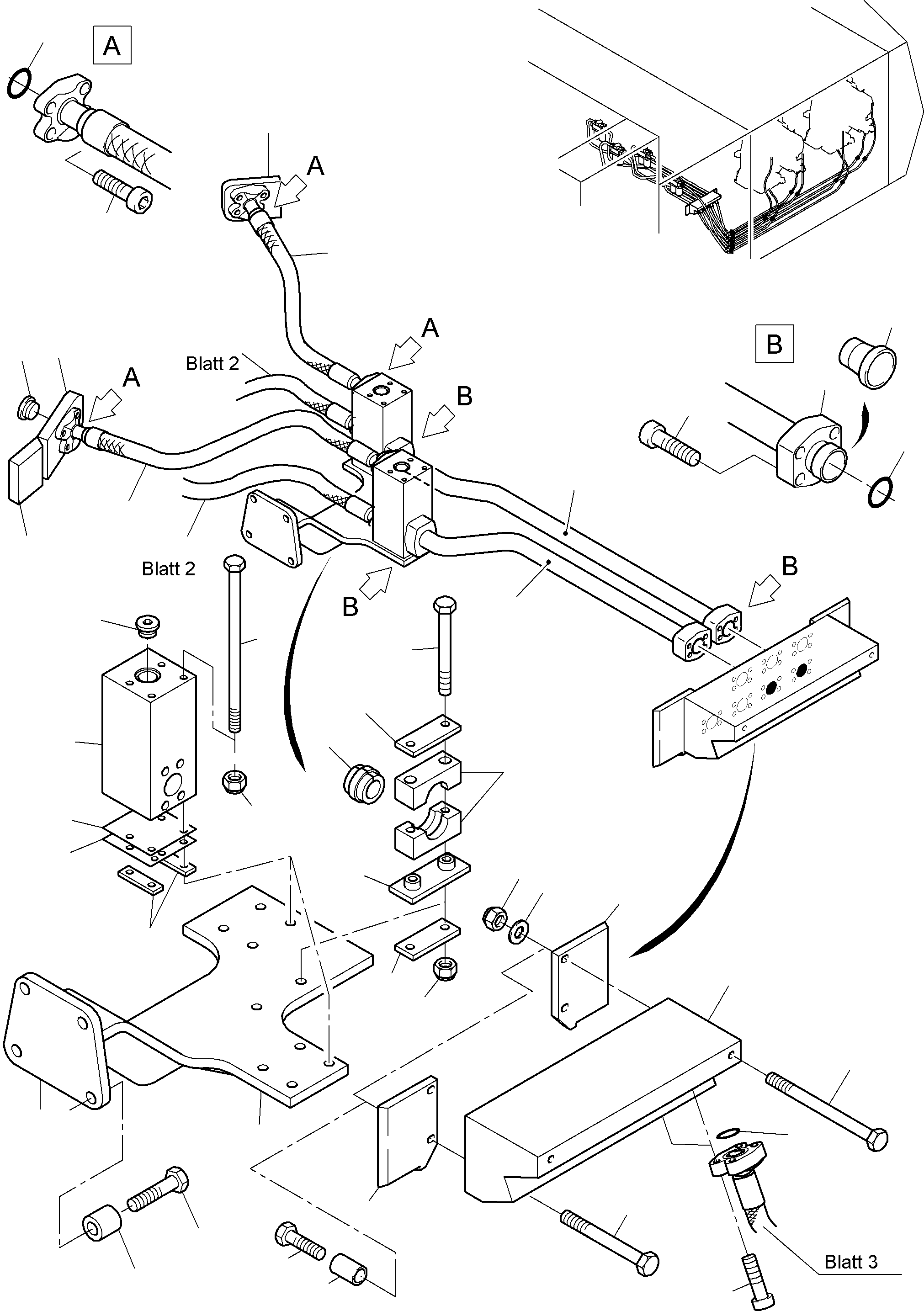

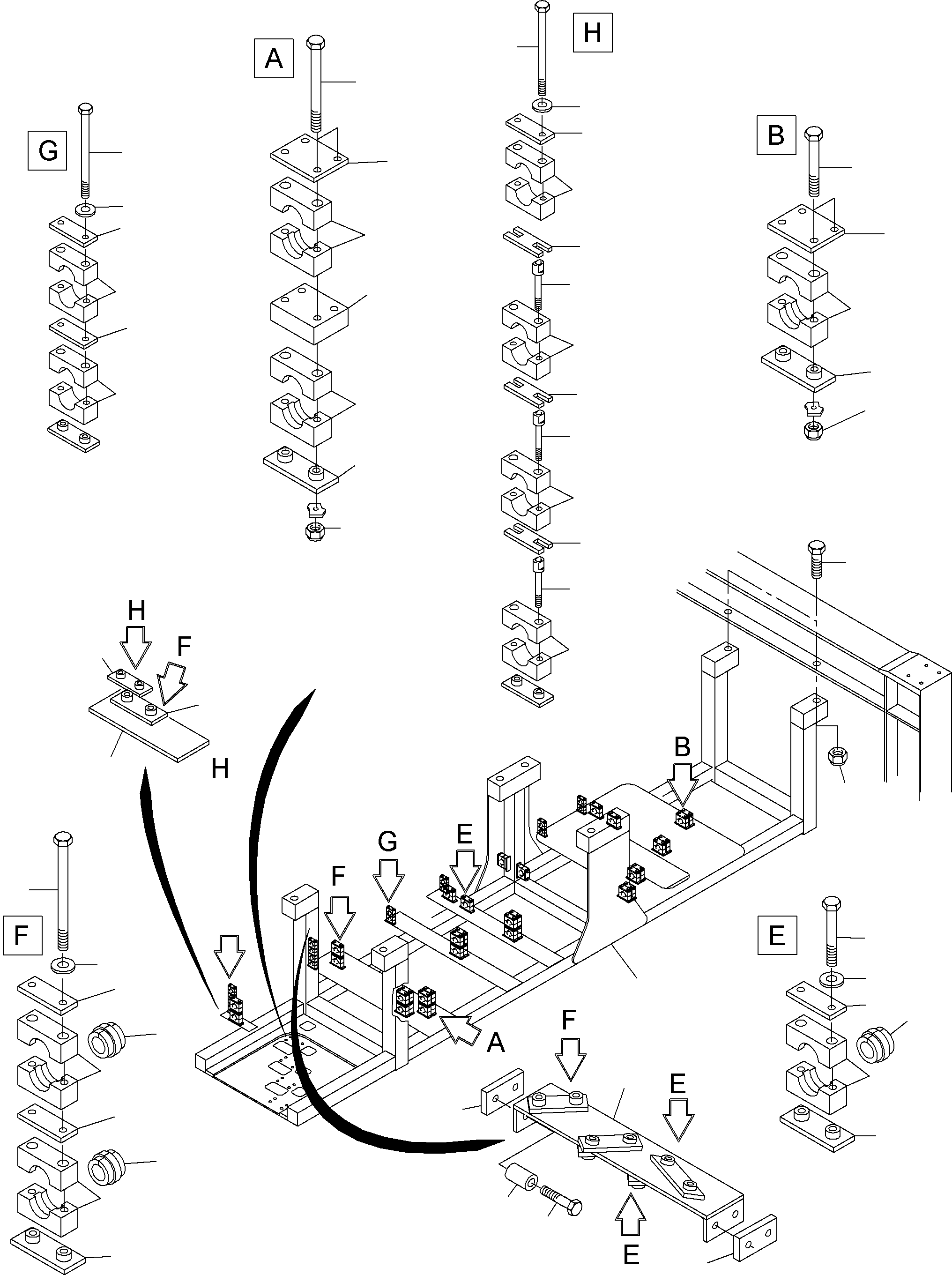

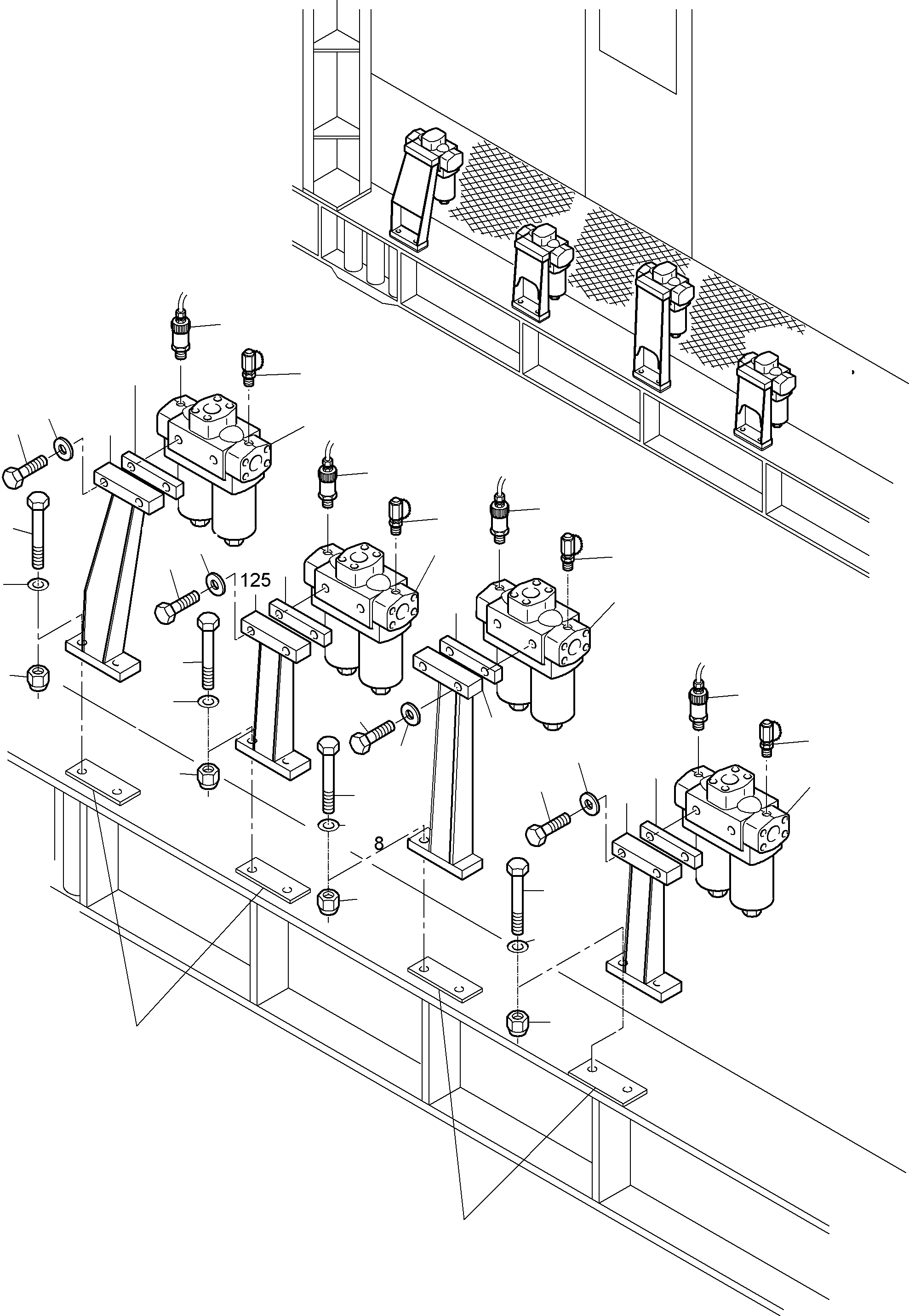

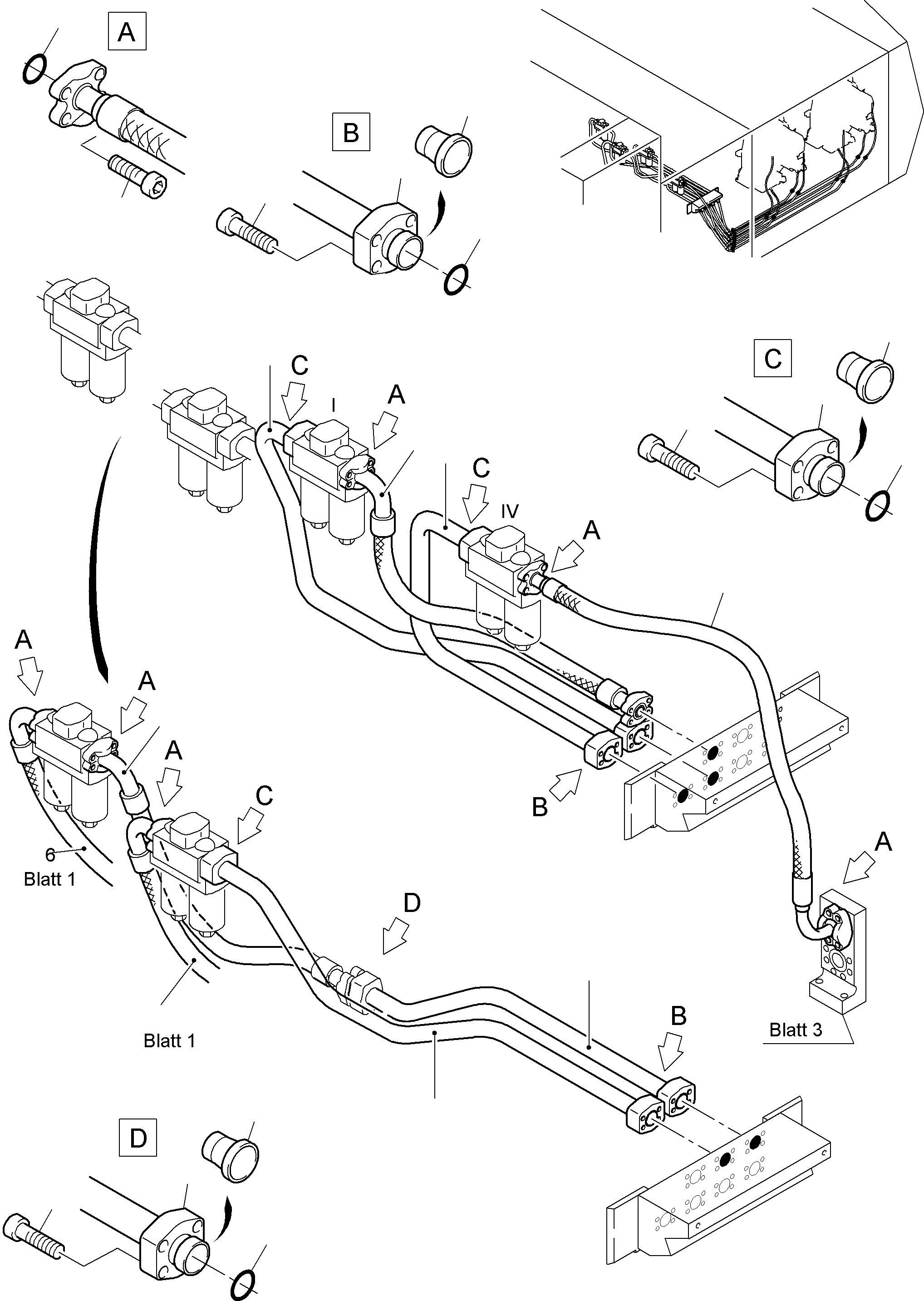

Diagram image 1 of 6

PC8000-1E S/N 12024

100 101 106 109 110 111 22 23 23 25 26 27 29 37 38 39 40 40 72 73 75 76 77 78 79 80 81 82 83 84 84 85 86 87 87 88 89 90 90 91 92 93 94 95 96 96 97 99

PC8000-1E S/N 12024

01 03 04 06 10 108 108 109 11 11 111 111 22 22 22 23 23 23 23 24 25 25 29 30 31 74 81

PC8000-1E S/N 12024

01 03 04 06 09 108 13 14 15 16 17 18 19 20 21 23 23 29 29 32 33 34 35 36 43 45 46 75 76

PC8000-1E S/N 12024

08 08 10 10 10 10 11 11 112 112 113 113 114 115 13 14 15 16 17 18 19 20 22 22 23 23 24 25 28 31 41 84 85 85 87

PC8000-1E S/N 12024

104 104 104 105 105 105 116 117 15 42 44 47 48 49 49 50 50 50 51 51 52 52 52 53 53 54 55 55 55 56 57 57 58 59 59 59 60 60 60 60 60 60 61 63 63 64 65 66 67 67 68 68 68 69 69 70 71

PC8000-1E S/N 12024

11 118 118 118 120 120 120 120 121 122 122 122 122 123 124 125 126 126 126 126 127 127 127 127 128 128 128 128 129 129 129 129 130 130 130 130 131 131 131 132 132 133 133 134 134 134 134 135 135 135 135 136 136 136 136

#	Part Number	Partname	Quantity	Reference
01	794 320 73	Pipe assy. Ш 65	1
03	794 322 73	Pipe assy. Ш 65	1
04	794 323 73	Pipe assy. Ш 65	1
06	796 725 73	Pipe assy.	1
08	940 418 40	Hose assy. DN 50x1980	2
09	940 344 40	Hose assy. DN 50x940	1
10	940 407 40	Hose assy. DN 50x1010	4
11	940 370 40	Hose assy. DN 50x2100	2
13	794 681 73	Pipe assy. Ш 65	1
14	794 682 73	Pipe assy. Ш 65	1
15	794 683 73	Pipe assy. Ш 65	1
16	793 829 73	Pipe assy. Ш 65	1
17	794 685 73	Pipe assy. Ш 65	1
18	794 686 73	Pipe assy. Ш 65	1
19	793 830 73	Pipe assy. Ш 65	1
20	794 688 73	Pipe assy. Ш 65	1
21	940 341 40	Hose assy. DN 50x830	1
22	504 448 98	Flange	28
23	385 243 40	Seal ring	52
24	504 449 98	Collar ring	9
25	504 461 98	Collar ring	19
26	912 534 40	Diffuser	1
27	302 554 99	Bolt	2
28	504 662 98	Nut	72
29	319 305 99	Bolt	92
30	319 309 99	Bolt	12
31	319 313 99	Bolt	36
32	940 339 40	Hose assy. DN 50x750	1
33	940 349 40	Hose assy. DN 50x1130	1
34	940 345 40	Hose assy. DN 50x1000	1
35	940 342 40	Hose assy. DN 50x885	1
36	940 340 40	Hose assy. DN 50x800	1
37	308 645 99	Bolt	2
38	316 211 99	Washer	14
39	334 695 99	Nut	18
40	912 533 40	Plate	2
41	319 323 99	Bolt	32
42	933 409 40	Frame	1
43	928 325 40	Intermediate plate	4
44	928 326 40	Intermediate plate	4
45	510 727 98	Resilient sleeve 21/40x75	16
46	516 430 98	Bolt	16
47	308 433 99	Bolt	16
48	505 891 98	Bolt	16
49	534 009 99	Weld on plate	8
50	504 446 98	Clamp set	24
51	334 600 99	Nut	32
52	502 965 98	Cover plate	8
53	502 961 98	Weld-on plate	8
54	534 002 99	Weld-on plate	6
55	502 371 98	Clamp set	24
56	512 053 98	Grommet	22
57	534 008 99	Cover plate	25
58	308 612 99	Bolt	26
59	534 001 99	Cover plate	7
60	504 817 98	Clamp set	14
61	927 169 40	Retainer	1
63	927 165 40	Plate	2
64	512 958 98	Resilient sleeve	4
65	308 782 99	Bolt	4
66	928 330 40	Retainer	1
67	504 682 98	Bolt	14
68	509 310 98	Locking plate	20
69	505 729 98	Grommet	2
70	509 308 98	Locking plate	7
71	307 785 99	Bolt	14
72	510 733 98	Resilient sleeve	2
73	308 321 99	Bolt	2
74	940 369 40	Hose assy. DN 50x2050	1
75	794 327 73	Pipe assy. Ш 65	1
76	794 328 73	Pipe assy. Ш 65	1
77	926 716 40	Manifold	2
78	934 802 40	Console	1
79	926 704 40	Plate	4
80	926 705 40	Plate	4
81	517 091 98	Bolt	32
82	510 740 98	Resilient sleeve	4
83	514 857 98	Bolt 80mm lg	4
83	514 092 98	Bolt 70mm lg	4
83	506 638 98	Bolt 90mm lg	4
84	334 695 99	Nut	18
85	509 064 98	Clamp set	3
86	504 957 98	Grommet	1
87	500 398 98	Cover plate	4
88	304 114 99	Bolt	2
89	500 399 98	Weld-on plate	1
90	950 003 40	Plug	2
91	950 002 40	Support plate	1
92	180 113 40	Plug	2
93	168 474 40	Plug	2
94	319 288 99	Bolt	16
95	356 209 40	Flange seal	4
96	517 675 98	Hose assy. DN 40x1200	2
97	304 315 99	Bolt	8
99	926 707 40	Base	4
100	930 398 40	Plate	2
101	930 397 40	Thread plate	1
104	504 586 98	Locking plate	14
105	504 585 98	Screw	28
106	940 367 40	Hose assy. DN50x1900	1
108	940 359 40	Hose assy. DN50x1470	2
109	940 354 40	Hose assy. DN50x1390	1
110	933 499 40	Support plate	1
111	950 001 40	Support plate	1
112	916 041 40	Hose retainer	1
113	916 040 40	Hose retainer	1
114	516 024 98	Grommet	2
115	308 643 99	Bolt	4
116	308 395 99	Bolt	8
117	510 536 98	Nut	8
118	502 811 98	Washer	8
120		H.P. filter	4	991-0244
121	926 783 40	Plate	1
122	308 414 99	Bolt	8
123	924 377 40	Filter bracket	1
124	924 378 40	Filter bracket	1
125	924 379 40	Filter bracket	2
126	515 812 98	Test coupling	4
127	516 637 98	Bolt	6
128	316 212 99	Washer	16
129	517 755 98	Nut	8
130	932 899 40	Measuring transducer 500bar	4
131	924 376 40	Plate	3
132	927 172 40	Plate	4
133	927 173 40	Plate	4
134	517 124 98	Lock washer	8
135	926 706 40	Plate	4
136	302 573 99	Bolt	8

Komatsu PC8000-1E S/N 12024 parts catalog PDF

PRESSURE LINES, MAIN PUMPS - H.P. FILTER (113-1893-5) in PC8000-1E S/N 12024. Diagram image and parts list.
