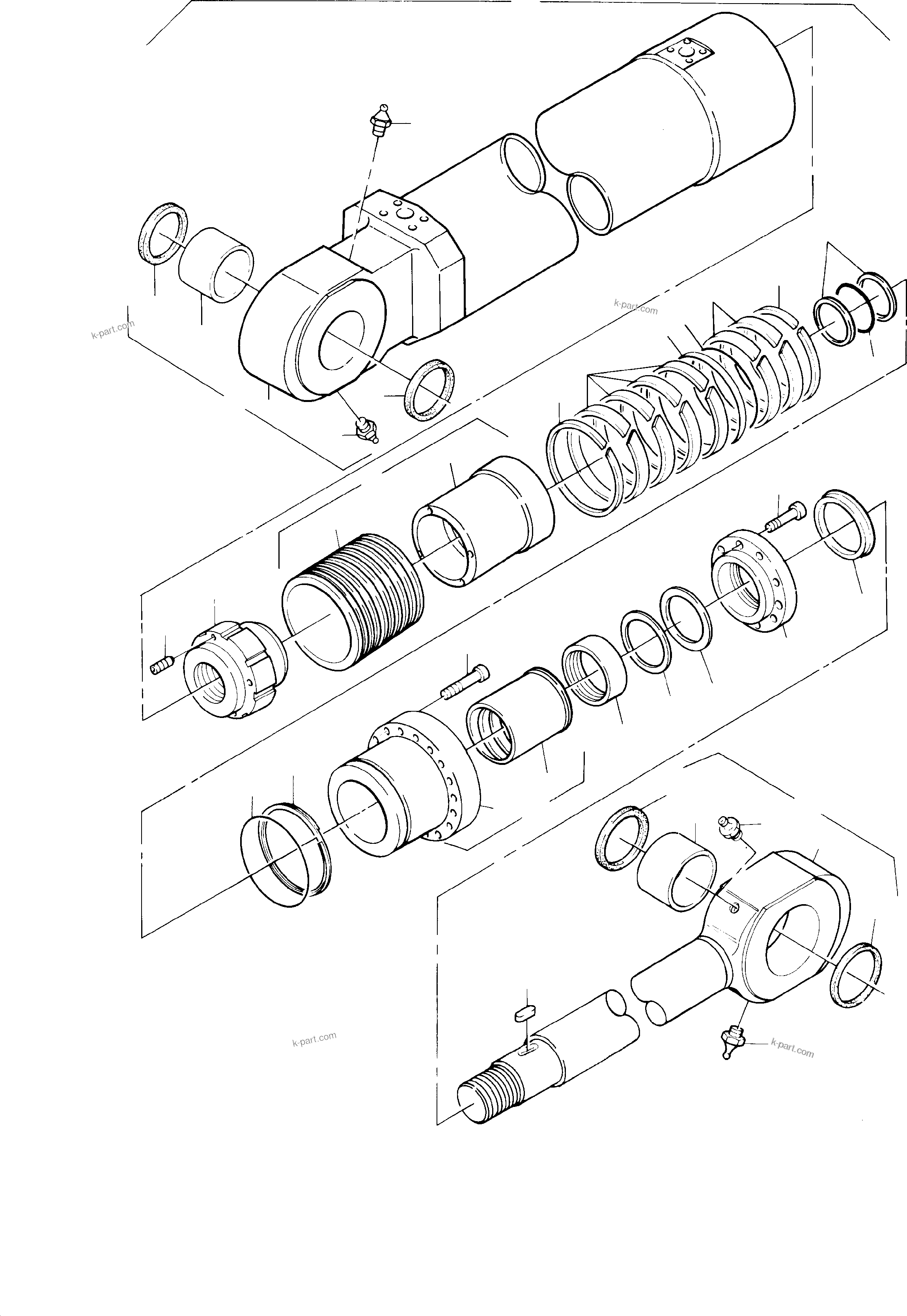

HYDRAULIK CYLINDER | PC8000-1E S/N 12024 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC8000-1E S/N 12024

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	659 005 40	Hydraulic cylinder, assy. fig nos: 02-33	1
?	761 473 73	Cylinder barrel, assy. fig-nos: 03-06	1
?		Cylinder These parts are not sold separately	1
?	395 628 40	Freeze-in bush	1
?	358 626 40	Stripper	2
?	004 860 98	Grease nipple	4
?	347 449 99	Thread pin	1
?	426 937 40	Groove nut	1
?	538 107 40	Piston, assy. fig nos: 10 and 11 (finish work after bush is installed)	-2
?	538 117 40	Piston	1
?	460 364 40	Piston bush	1
?	461 419 40	Piston guide strap 1315 lg.	2
?	461 293 40	Piston guide ring	6
?	461 292 40	Sealing element	1
?	461 296 40	O-ring	1
?	461 295 40	Support ring	2
?	256 248 40	O-ring	1
?	506 440 98	O-ring	1
?	461 294 40	Support ring	1
?	630 381 40	Sealing flange, assy. fig-nos: 21 and 22 (finish work after bush is installed)	1
?		Bush These parts are not sold separately	1
?	538 116 40	Bush	1
?	506 014 98	Bolt	24
?	461 288 40	Seal kit	1
?	460 368 40	Support ring	1
?	460 367 40	Cover	1
?	506 015 98	Bolt	12
?	461 290 40	Stripper	1
?	354 507 99	Feather key	1
?	761 472 73	Piston rod, assy. fig nos: 06, 31-33	1
?		Piston rod These parts are not sold separately	1
?	358 625 40	Stripper	2
?	395 627 40	Freeze-in bush	1
?	515 861 40	Shim 0,8	-2
?	696 623 73	Seal kit - piston fig nos: 12-17	-2
?	696 622 73	Seal kit - Sealing flange fig nos: 18, 19, 24 and 28	-2
