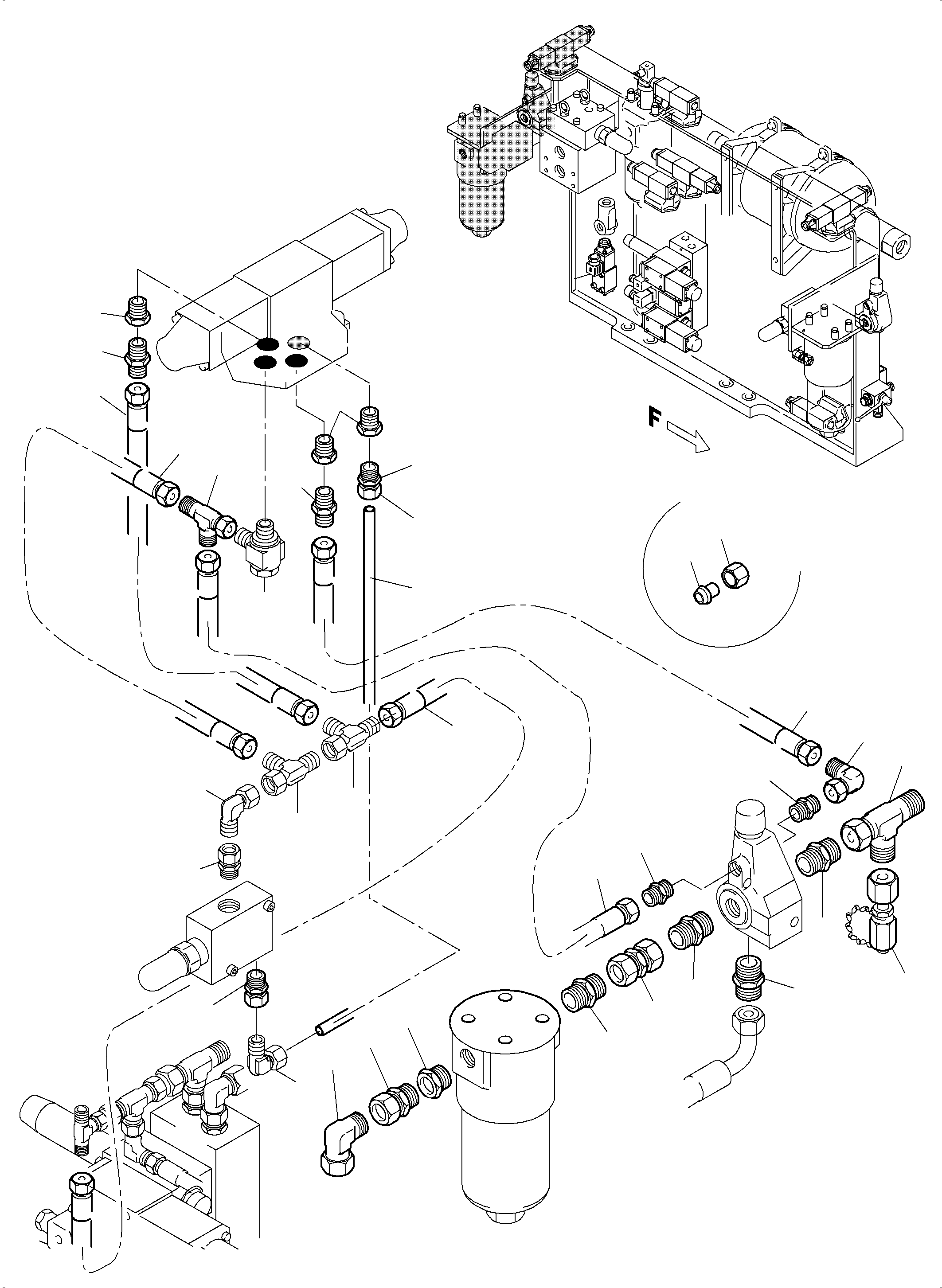

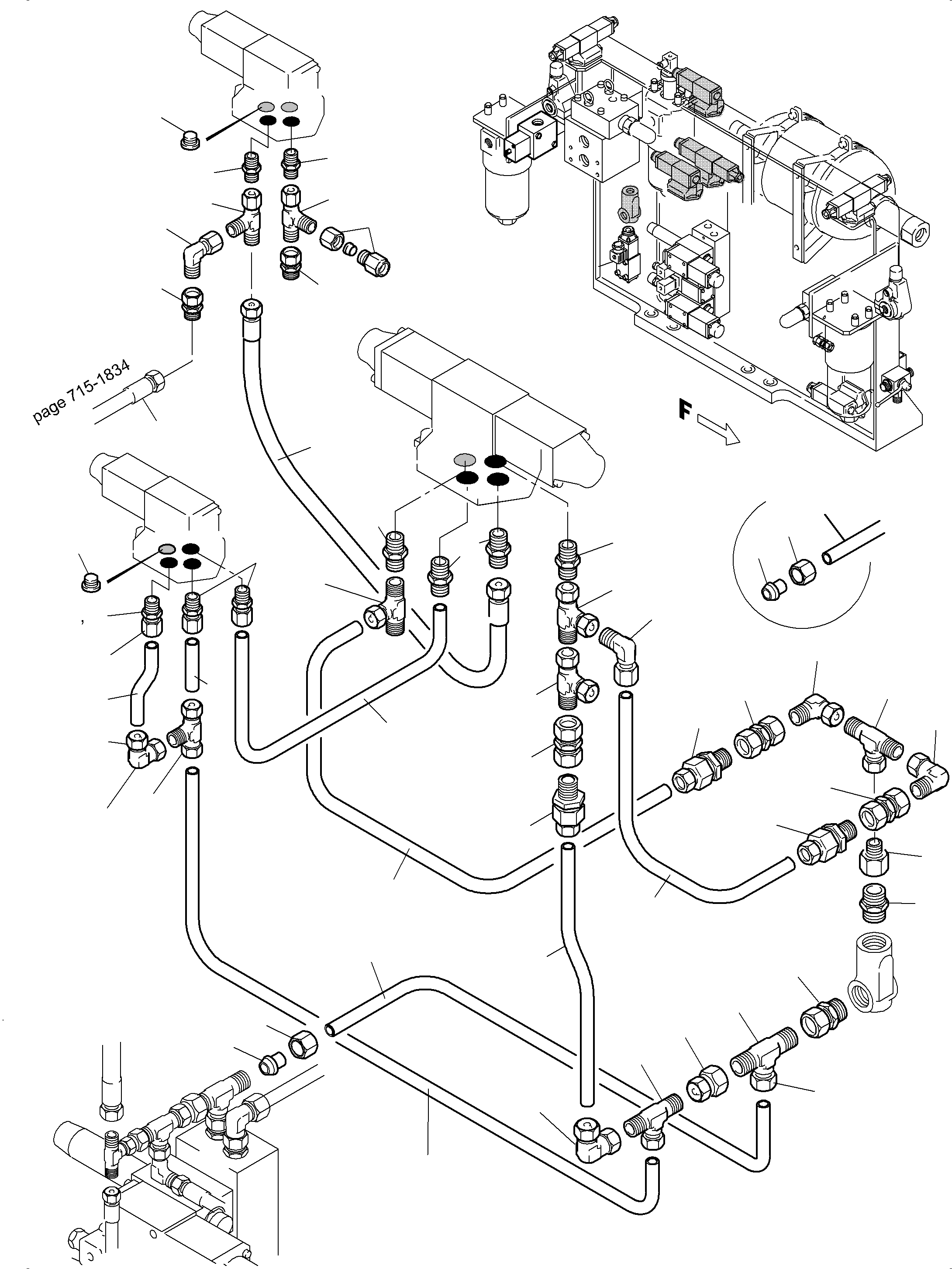

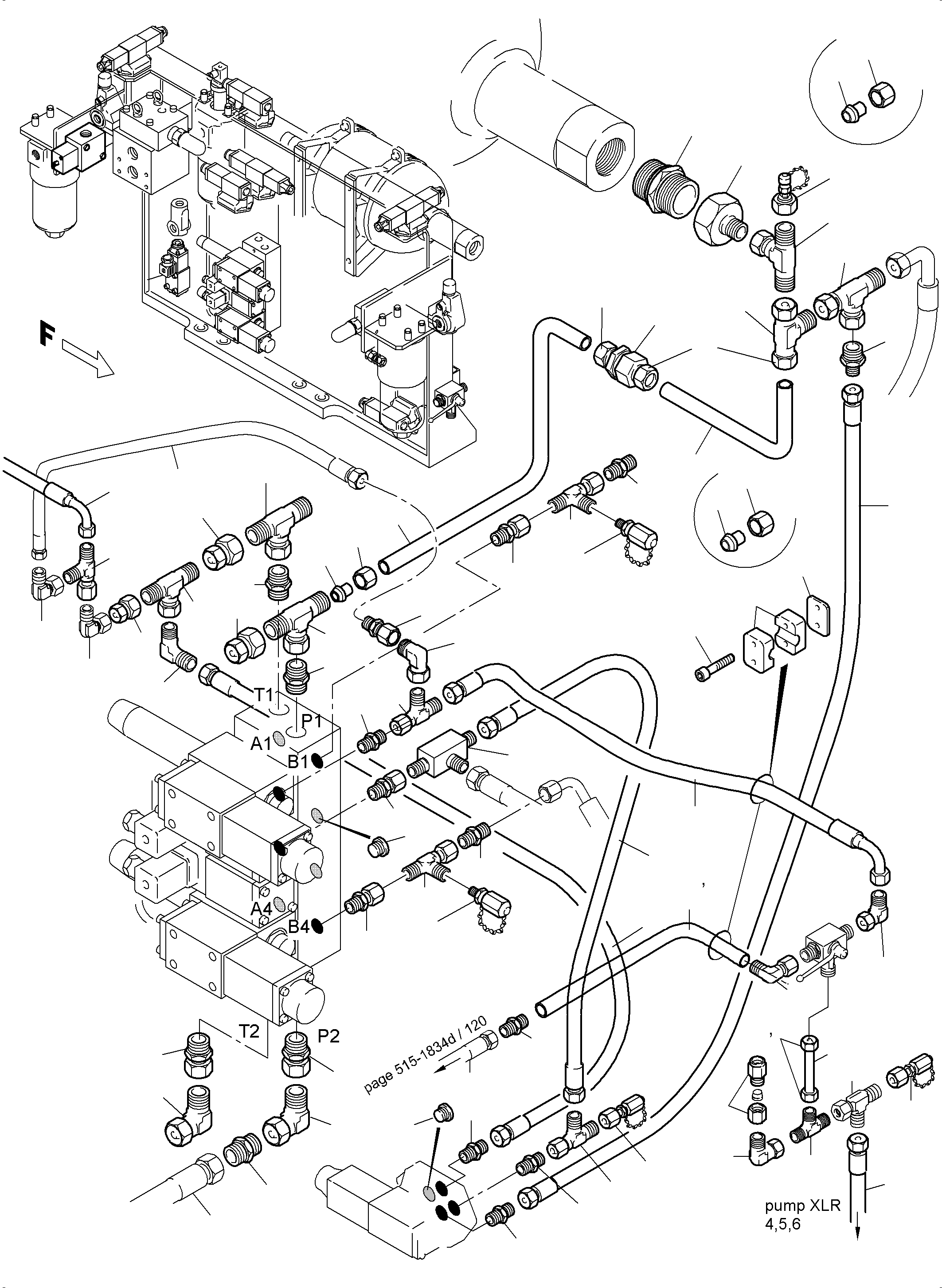

Diagram image 1 of 4

PC5500-6E S/N 15124

02 03 03 03 04 04 04 05 103 105 106 120 123 128 13 13 13 13 23 25 25 27 27 27 28 28 28 28 30 31 31 32 33 33 34 35 36 36 37 37 39 39 39 39 39 40 40 41 42 43 43 43 44 45 46 47 47 47 49 50 50 51 52 53 53 53 54 54 54 55 55 55 55 71 71 76 76 85 86 86 88 94 97 98 99

PC5500-6E S/N 15124

101 101 102 102 104 14 15 16 17 17 18 19 20 21 22 22 22 22 22 22 22 23 23 23 24 24 25 25 25 26 75 76 76 76 79 89

PC5500-6E S/N 15124

02 02 02 02 02 02 02 02 03 03 03 04 04 04 124 13 13 13 13 13 27 27 28 28 28 28 28 29 29 30 31 31 37 39 39 39 39 39 39 40 40 46 54 54 55 55 67 68 68 68 69 69 69 70 70 71 71 83 91

PC5500-6E S/N 15124

01 06 06 07 07 08 08 09 10 10 100 11 11 12 12 126 127 13 13 13 22 25 28 31 39 39 48 86 86 92

#	Part Number	Partname	Quantity
01	004 398 98	Coupling	1
02	215 424 99	Pipe Ш 12	-2
03	906 347 40	Olive	18
04	371 274 99	Union nut	18
05	215 811 99	Pipe Ш 15	-2
06	516 192 98	Socket	2
07	374 439 99	Socket	2
08	516 161 98	Socket	2
09	215 816 99	Pipe Ш 28	-2
10	906 350 40	Olive	2
11	371 278 99	Union nut	2
12	374 431 99	Socket	2
13	371 459 99	Socket	15
14	374 412 99	Socket	1
15	516 166 98	Socket	1
16	516 906 98	Socket	1
17	374 419 99	Socket	2
18	516 623 98	Socket	1
19	906 763 40	Union	1
20	374 439 99	Socket	1
21	004 684 98	Coupling	1
22	374 416 99	Socket	8
23	516 156 98	Socket	5
24	516 624 98	Socket	4
25	516 173 98	Socket	5
26	516 193 98	Socket	1
27	516 184 98	Socket	5
28	516 174 98	Socket	9
29	635 997 40	Socket	2
30	371 949 99	Test socket	4
31	255 694 40	Plug	7
32	516 185 98	Socket	1
33	516 159 98	Socket	2
34	634 298 40	Socket	1
35	374 437 99	Socket	1
36	374 436 99	Socket	2
37	516 175 98	Socket	3
39	516 157 98	Socket	13
40	551 987 40	Union	2
41	551 442 40	Valve	1
42	374 425 99	Socket	1
43	516 168 98	Socket	3
44	006 525 98	Coupling	1
45	215 424 99	Pipe Ш 12	-2
46	511 015 98	Socket	2
47	502 752 98	Coupling	3
48	371 948 99	Coupling	1
49	513 515 98	Coupling	1
50	576 472 40	Socket	2
51	343 873 40	Valve	1
52	551 456 40	Union	1
53	551 379 40	Union	2
54	906 348 40	Olive	6
55	371 275 99	Union nut	6
67	655 560 40	Throttle	1
68	655 426 40	Union	3
69	906 765 40	Valve	3
70	374 407 99	Socket	2
71	516 167 98	Socket	4
75	643 993 40	Hose assy. DN 08x400	1
76	516 307 98	Hose assy. DN 08x300	4
79	215 635 99	Pipe Ш 10	-2
83	514 993 98	Hose assy. DN 10x600	1
85	515 553 98	Hose assy. DN 10x700	1
86	515 750 98	Hose assy. DN 10x850	4
88	215 811 99	Pipe Ш 15	-2
89	516 317 98		1
91	215 811 99	Pipe Ш 15	-2
92	906 930 40	Union	1
94	515 357 98	Union	1
97	533 985 99	Clamp set	2
98	533 986 99	Weld on plate	2
99	320 214 99	Screw	4
100	255 171 40	Plug	1
101	371 273 99	Union nut	3
102	906 346 40	Olive	3
103	516 050 98	Hose assy. DN 10x1090	1
104	517 073 98	Union	1
105	911 433 40	Orifice D=1,00 mm	1
106	504 369 98	Socket	1
120	512 671 98	Hose assy. DN 10 x 5900	1
123	512 295 98	Hose assy. DN10 x 1080	1
124	513 837 98	Hose assy. DN16 x 5300	1
126	647 878 40	Hose assy. DN10 x 990	1
127	515 857 40	Hose assy. DN25 x 1100	1
128	592 040 40	Hose assy. DN20 x 5000	1

Komatsu PC5500-6E S/N 15124 parts catalog PDF

PIPES - CONTROL- AND FILTER PLATE, FRONT (715-1832f) in PC5500-6E S/N 15124. Diagram image and parts list.
