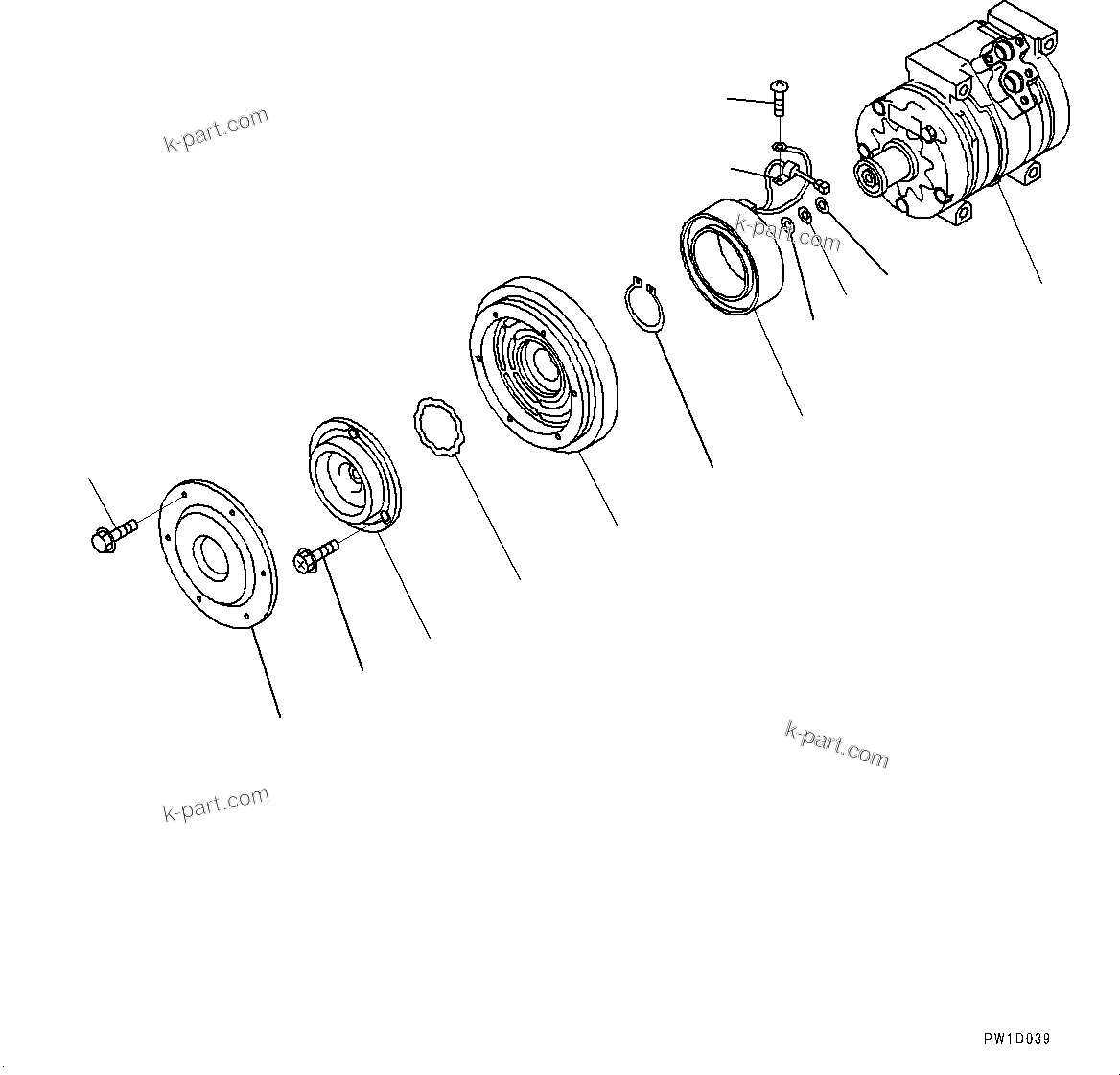

Komatsu parts book diagram for PC490LC-11 S/N 87001-UP: AIR CONDITIONER UNIT, COMPRESSOR(#85001-)

? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	20Y-810-1260	Compressor Assembly	1	SN: 85001-UP
	?	ND447220-4053	Compressor Assembly	1	SN: 85001-UP
	?	ND247300-4691	Clutch Assembly, Magnetic	1	SN: 85001-UP
	?	ND047310-1691	Stator	1	SN: 85001-UP
	?		Rotor	1	SN: 85001-UP \| SCC: C1
	?	ND047410-1570	Hub	1	SN: 85001-UP
	?	ND047410-1580	Hub	1	SN: 85001-UP
	?	ND949047-2950	Bolt	6	SN: 85001-UP
	?	ND047372-0660	Dust Cover	1	SN: 85001-UP
	?	ND949070-1360	Ring, Snap	1	SN: 85001-UP
	?	ND949070-0640	Ring, Snap	1	SN: 85001-UP
	?	ND949013-7480	Washer, T=0.1mm	1	SN: 85001-UP
	?	ND949013-7500	Washer, T=0.3mm	1	SN: 85001-UP
	?	ND949013-7510	Washer, T=0.5mm	1	SN: 85001-UP
	?	ND949048-0430	Bolt	1	SN: 85001-UP
	?	ND913100-5081	Screw	1	SN: 85001-UP
	?	ND146691-4470	Clamp	1	SN: 85001-UP
	?		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP
