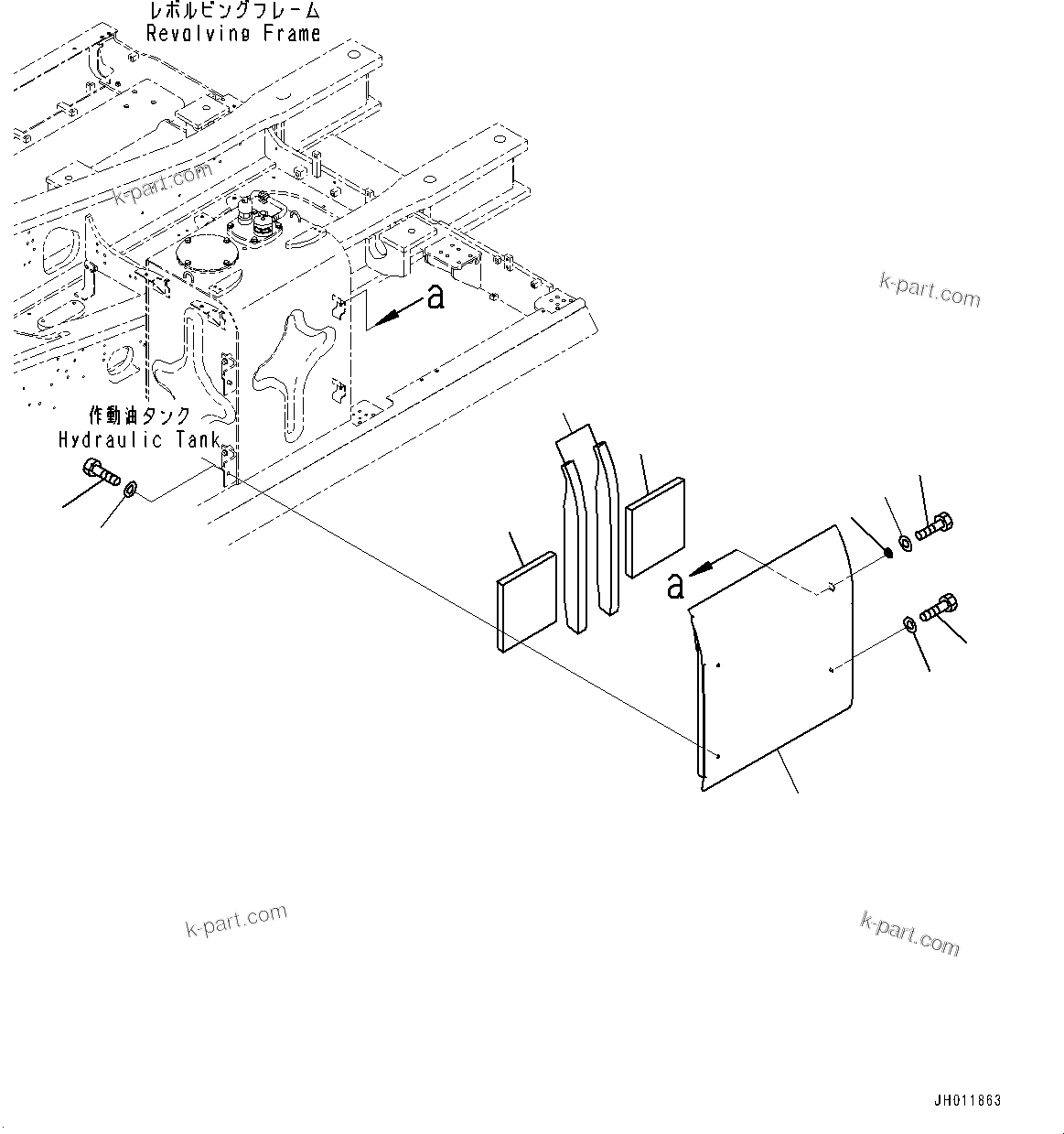

Komatsu parts book diagram for PC490LC-11 S/N 87001-UP: SIDE COVER L.H., COVER(#86079-)

? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	208-54-42852	Cover	1	SN: 86079-UP
	?		Cover	1	SN: 86079-UP \| SCC: C1
	?	208-54-42922	Sheet	2	SN: 86079-UP
	?	208-54-43310	Sheet	2	SN: 86079-UP
	?	203-54-62670	Collar	1	SN: 86079-UP
	?	01010-81230	Bolt	4	SN: 86079-UP
	?	01643-31232	Washer	4	SN: 86079-UP
	?		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP

Komatsu PC490LC-11 S/N 87001-UP parts catalog PDF

SIDE COVER L.H., COVER(#86079-) (M1130-005003) in PC490LC-11 S/N 87001-UP. Diagram image and parts list.
