PC490LC-11 S/N 87001-UP

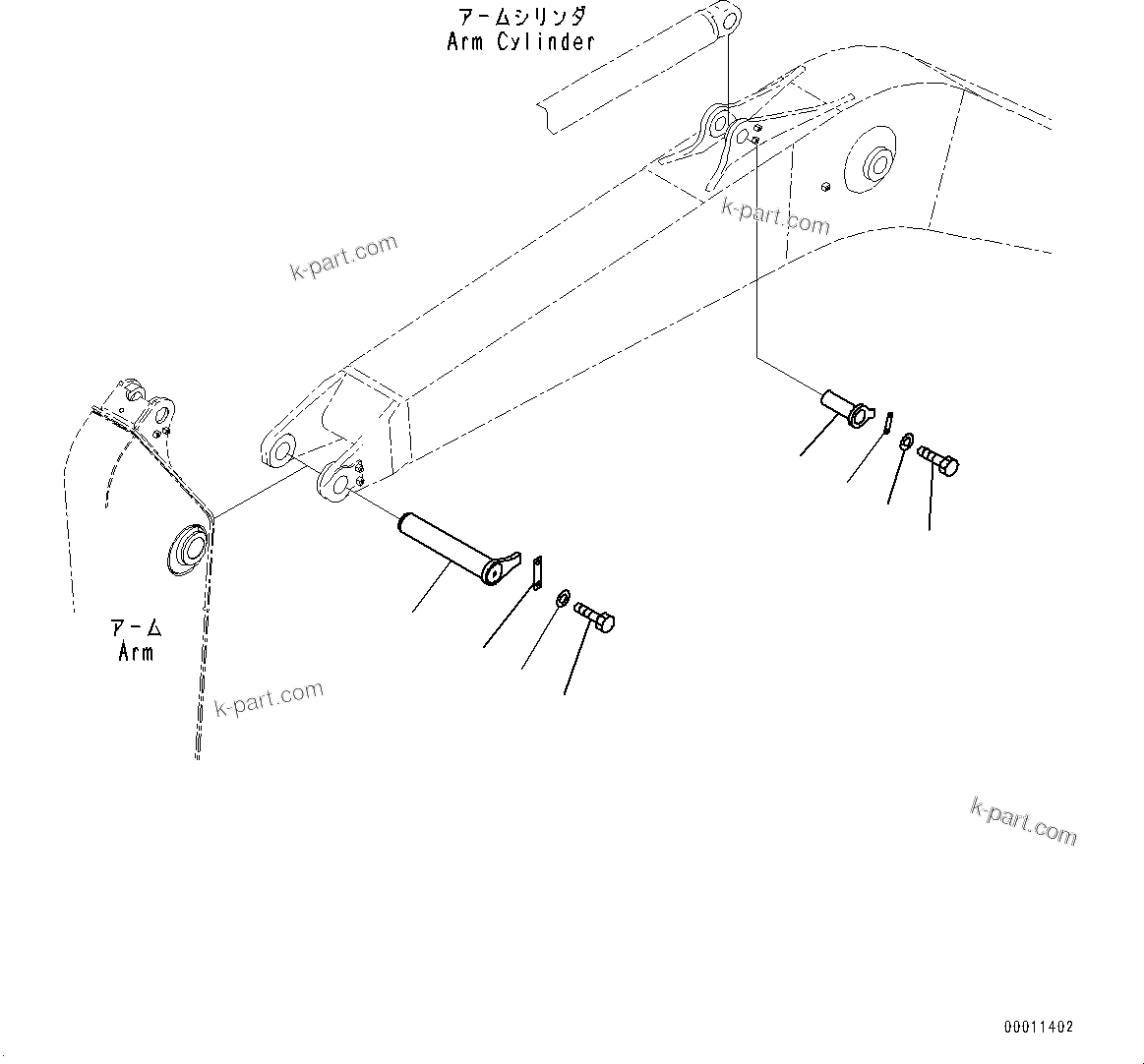

Komatsu parts book diagram for PC490LC-11 S/N 87001-UP: BOOM, TOP PIN AND BOTTOM PIN(#85001-)

? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	208-70-71311	Pin	1	SN: 85001-UP
	?	208-70-71670	Plate	1	SN: 85001-UP
	?	01010-82045	Bolt	2	SN: 85001-UP
	?	01643-32060	Washer	2	SN: 85001-UP
	?	208-70-61191	Pin	1	SN: 85001-UP
	?	205-70-66580	Plate	1	SN: 85001-UP
	?	01010-81235	Bolt	2	SN: 85001-UP
	?	01643-31232	Washer	2	SN: 85001-UP

Komatsu PC490LC-11 S/N 87001-UP parts catalog PDF

BOOM, TOP PIN AND BOTTOM PIN(#85001-) (T1110-011002) in PC490LC-11 S/N 87001-UP. Diagram image and parts list.
