HD785-7 S/N 37001-UP (-40 deg C Spec.)

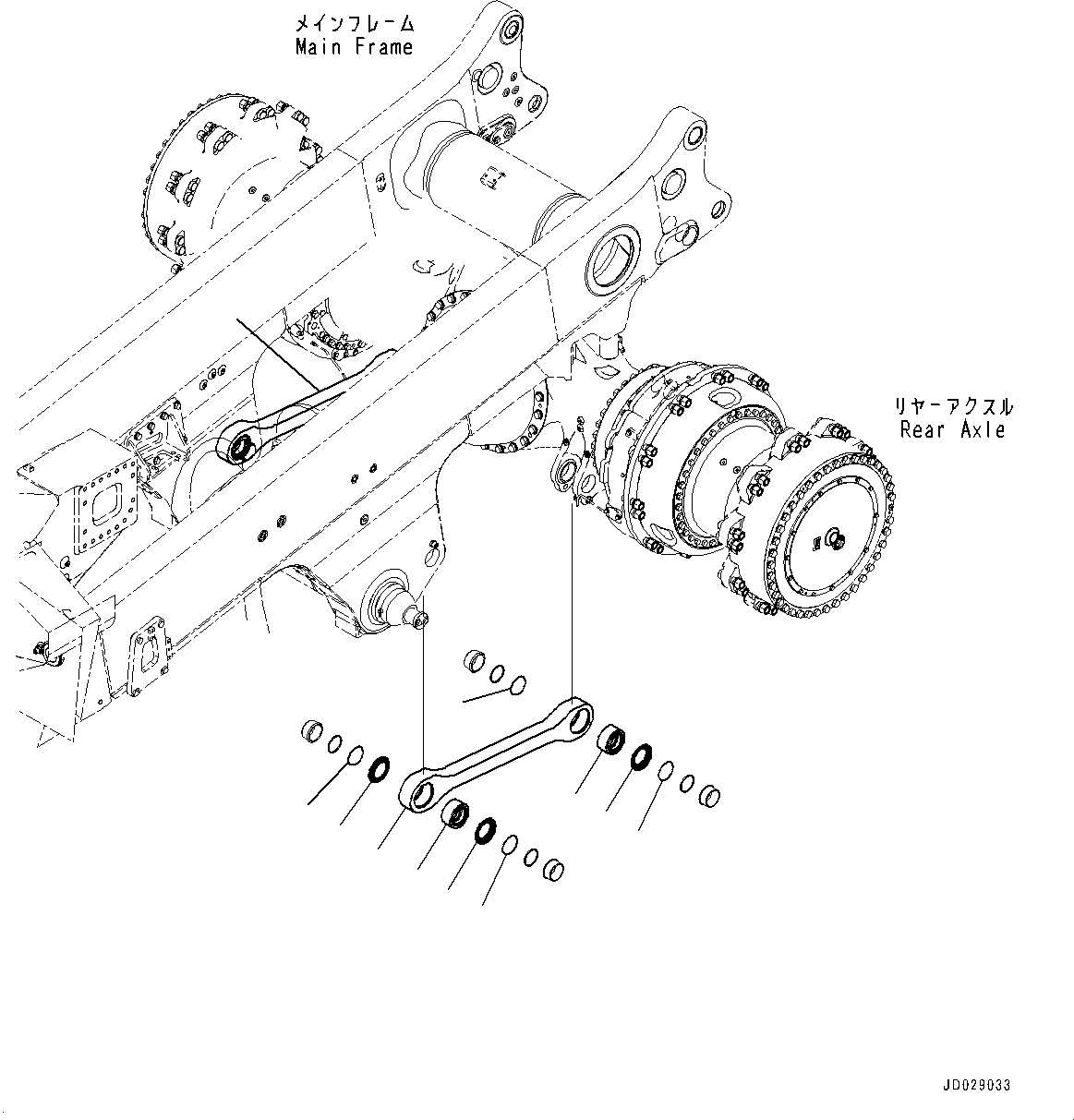

Komatsu parts book diagram for HD785-7 S/N 37001-UP (-40 deg C Spec.): REAR AXLE, ROD(#30001-)

3 3 2 3 4 2 3 4 1 1 4

	#	Part Number	Partname	Quantity	Options	Reference
	1	561-52-81310	Rod	4	SN: 30001-UP
	2	561-50-82311	Bushing	4	SN: 30615-UP
	\|$2	561-50-82310	Bushing	4	SN: 30001-30614 \| SCC: A2
	3	07000-52090	O-ring	8	SN: 30001-UP
	4	561-52-81141	Boot	8	SN: 30629-UP
	\|$5	561-52-81140	Boot	8	SN: 30001-30628
	\|$6		[A2]-The part specified in the line above can be used instead of this part.	-1	SN: UP

Komatsu HD785-7 S/N 37001-UP (-40 deg C Spec.) parts catalog PDF

REAR AXLE, ROD(#30001-) (F3500-011022) in HD785-7 S/N 37001-UP (-40 deg C Spec.). Diagram image and parts list.
