HD785-7 S/N 37001-UP (-40 deg C Spec.)

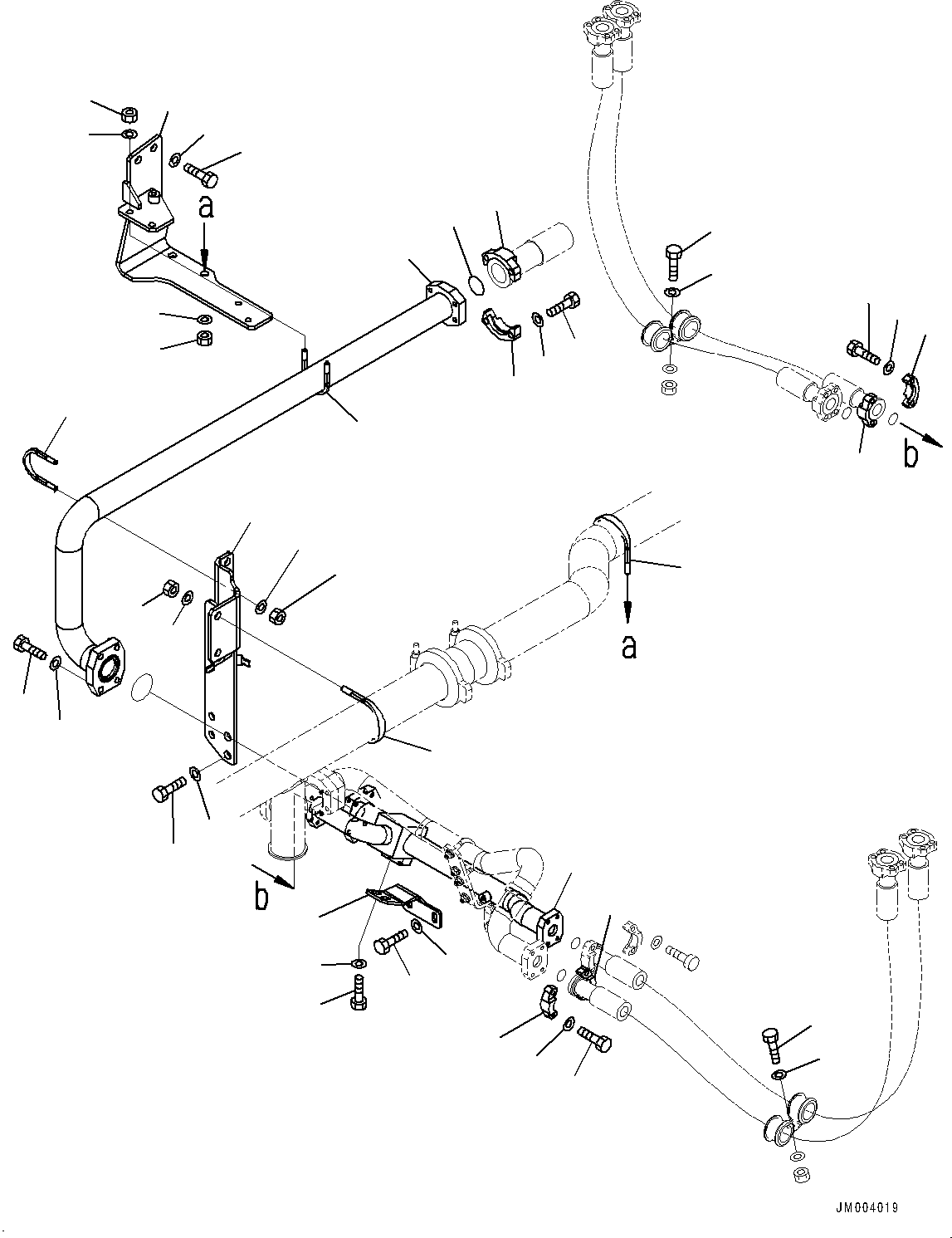

Komatsu parts book diagram for HD785-7 S/N 37001-UP (-40 deg C Spec.): BRAKE OIL COOLING HYDRAULIC PIPING, TRANSMISSION TO FRONT BRAKE (1/2)(#30001-)
2 4 1 10 11 21 13 14 18 20 19 15 17 16 12 13 14 18 20 19 15 17 16 3 7 8 9 23 24 24 23 6 9 8 7 2 7 7 22 13 14 23 24 5

Komatsu HD785-7 S/N 37001-UP (-40 deg C Spec.) parts catalog PDF

BRAKE OIL COOLING HYDRAULIC PIPING, TRANSMISSION TO FRONT BRAKE (1/2)(#30001-) (H3510-006003) in HD785-7 S/N 37001-UP (-40 deg C Spec.). Diagram image and parts list.
