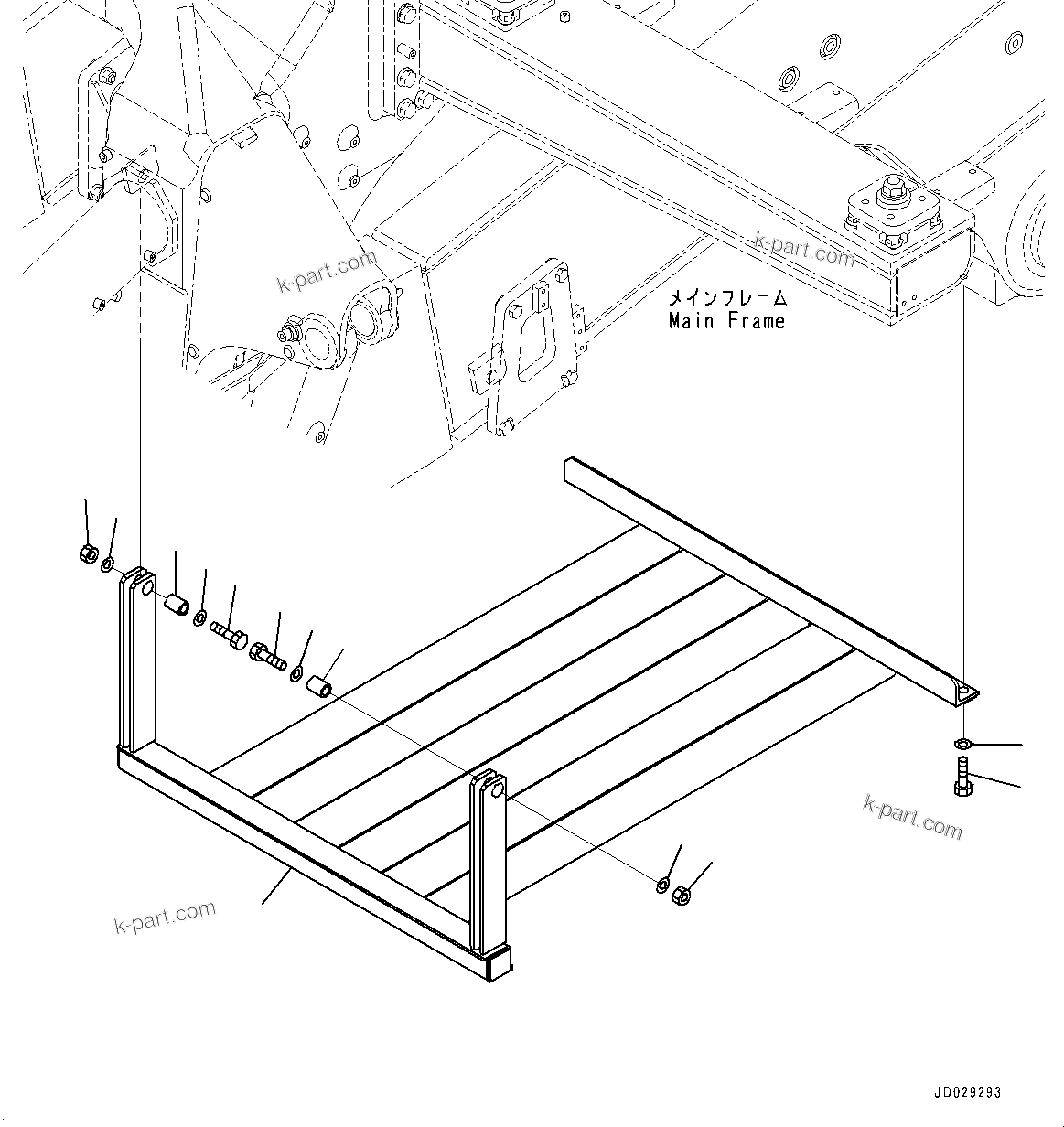

Komatsu parts book diagram for HD785-7 S/N 37001-UP (-40 deg C Spec.): TRANSMISSION UNDER GUARD, (#30001-31233)

? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	561-54-86212	Guard	1	SN: 30001-31233
	?	561-54-66250	Collar	2	SN: 30001-@
	?	01010-82080	Bolt	2	SN: 30001-@
	?	01580-12016	Nut	2	SN: 30001-@
	?	01643-32060	Washer	4	SN: 30001-@
	?	01010-82055	Bolt	2	SN: 30001-@
	?	01643-32060	Washer	2	SN: 30001-@

Komatsu HD785-7 S/N 37001-UP (-40 deg C Spec.) parts catalog PDF

TRANSMISSION UNDER GUARD, (#30001-31233) (M3820-001001) in HD785-7 S/N 37001-UP (-40 deg C Spec.). Diagram image and parts list.
