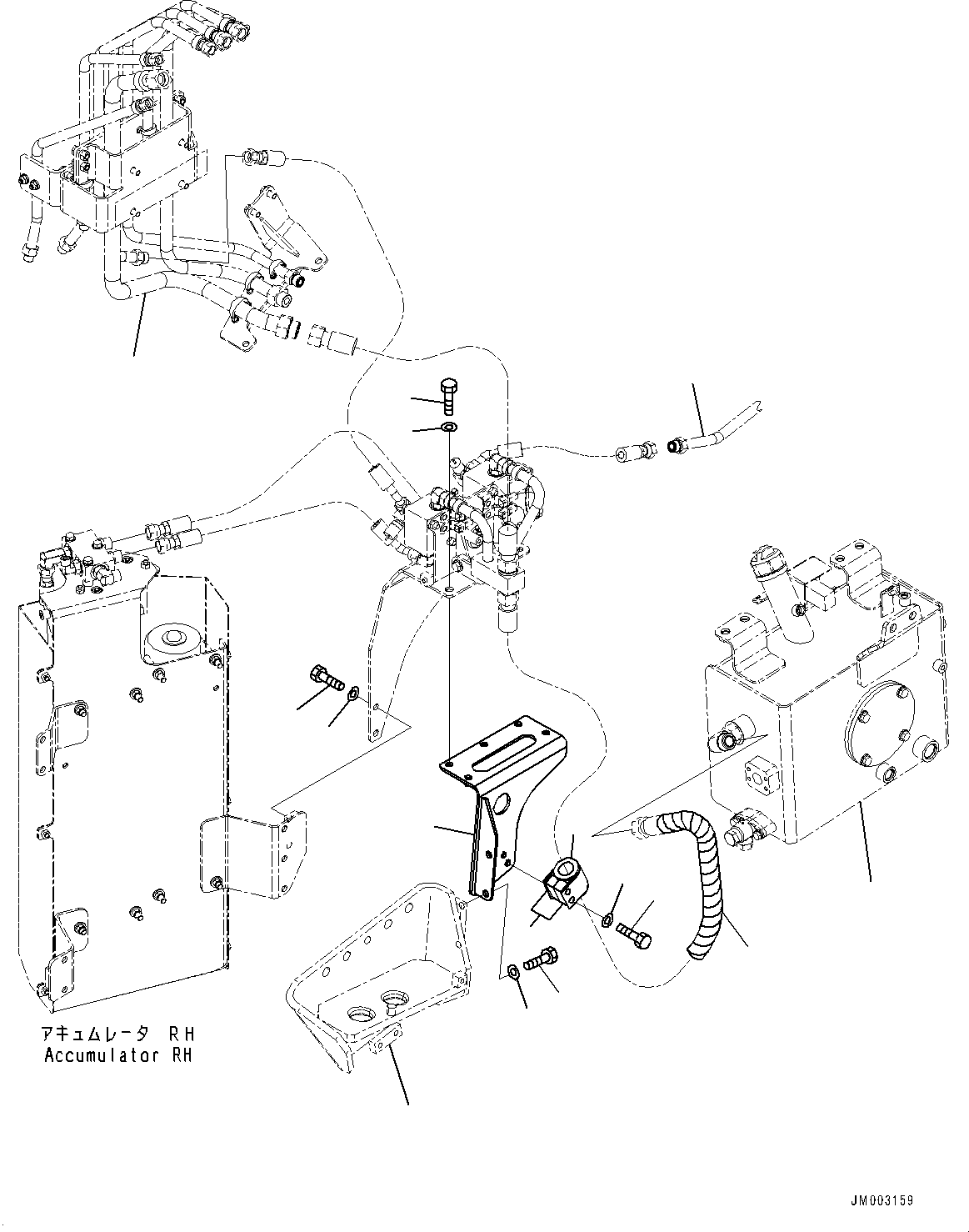

BRAKE PIPING, PROPORTIONAL VALVE PIPING(#30001-) | HD785-7 S/N 37001-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
1	01010-81230	Bolt	5	SN: 30001-UP
2	01643-31232	Washer	5	SN: 30001-UP
3	08210-02905	Tube, Spiral	1	SN: 30001-UP
4	561-43-84182	Bracket	1	SN: 30001-UP
5	01010-81225	Bolt	2	SN: 30001-UP
6	01643-31232	Washer	2	SN: 30001-UP
7	07094-11024	Clamp	2	SN: 30001-UP
8	07095-01034	Cushion	1	SN: 30001-UP
9	01010-81280	Bolt	2	SN: 30001-UP
10	01643-31232	Washer	2	SN: 30001-UP
11	561-43-83345	Tube(Brake Piping,Frame R.H.,With Anti-skid Brake System (ABS))	-1	SN: UP	H3540-046003
\|$11	561-43-83345	Tube(Brake Piping,Frame R.H.,With Anti-skid Brake System (ABS))	-1	SN: UP	H3540-048003
\|$12	561-43-83345	Tube(Brake Piping,Frame R.H.,With Anti-skid Brake System (ABS))	-1	SN: UP	H3540-031003
\|$13	561-43-83345	Tube(Brake Piping,Frame R.H.)	-1	SN: UP	H3540-025003
\|$14	561-43-83345	Tube(Brake Piping,Frame R.H.)	-1	SN: UP	H3540-036003
\|$15	561-43-83345	Tube(Brake Piping,Frame R.H.)	-1	SN: UP	H3540-028003
\|$16	561-43-83345	Tube(Brake Piping,Frame R.H.)	-1	SN: UP	H3540-030003
12	561-43-84323	Tube(Brake Piping,Frame R.H.)	-1	SN: UP	H3540-025005
\|$18	561-43-84323	Tube(Brake Piping,Frame R.H.)	-1	SN: UP	H3540-028005
\|$19	561-43-84323	Tube(Brake Piping,Frame R.H.)	-1	SN: UP	H3540-025005A
\|$20	561-43-84323	Tube(Brake Piping,Frame R.H.)	-1	SN: UP	H3540-028005A
\|$21	561-43-84323	Tube(Brake Piping,Frame R.H.)	-1	SN: UP	H3540-025005B
\|$22	561-43-84323	Tube(Brake Piping,Frame R.H.)	-1	SN: UP	H3540-028005B
\|$23	561-43-84323	Tube(Brake Piping,Frame R.H.,With Auto-greasing System)	-1	SN: UP	H3540-030005
\|$24	561-43-84323	Tube(Brake Piping,Frame R.H.,With Auto-greasing System)	-1	SN: UP	H3540-030005A
\|$25	561-43-84323	Tube(Brake Piping,Frame R.H.,With Auto-greasing System)	-1	SN: UP	H3540-036005B
\|$26	561-43-84323	Tube(Brake Piping,Frame R.H.,With Auto-greasing System)	-1	SN: UP	H3540-030005B
\|$27	561-43-84323	Tube(Brake Piping,Frame R.H.,With Anti-skid Brake System (ABS))	-1	SN: UP	H3540-046005
\|$28	561-43-84323	Tube(Brake Piping,Frame R.H.,With Anti-skid Brake System (ABS))	-1	SN: UP	H3540-031005
\|$29	561-43-84323	Tube(Brake Piping,Frame R.H.,With Anti-skid Brake System (ABS))	-1	SN: UP	H3540-046005A
\|$30	561-43-84323	Tube(Brake Piping,Frame R.H.,With Anti-skid Brake System (ABS))	-1	SN: UP	H3540-031005A
\|$31	561-43-84323	Tube(Brake Piping,Frame R.H.,With Anti-skid Brake System (ABS))	-1	SN: UP	H3540-046005B
\|$32	561-43-84323	Tube(Brake Piping,Frame R.H.,With Anti-skid Brake System (ABS))	-1	SN: UP	H3540-031005B
\|$33	561-43-84323	Tube(Brake Piping,Frame R.H.,With Auto-greasing System)	-1	SN: UP	H3540-036005
\|$34	561-43-84323	Tube(Brake Piping,Frame R.H.,With Auto-greasing System)	-1	SN: UP	H3540-036005A
13	561-43-84113	Tank(Brake Piping,Tank)	-1	SN: UP	H3540-031009
\|$36	561-43-84113	Tank(Brake Piping,Tank,With Anti-skid Brake System (ABS))	-1	SN: UP	H3540-046009
\|$37	561-43-84113	Tank(Brake Piping,Tank,With Oil Quick Charge)	-1	SN: UP	H3540-028009
\|$38	561-43-84113	Tank(Brake Piping,Tank)	-1	SN: UP	H3540-025009
14	561-46-82421	Bracket(Main Frame,Mounting Bracket,With Engine Oil Pan and Coolant Heater)	-1	SN: UP	J3100-364002
