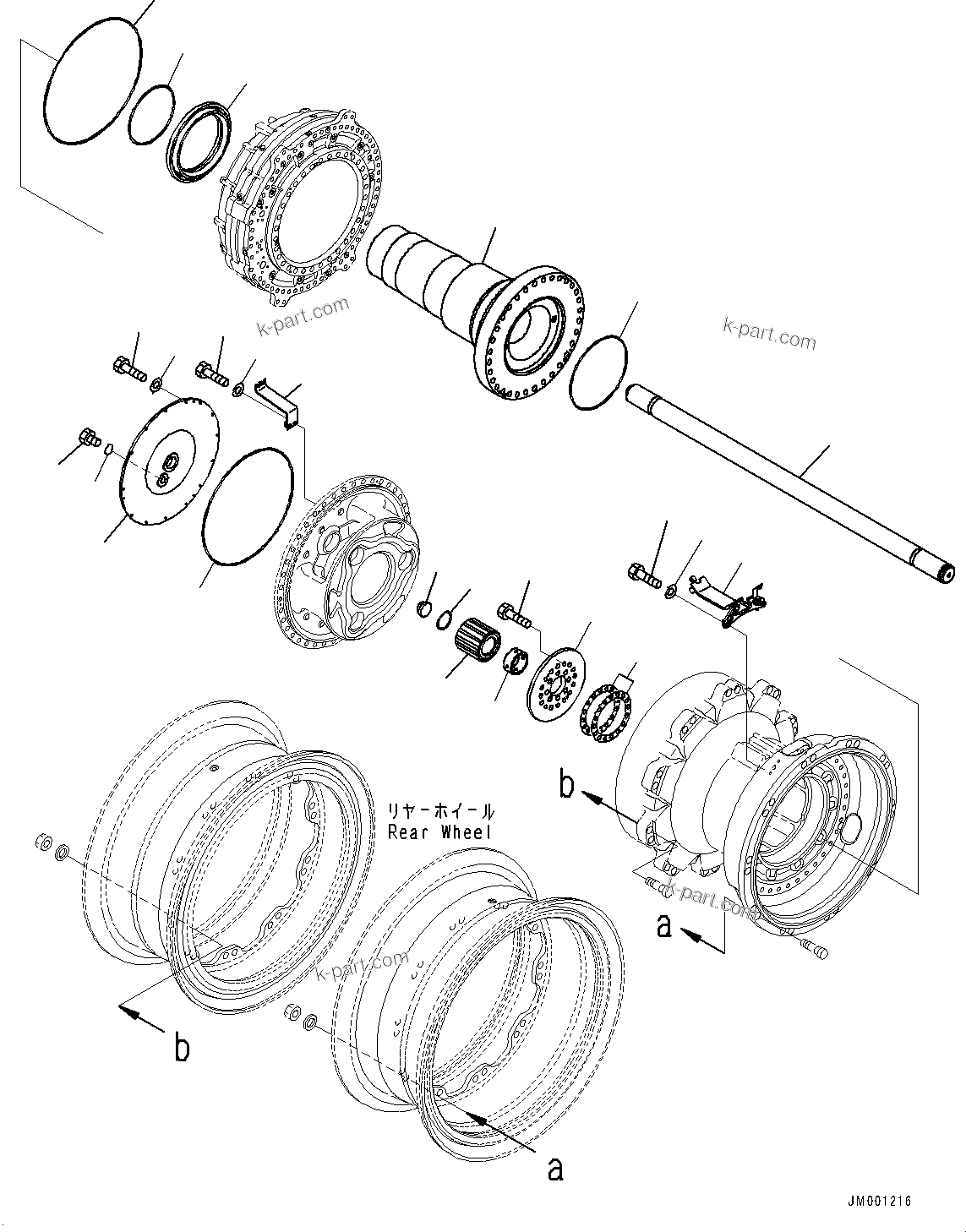

561-88-700A9
|
Axle Assembly, ABS,ASR |
1 |
SN: 33351-UP
|
|
|
|
? |
561-88-700A8
|
Axle Assembly, ABS,ASR |
1 |
SN: 32347-33350 | SCC: A2
|
|
|
|
? |
561-88-700A7
|
Axle Assembly, ABS,ASR |
1 |
SN: 32049-32346 | SCC: B1
|
|
|
|
? |
561-88-700A6
|
Axle Assembly, ABS,ASR |
1 |
SN: 30671-32048 | SCC: B1
|
|
|
|
? |
561-88-700A5
|
Axle Assembly, ABS,ASR |
1 |
SN: 30629-30670
|
|
|
|
? |
561-88-700A4
|
Axle Assembly, ABS,ASR |
1 |
SN: 30629-30650 | SCC: B1
|
|
|
|
? |
561-88-700A2
|
Axle Assembly, ABS,ASR |
1 |
SN: 30615-30628
|
|
|
|
? |
561-88-700A1
|
Axle Assembly, ABS,ASR |
1 |
SN: 30400-30614
|
|
|
|
? |
561-88-700A0
|
Axle Assembly, ABS,ASR |
1 |
SN: 30001-30399
|
|
|
|
? |
561-88-70307
|
Final Drive Assembly, ABS,ASR |
1 |
SN: 33351-UP
|
|
|
|
? |
561-88-70306
|
Final Drive Assembly, ABS,ASR |
1 |
SN: 32049-33350 | SCC: A2
|
|
|
|
? |
561-88-70305
|
Final Drive Assembly, ABS,ASR |
1 |
SN: 30671-32048 | SCC: B1
|
|
|
|
? |
561-88-70304
|
Final Drive Assembly, ABS,ASR |
1 |
SN: 30001-30670
|
|
|
|
? |
561-22-72143
|
Retainer |
1 |
SN: 33351-UP
|
|
|
|
? |
561-22-72142
|
Retainer,(561-22-72143(2),561-33-71934(2),561-33-00112(2)) |
1 |
SN: 31803-33350 | SCC: A4
|
|
|
|
? |
561-22-72141
|
Retainer |
1 |
SN: 30001-31802 | SCC: A2
|
|
|
|
? |
07000-A5320
|
O-ring, (Kit : K24) |
1 |
SN: 30001-UP
|
|
|
|
? |
561-22-72200
|
Shim Assembly, (Kit : K24) |
1 |
SN: 30001-UP
|
|
|
|
? |
|
Shim, T=1.0mm |
3 |
SN: 30001-UP | SCC: C1
|
|
|
|
? |
|
Shim, T=0.3mm |
3 |
SN: 30001-UP | SCC: C1
|
|
|
|
? |
|
Shim, T=0.2mm |
2 |
SN: 30001-UP | SCC: C1
|
|
|
|
? |
|
Shim, T=0.05mm |
1 |
SN: 30001-UP | SCC: C1
|
|
|
|
? |
561-22-72210
|
Retainer |
1 |
SN: 30001-UP
|
|
|
|
? |
01010-62090
|
Bolt |
16 |
SN: 30001-UP
|
|
|
|
? |
568-22-12442
|
Spacer |
1 |
SN: 30001-UP
|
|
|
|
? |
561-22-72420
|
Gear |
1 |
SN: 30001-UP
|
|
|
|
? |
561-22-62810
|
Ring, (Kit : K24) |
1 |
SN: 30001-UP
|
|
|
|
? |
561-22-72622
|
Cover |
1 |
SN: 30001-UP
|
|
|
|
? |
562-22-12630
|
Button, (Kit : K24) |
1 |
SN: 30001-UP
|
|
|
|
? |
426-13-19110
|
O-ring, (Kit : K24) |
1 |
SN: 30001-UP
|
|
|
|
? |
01010-61235
|
Bolt |
14 |
SN: 30001-UP
|
|
|
|
? |
01643-31232
|
Washer |
14 |
SN: 30001-UP
|
|
|
|
? |
07044-13620
|
Plug |
1 |
SN: 30001-UP
|
|
|
|
? |
07002-13634
|
O-ring, (Kit : K24) |
1 |
SN: 30001-UP
|
|
|
|
? |
561-22-72410
|
Shaft |
1 |
SN: 30001-UP
|
|
|
|
? |
561-22-73212
|
Tube |
1 |
SN: 30001-UP
|
|
|
|
? |
07000-15405
|
O-ring, (Kit : K24) |
1 |
SN: 30001-UP
|
|
|
|
? |
566-09-31110
|
O-ring |
1 |
SN: 30001-UP
|
|
|
|
? |
561-30-71621
|
Bracket |
1 |
SN: 30001-UP
|
|
|
|
? |
01010-81245
|
Bolt |
2 |
SN: 30001-UP
|
|
|
|
? |
01643-31232
|
Washer |
2 |
SN: 30001-UP
|
|
|
|
? |
561-22-72891
|
Cover |
1 |
SN: 30001-UP
|
|
|
|
? |
01010-61650
|
Bolt |
4 |
SN: 30001-UP
|
|
|
|
? |
01643-31645
|
Washer |
4 |
SN: 30001-UP
|
|
|
|
? |
|
[A2]-The part specified in the line above can be used instead of this part. |
-1 |
SN: UP
|
|
|
|
? |
|
[A4]-The part specified in the description column can be used instead of this part if it is used as a set. |
-1 |
SN: UP
|
|
|
|
? |
|
[B1]-This shows discontinued part. The part specified in the above line is supplied instead. |
-1 |
SN: UP
|
|
|
|
? |
|
[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly. |
-1 |
SN: UP
|
|
