PC450LC-8R S/N 79001-UP

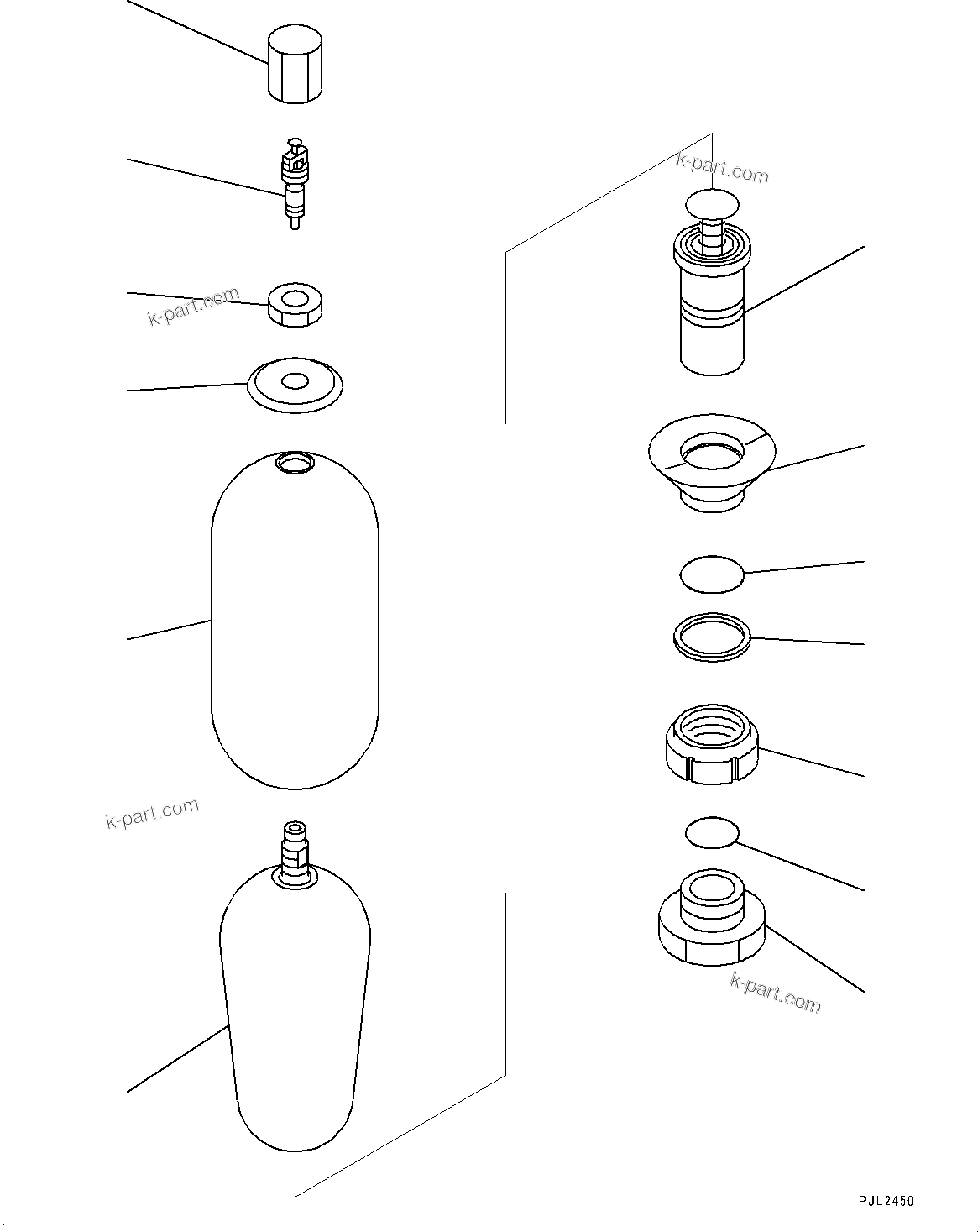

Komatsu parts book diagram for PC450LC-8R S/N 79001-UP: ACTUATOR PIPING, ACCUMULATOR(#75001-76546)

? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	20Y-970-6451	Accumulator Assembly	1	SN: 75341-@
	?	20Y-970-6450	Accumulator Assembly	1	SN: 75001-75340 \| SCC: A2
	?		Shell	1	SN: 75001-75340 \| SCC: C1
	?	NFEB3401 A1	Bleeder Assembly	1	SN: 75001-75340
	?	NFEB3026 A1	Bleeder	1	SN: 75001-75340
	?	NFEB4475 Z0	Core	1	SN: 75001-75340
	?		Nut	1	SN: 75001-75340 \| SCC: C1
	?		Cap	1	SN: 75001-75340 \| SCC: C1
	?	NFEB0427 Z0	Body Assembly	1	SN: 75001-75340
	?	NFEB4477 Z0	Ring	1	SN: 75001-75340
	?		O-ring	1	SN: 75001-75340 \| SCC: C1
	?		Ring, Back-up	1	SN: 75001-75340 \| SCC: C1
	?		Ring	1	SN: 75001-75340 \| SCC: C1
	?		Plate	1	SN: 75001-75340 \| SCC: C1
	?	205-970-5560	O-ring	1	SN: 75001-75340
	?		Bushing	1	SN: 75001-75340 \| SCC: C1
	?		[A2]-The part specified in the line above can be used instead of this part.	-1	SN: UP
	?		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP

Komatsu PC450LC-8R S/N 79001-UP parts catalog PDF

ACTUATOR PIPING, ACCUMULATOR(#75001-76546) (H1270-003006) in PC450LC-8R S/N 79001-UP. Diagram image and parts list.
