PC450LC-8R S/N 79001-UP

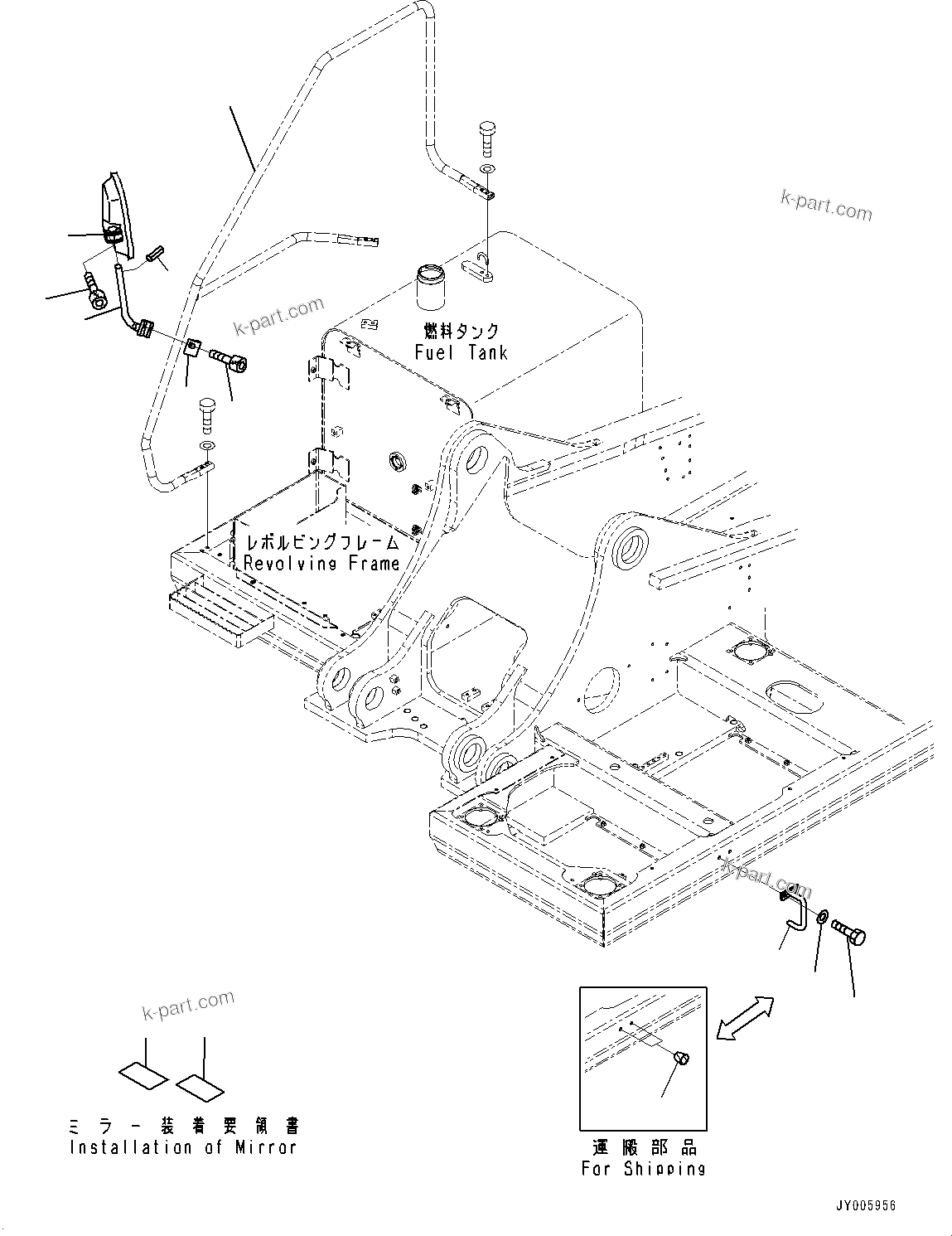

Komatsu parts book diagram for PC450LC-8R S/N 79001-UP: REARVIEW MIRROR R.H., (#75001-)

? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	207-54-71840	Support	1	SN: 75001-UP
	?	20Y-54-61630	Clamp	1	SN: 75001-UP
	?	01252-71030	Bolt	2	SN: 75001-UP
	?	421-54-25610	Mirror	1	SN: 75001-UP
	?	421-54-25620	Bushing	2	SN: 75001-UP
	?	421-54-25630	Holder	1	SN: 75001-UP
	?	421-54-25640	Lens	1	SN: 75001-UP
	?	421-54-25650	Frame	1	SN: 75001-UP
	?	421-54-25660	Screw	4	SN: 75001-UP
	?	04025-00632	Pin, Spring	1	SN: 75001-UP
	?	01252-70545	Bolt, Hexagon Socket Head	4	SN: 75001-UP
	?	208-98-75312	Plate	1	SN: 76213-UP
	?	208-98-75311	Plate	1	SN: 75001-76212 \| SCC: A2
	?	209-98-77220	Plate	1	SN: 75001-UP
	?	207-54-66120	Grip	1	SN: 75001-UP
	?	01010-81225	Bolt	2	SN: 75001-UP
	?	01643-31232	Washer	2	SN: 75001-UP
	?	07049-01215	Plug, Cork	2	SN: 75001-UP
	?		[A2]-The part specified in the line above can be used instead of this part.	-1	SN: UP

Komatsu PC450LC-8R S/N 79001-UP parts catalog PDF

REARVIEW MIRROR R.H., (#75001-) (M1420-002001) in PC450LC-8R S/N 79001-UP. Diagram image and parts list.
