PC350LC-8M0 S/N 85001-UP

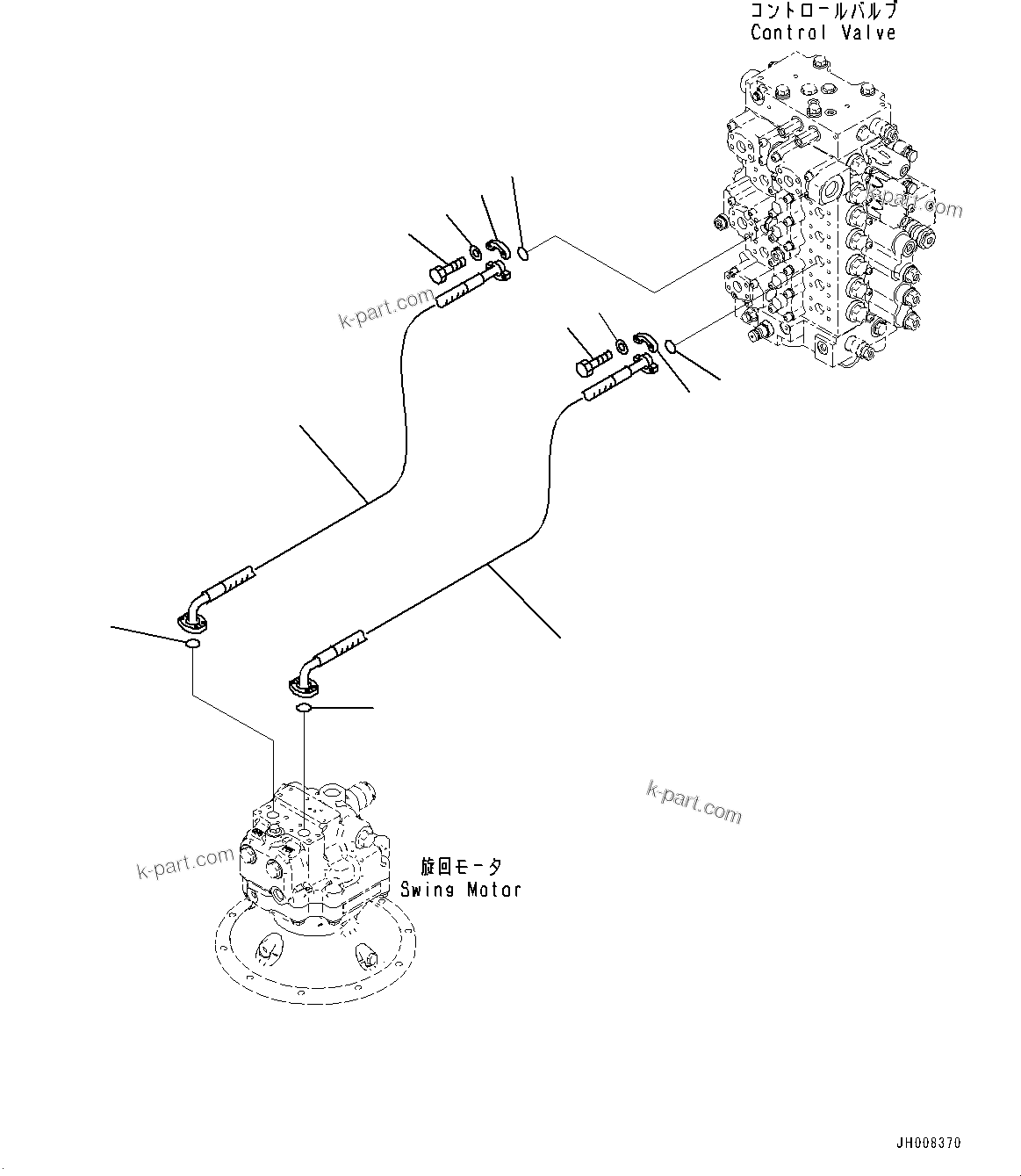

Komatsu parts book diagram for PC350LC-8M0 S/N 85001-UP: SWING PIPING, (#80001-)

? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	07098-01009	Hose, Flange Type	2	SN: 80001-UP
	?	07000-13032	O-ring	4	SN: 80001-UP
	?	07371-31049	Flange, Split	8	SN: 80001-UP
	?	07372-21035	Bolt	16	SN: 80001-UP
	?	01643-51032	Washer	16	SN: 80001-UP

Komatsu PC350LC-8M0 S/N 85001-UP parts catalog PDF

SWING PIPING, (#80001-) (H1340-002001) in PC350LC-8M0 S/N 85001-UP. Diagram image and parts list.
