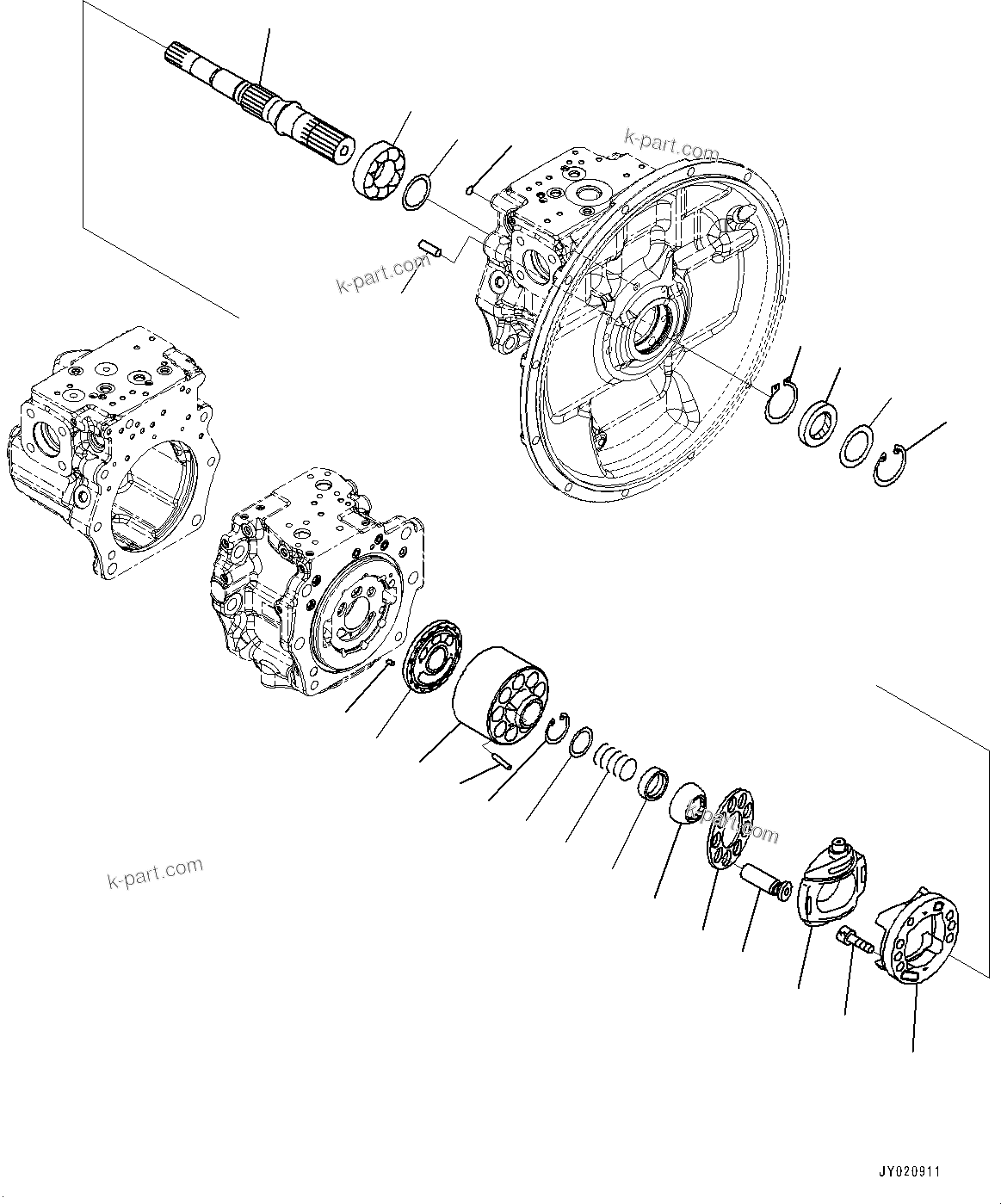

708-2G-00183
|
Hydraulic Pump |
1 |
SN: 82610-UP
|
|
|
|
? |
|
Pump Subassembly |
1 |
SN: 83605-UP | SCC: C1
|
|
|
|
? |
|
Pump Subassembly |
1 |
SN: 82610-83604 | SCC: C1
|
|
|
|
? |
708-2G-12640
|
Shaft, Front |
1 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
708-2G-12252
|
Bearing, (Kit : K01) |
1 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
708-2G-05010
|
Washer Kit, (Kit : K01) |
1 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
|
Washer, T=3.0mm, (Kit : K01) |
1 |
SN: 82610-UP | SCC: C1
|
|
|
|
? |
|
Washer, T=3.1mm, (Kit : K01) |
1 |
SN: 82610-UP | SCC: C1
|
|
|
|
? |
|
Washer, T=3.2mm, (Kit : K01) |
1 |
SN: 82610-UP | SCC: C1
|
|
|
|
? |
708-1F-12270
|
Ring, Snap |
1 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
708-2G-12230
|
Seal, Oil, (Kit : K01) |
1 |
SN: 82610-UP
|
|
|
|
? |
708-8H-32160
|
Spacer |
1 |
SN: 82610-UP
|
|
|
|
? |
04065-07825
|
Ring, Snap |
1 |
SN: 82610-UP
|
|
|
|
? |
708-2G-04710
|
Cylinder Block Assembly, Front, (Kit : K01) |
1 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
|
Block, Cylinder, (Kit : K01) |
1 |
SN: 82610-UP | SCC: C1
|
|
|
|
? |
|
Plate, Valve, (Kit : K01) |
1 |
SN: 82610-UP | SCC: C1
|
|
|
|
? |
708-18-13230
|
Pin |
1 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
04065-05520
|
Ring, Snap |
1 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
708-2G-13131
|
Seat |
1 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
708-2G-13152
|
Spring |
1 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
708-2G-13141
|
Seat |
1 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
708-2G-13510
|
Guide, Retainer, (Kit : K01) |
1 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
708-2H-23360
|
Pin |
3 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
708-2G-13341
|
Retainer, Shoe, (Kit : K01) |
1 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
708-2G-13810
|
Piston Subassembly, (Kit : K01) |
9 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
708-2G-04670
|
Cradle Subassembly, (Kit : K01) |
1 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
|
Cradle, (Kit : K01) |
1 |
SN: 82610-UP | SCC: C1
|
|
|
|
? |
|
Cam, (Kit : K01) |
1 |
SN: 82610-UP | SCC: C1
|
|
|
|
? |
04020-01434
|
Pin, Dowel |
1 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
07000-B1009
|
O-ring, (Kit : K01) |
1 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
01252-61230
|
Bolt, Hexagon Socket Head |
6 |
SN: 82610-UP | SCC: C2
|
|
|
|
? |
|
[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly. |
-1 |
SN: UP
|
|
|
|
? |
|
[C2]-This part is supplied for authorized Komatsu distributors only. It cannot be supplied as an individual part. It is supplied as an assembly. |
-1 |
SN: UP
|
|
