PC210LCI-11E0 S/N 600001-UP

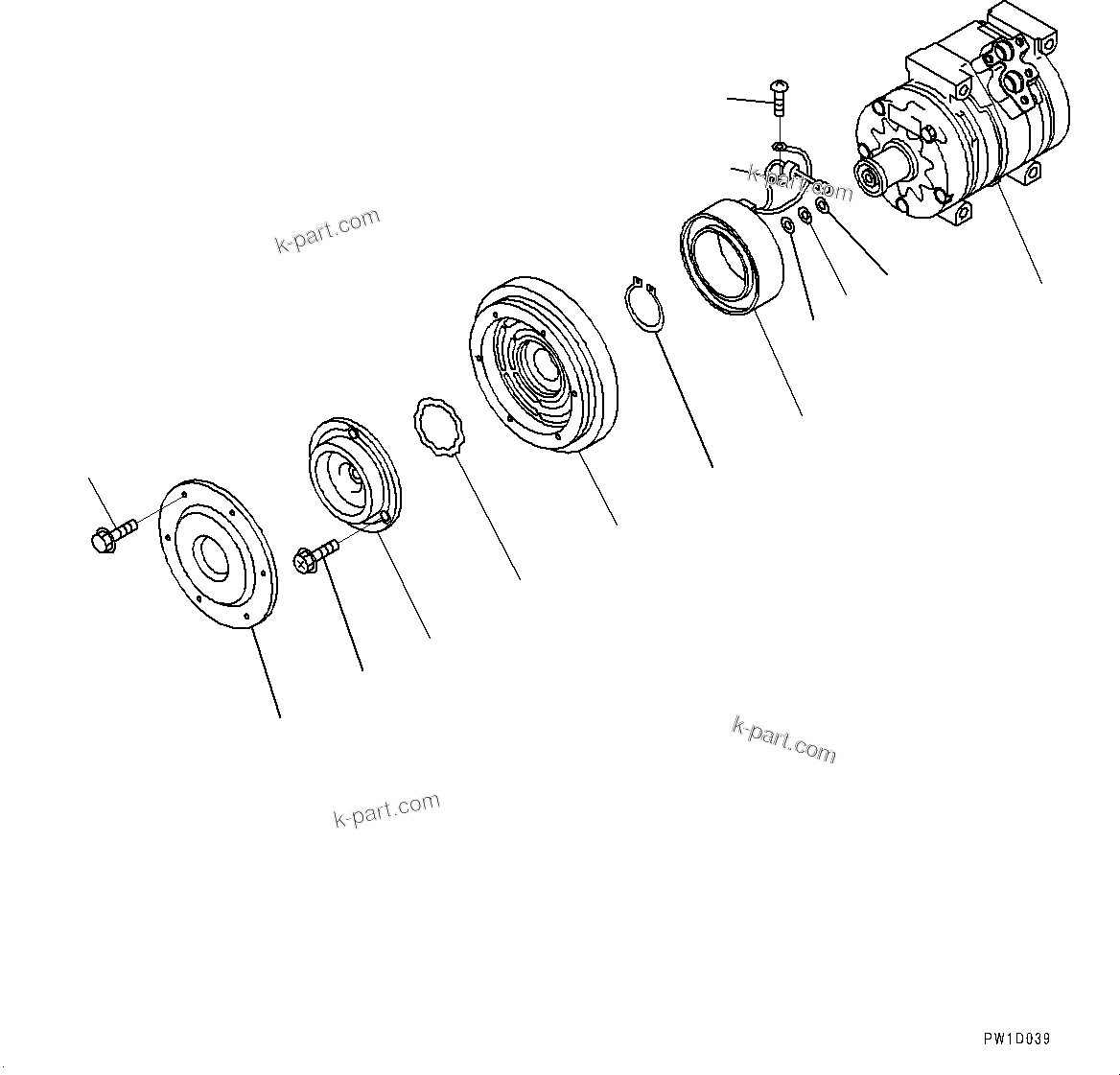

Komatsu parts book diagram for PC210LCI-11E0 S/N 600001-UP: AIR CONDITIONER, COMPRESSOR(#508570-)

? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	22P-979-2150	Compressor Assembly	1	SN: 508570-UP
	?	ND447220-4051	Compressor Assembly	1	SN: 508570-UP
	?	ND247400-0380	Clutch Assembly, Magnetic	1	SN: 508570-UP
	?	ND147310-4200	Stator	1	SN: 508570-UP
	?		Rotor	1	SN: 508570-UP \| SCC: C1
	?	ND047410-1570	Hub	1	SN: 508570-UP
	?	ND047410-1580	Hub	1	SN: 508570-UP
	?	ND949047-2950	Bolt	6	SN: 508570-UP
	?	ND047372-0660	Dust Cover	1	SN: 508570-UP
	?	ND949070-1360	Ring, Snap	1	SN: 508570-UP
	?	ND949070-0640	Ring, Snap	1	SN: 508570-UP
	?	ND949070-1390	Ring Assembly	1	SN: 508570-UP
	?	ND949013-7480	Washer, T=0.1mm	1	SN: 508570-UP
	?	ND949013-7500	Washer, T=0.3mm	1	SN: 508570-UP
	?	ND949013-7510	Washer, T=0.5mm	1	SN: 508570-UP
	?	ND949048-0430	Bolt	1	SN: 508570-UP
	?	ND91310-05081	Screw	1	SN: 508570-UP
	?	ND146691-4470	Clamp	1	SN: 508570-UP
	?		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP

Komatsu PC210LCI-11E0 S/N 600001-UP parts catalog PDF

AIR CONDITIONER, COMPRESSOR(#508570-) (K0700-003001) in PC210LCI-11E0 S/N 600001-UP. Diagram image and parts list.
