PC290LC-8 S/N 32001-UP

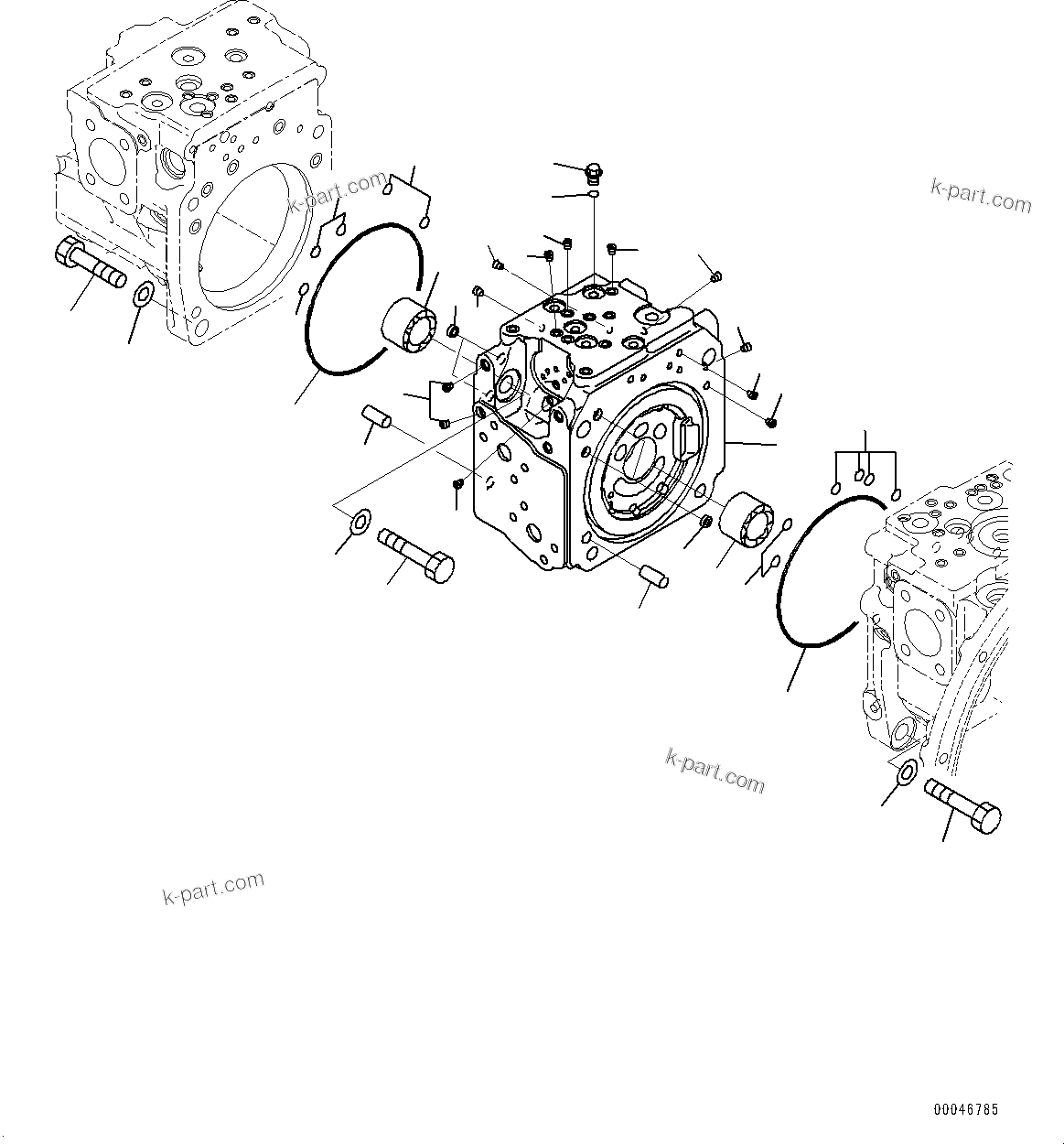

Komatsu parts book diagram for PC290LC-8 S/N 32001-UP: HYDRAULIC PUMP, PISTON PUMP (2/11)(#30471-)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	708-2L-00790	Pump Assembly, Piston	1	SN: 30471-UP
	?	708-2L-01600	Pump Subassembly	1	SN: 30879-UP \| SCC: C2
	?	708-2L-06450	Cap Assembly, End	1	SN: 30471-UP \| SCC: C2
	?		Cap, End	1	SN: 30471-UP \| SCC: C1
	?		Plug, Stocking	20	SN: 30471-UP \| SCC: C1
	?	708-2L-32260	Bearing	2	SN: 30471-UP \| SCC: C2
	?	07000-A5165	O-ring	2	SN: 30471-UP \| SCC: C2
	?	04020-01228	Pin, Dowel	2	SN: 30471-UP \| SCC: C2
	?	07000-B2012	O-ring	11	SN: 30471-UP \| SCC: C2
	?	708-2L-25480	Filter	4	SN: 30471-UP \| SCC: C2
	?	01010-61655	Bolt	8	SN: 30471-UP \| SCC: C2
	?	01643-31645	Washer	8	SN: 30471-UP \| SCC: C2
	?	708-8E-16170	Plug	5	SN: 30879-UP
	?	708-8E-16150	Plug	5	SN: 30471-30878
	?	07002-61023	O-ring	5	SN: 30471-UP
	?	708-1L-29340	Orifice	2	SN: 30471-UP \| SCC: C2
	?		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP
	?		[C2]-This part is supplied for authorized Komatsu distributors only. It cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP

Komatsu PC290LC-8 S/N 32001-UP parts catalog PDF

HYDRAULIC PUMP, PISTON PUMP (2/11)(#30471-) (H0210-004002) in PC290LC-8 S/N 32001-UP. Diagram image and parts list.
