PC290LC-8 S/N 32001-UP

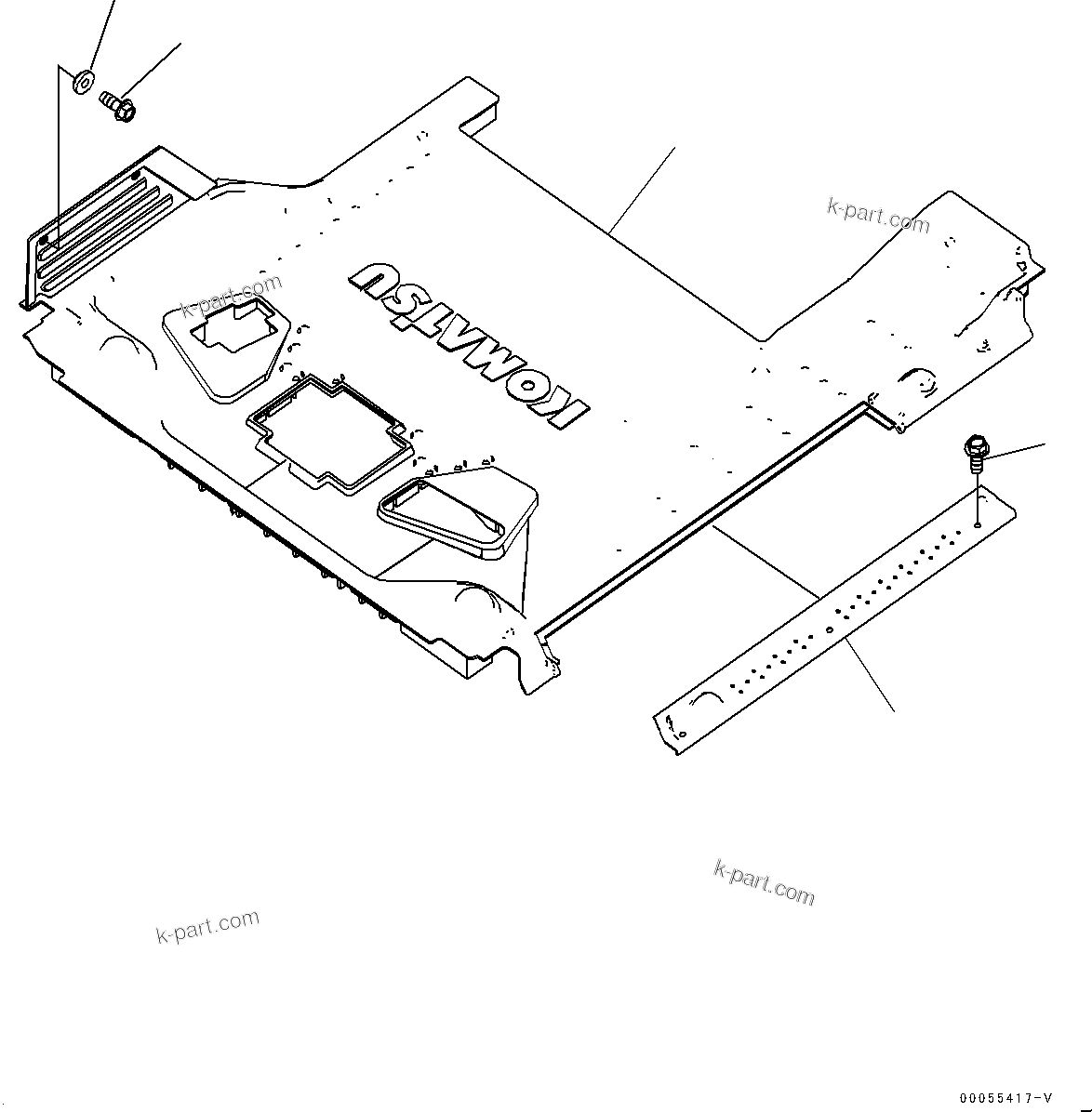

Komatsu parts book diagram for PC290LC-8 S/N 32001-UP: FLOOR MAT, (1-ADDITIONAL ACTUATOR PIPING, ACCUMULATOR)(#30117-)

? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	206-53-14721	Mat	1	SN: 30117-UP
	?	01435-40616	Bolt, Flanged	2	SN: 30117-UP
	?	20Y-43-41290	Collar	2	SN: 30117-UP
	?	20Y-53-11953	Cover	1	SN: 30117-UP
	?	01435-40612	Bolt, Flanged	3	SN: 30117-UP

Komatsu PC290LC-8 S/N 32001-UP parts catalog PDF

FLOOR MAT, (1-ADDITIONAL ACTUATOR PIPING, ACCUMULATOR)(#30117-) (K0310-002001) in PC290LC-8 S/N 32001-UP. Diagram image and parts list.
