PC290LC-8 S/N 32001-UP

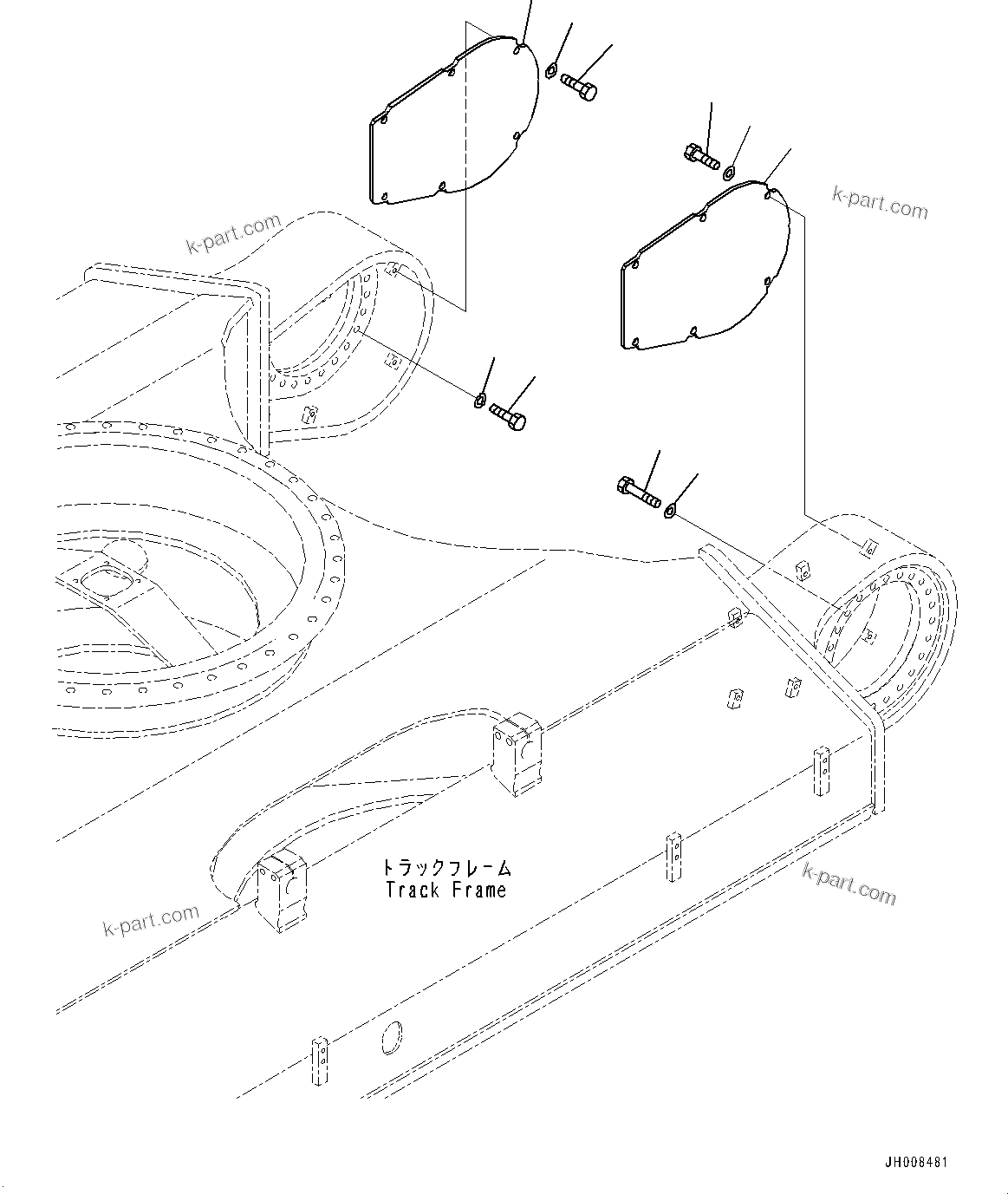

Komatsu parts book diagram for PC290LC-8 S/N 32001-UP: TRAVEL MOTOR AND FINAL DRIVE, COVER(#30471-)

? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	01010-82075	Bolt	42	SN: 30471-UP
	?	01643-32060	Washer	42	SN: 30471-UP
	?	207-30-71242	Cover	2	SN: 30471-UP
	?	01010-81640	Bolt	12	SN: 30471-UP
	?	01643-31645	Washer	12	SN: 30471-UP

Komatsu PC290LC-8 S/N 32001-UP parts catalog PDF

TRAVEL MOTOR AND FINAL DRIVE, COVER(#30471-) (P1210-002009) in PC290LC-8 S/N 32001-UP. Diagram image and parts list.
