PC290LC-8 S/N 32001-UP

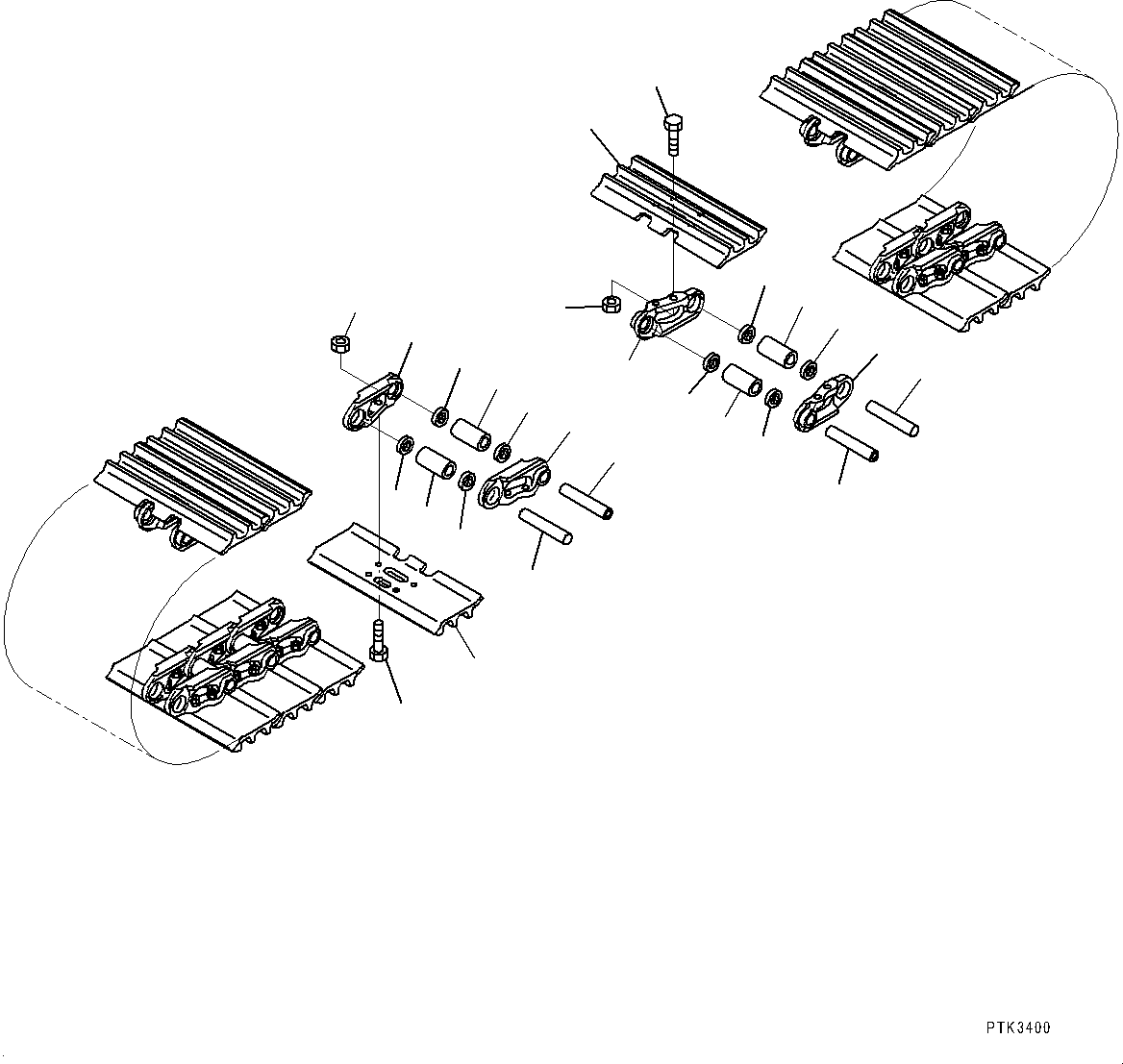

Komatsu parts book diagram for PC290LC-8 S/N 32001-UP: TRACK SHOE ASSEMBLY, (OBLONG HOLED TRIPLE GROUSER SHOE, 700MM WIDTH, GREASE SEALED TYPE, 96 SET)(#30471-)

8 1 5 3 6 4 10 11 3 10 7 9 2 9 1 4 10 11 5 3 6 10 3 8 2 7

	#	Part Number	Partname	Quantity	Options	Reference
	\|$0	207-32-03882	Track Shoe Assembly	1	SN: 30867-UP
	\|$1	207-32-03881	Track Shoe Assembly	1	SN: 30471-30866 \| SCC: A2
	1	207-32-71120	Link	96	SN: 30471-UP
	2	207-32-71130	Link	96	SN: 30471-UP
	3	144-32-11240	Seal	184	SN: 30471-UP
	4	207-32-51170	Bushing, Master	4	SN: 30471-UP
	5	207-32-51140	Bushing, Regular	92	SN: 30471-UP
	6	207-32-61150	Pin, Regular	92	SN: 30471-UP
	7	207-32-61310	Shoe	96	SN: 30471-UP
	8	207-32-72210	Bolt, (Kit : K02)	384	SN: 30867-UP
	\|$10	207-32-71210	Bolt, (Kit : K01)	384	SN: 30471-30866 \| SCC: A2
	9	154-32-71220	Nut, (Kit : K01, K02)	384	SN: 30471-UP
	10	207-32-61260	Seal	8	SN: 30471-UP
	11	207-32-61190	Pin, Master	4	SN: 30471-UP
	\|$14		[A2]-The part specified in the line above can be used instead of this part.	-1	SN: UP

Komatsu PC290LC-8 S/N 32001-UP parts catalog PDF

TRACK SHOE ASSEMBLY, (OBLONG HOLED TRIPLE GROUSER SHOE, 700MM WIDTH, GREASE SEALED TYPE, 96 SET)(#30471-) (R0500-002001) in PC290LC-8 S/N 32001-UP. Diagram image and parts list.
