AFE78-EZ 930E-5 S/N A40612,A40614 - A40618 KCH

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	WA5629	CLAMP, SPLIT FLANGE	2
?	VH6718	CLAMP, SPLIT FLANGE - 2 1/2"	2
?	TF3231	CLAMP, SPLIT FLANGE - 2"	4
?	TR4229	CAPSCREW - 5/8" - 11NC X 1 3/4"	4
?	VC1390	LOCKWASHER - 5/8"	12
?	TV1918	CAPSCREW - 1/2" - 13NC X 1 3/4"	4
?	58B-09-00510	CAPSCREW - 5/8" - 11NC X 2 1/4"	4
?	VN7716	CLAMP, SPLIT FLANGE - 4"	2
?	VC1388	CAPSCREW - 5/8" - 11NC X 2"	4
?	VL9963	CLAMP, SPLIT FLANGE - 3"	2
?	VC6561	CAPSCREW - 1/2" - 13NC X 1 1/2"	12
?	WA4728	FLAT WASHER, HARDENED - 1/2"	4
?	TR5445	LOCKWASHER - 1/2"	16
?	WA0399	NUT - 1/2" - 13NC	4
?	WB0988	CLAMP, HEAVY DUTY	2
?	58B-60-50000	ANGLE	1
?	WB0499	FITTING, ELBOW - 90 DEG	1
?	WB0520	FITTING, ELBOW - 90 DEG	1
?	58F-60-00880	ANGLE	1

Komatsu AFE78-EZ 930E-5 S/N A40612,A40614 - A40618 KCH parts catalog PDF

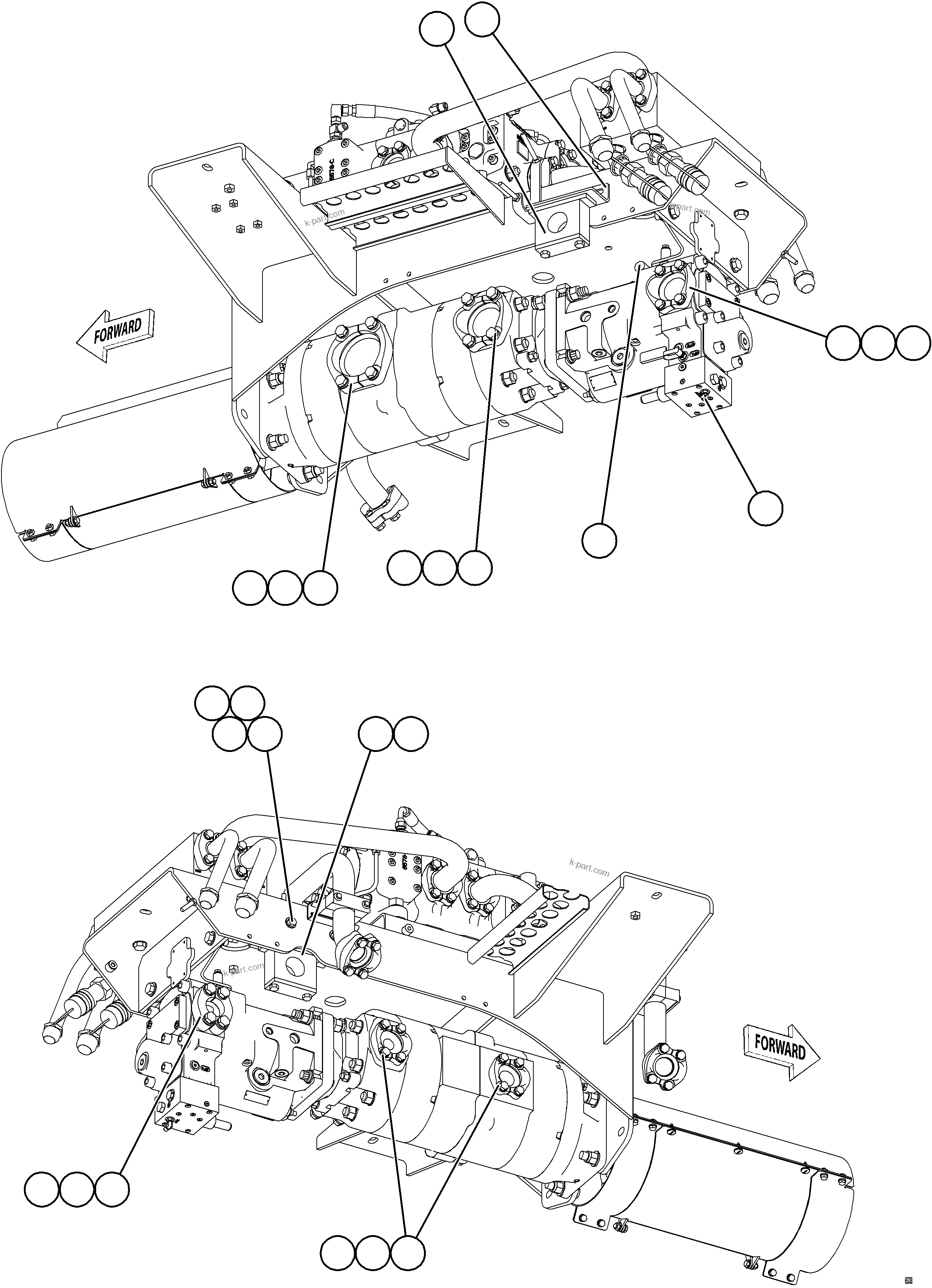

VALVE/PUMP MODULE PIPING 3/3 (65338) in AFE78-EZ 930E-5 S/N A40612,A40614 - A40618 KCH. Diagram image and parts list.
