PC33E-6 S/N 2201-UP

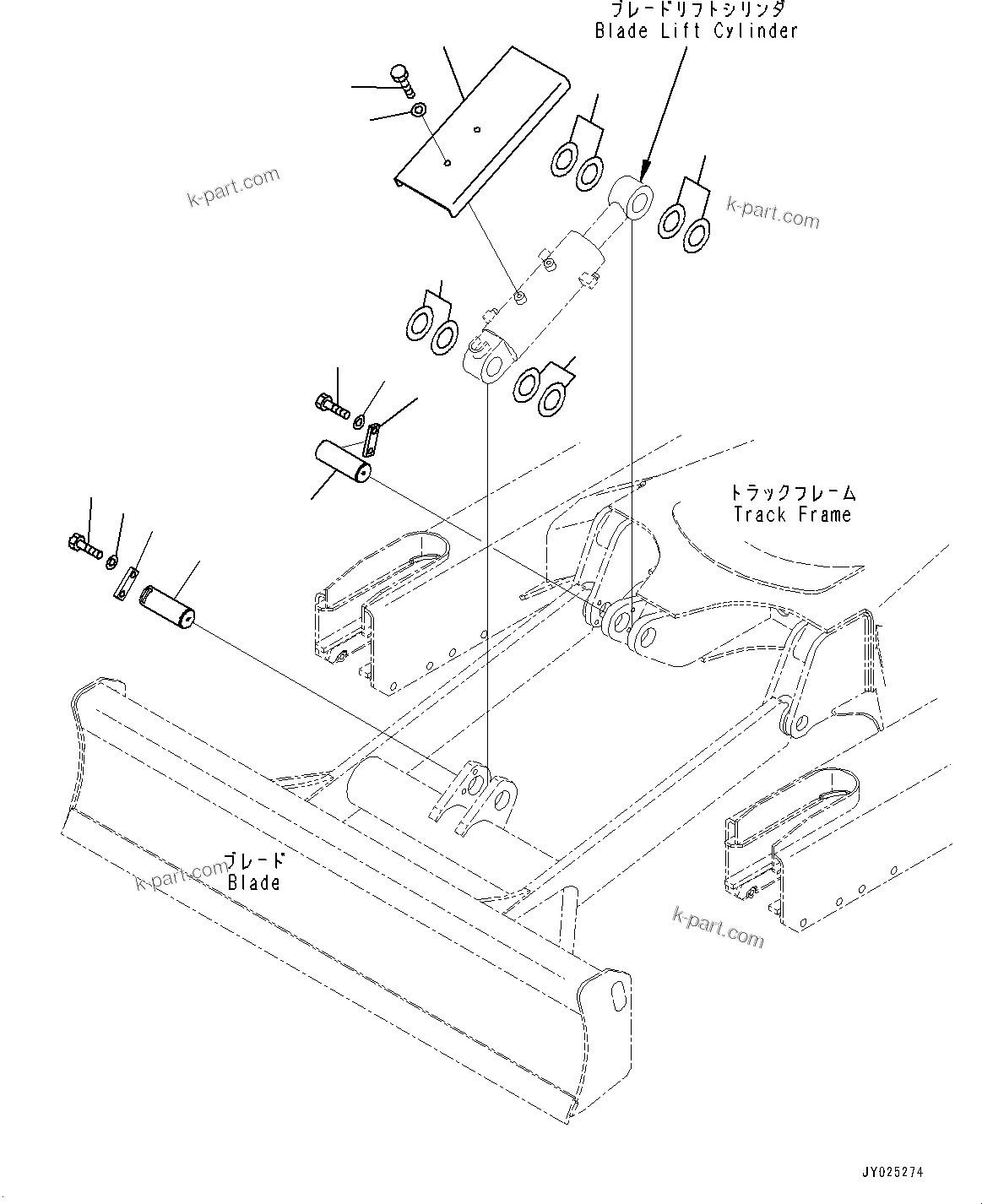

Komatsu parts book diagram for PC33E-6 S/N 2201-UP: BLADE CYLINDER, COVER AND PIN(#2201-)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	22F-71-31220	Cover	1	SN: 2201-UP
	?	01010-81020	Bolt	2	SN: 2201-UP
	?	01643-31032	Washer	2	SN: 2201-UP
	?	22L-71-21130	Pin	2	SN: 2201-UP
	?	04082-00212	Lock	2	SN: 2201-UP
	?	01010-81230	Bolt	4	SN: 2201-UP
	?	01643-31232	Washer	4	SN: 2201-UP
	?	20T-70-81710	Spacer, T=1.0mm	8	SN: 2201-UP

Komatsu PC33E-6 S/N 2201-UP parts catalog PDF

BLADE CYLINDER, COVER AND PIN(#2201-) (T1720-001002) in PC33E-6 S/N 2201-UP. Diagram image and parts list.
