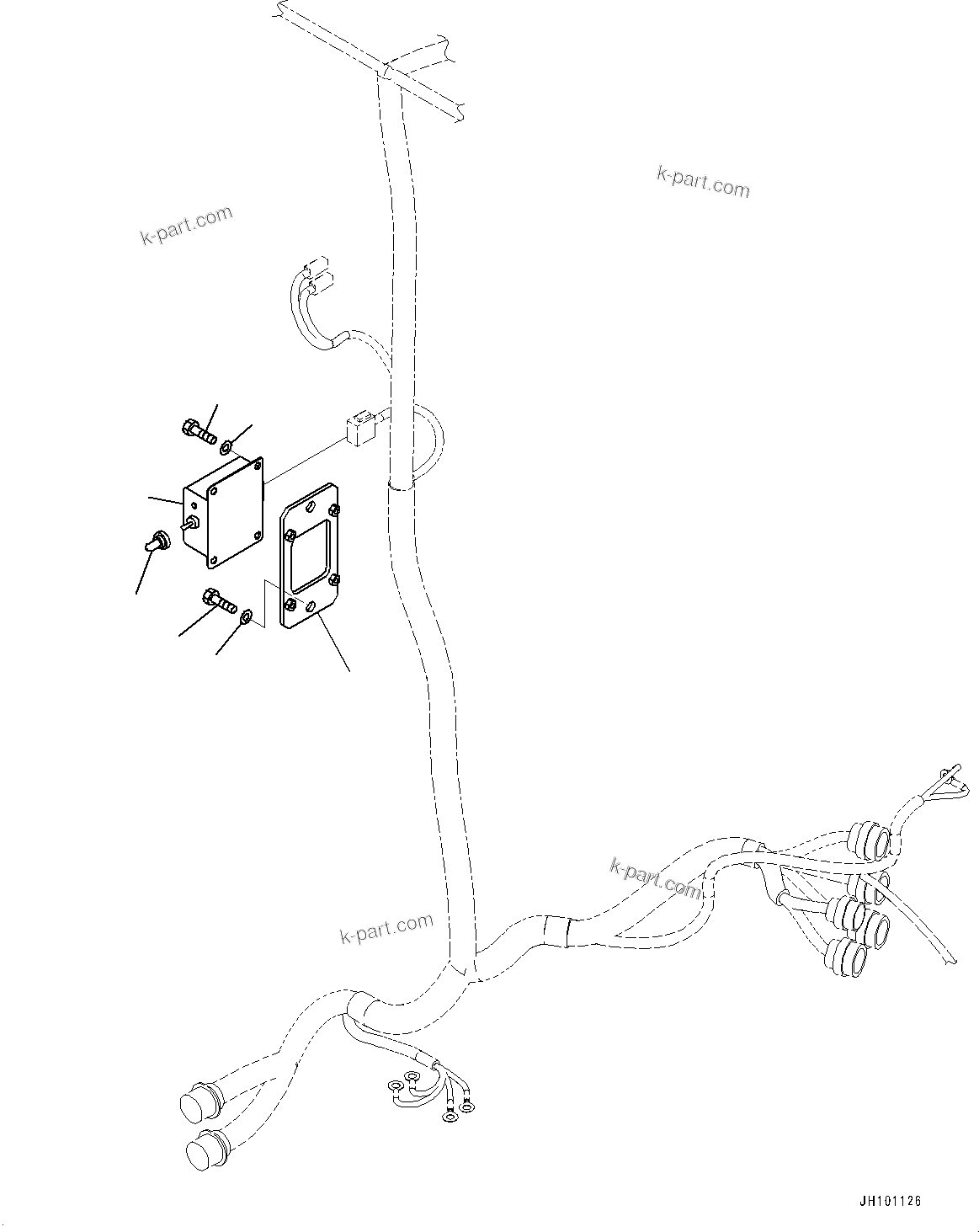

Komatsu parts book diagram for PC2000-11E0 S/N 31001-UP: ELECTRIC WIRING HARNESS, PRIMING PUMP SWITCH(#30001-)

? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	600-815-9780	Switch, Priming Pump	1	SN: 30001-UP
	?	08504-10000	Cap	1	SN: 30001-UP
	?	01010-80820	Bolt	4	SN: 30001-UP
	?	01643-30823	Washer	4	SN: 30001-UP
	?	21T-06-43650	Bracket	1	SN: 30001-UP
	?	01010-81225	Bolt	2	SN: 30001-UP
	?	01643-31232	Washer	2	SN: 30001-UP

Komatsu PC2000-11E0 S/N 31001-UP parts catalog PDF

ELECTRIC WIRING HARNESS, PRIMING PUMP SWITCH(#30001-) (E0200-020043) in PC2000-11E0 S/N 31001-UP. Diagram image and parts list.
