Diagram image 1 of 5

PC5500-6 S/N 15149

01 02 06 07 08 10 11 11 12 12 13 13 14 145 15 16 17 18 19 19 190 191 195 196 20 24 25 26 30 32 33 34 34 38 39 40 41 44 45 45 50

PC5500-6 S/N 15149

100 100 100 101 101 101 102 104 105 106 106 106 108 109 111 112 21 27 28 29 31 31 36 36 36 36 37 37 37 37 42 42 43 43 60 77 77 77 90 91 91 92 93 94 95 95 96 96 97 97 98 99 99 99

PC5500-6 S/N 15149

125 126 180 181 182 183 184 185 186 61 62 63 64 65 65 65 65 65 65 66 67 68 69 70 71 72 72 72 72 72 72 72 72 72 72 73 74 75 76 77 80 81 82

PC5500-6 S/N 15149

115 116 117 117 118 119 119 120 120 121 122 123 124 127 128 129 130 131 132 133 134 135 136 137 138 139 140 175 175 175 176 176 177 178 179 22 23 26 26 36 37 38 46 47 47 48 49 51 67 72 72

PC5500-6 S/N 15149

146 147 148 149 150 151 152 153 160 162 164 166 166 166 168 170 176

#	Part Number	Partname	Quantity
01	962 920 40	Switch cabinet assy.	1
02	958 927 40	Cable can bus 56x317-40x310	1
06	963 840 40	Switch cabinet retainer ORT 40	1
07	516 878 98	Bolt	4
08	518 594 98	Washer	4
10	963 841 40	Plate	2
11	506 957 98	Bolt	12
12	340 463 99	Washer	12
13	507 025 98	Nut	18
14	509 648 98	Bolt	5
15	518 547 98	Lock washer	5
16	510 746 98	Resilien sleeve	5
17	963 330 40	Socket plate	1
18	799 380 73	Seal	1
19	799 463 73	Handle	2
20	764 948 73	Hinge	2
21	962 924 40	Switch framing assy.	1
22	962 925 40	Mounting plate assy.	1
23	958 943 40	Cable can bus H-tank	1
24	962 926 40	Bottom plate with harness set	1
25	949 128 40	Seal	1
26	958 955 40	Can-bushing	3
27	957 071 40	Angle	1
28	957 072 40	Angle	1
29	957 413 40	Angle	1
30	979 200 40	Switch cabinet, empty, incl. Pos. 18-20	1
31	950 187 40	Hinge	2
32	515 253 40	Cord	1
33	940 913 40	Warmth shrink hose	-2
34	517 487 98	Cable shoe	4
36	509 870 98	Nut	11
37	510 321 98	Washer	11
38	950 435 40	Cable	-2
39	506 957 98	Bolt	8
40	515 331 98	Washer	16
41	509 869 98	Nut	8
42	514 921 98	Nut	4
43	518 299 98	Washer	4
44	941 844 40	Protection hose	-2
45	950 211 40	End Grommet	-2
46	269 078 40	Cable end sleeve	1
47	940 914 40	Warmth shrink hose	-2
48	907 554 40	Cable 16mm2	-2
49	654 372 40	Cable shoe	1
50	906 519 40	Eyebolt	2
51	950 682 40	Distance sleeve	4
60	962 927 40	Switch framing	1
61	960 613 40	Resistor array assy.	1
62	655 748 40	Diode array	1
63	963 201 40	Relay with retainer	1
64	941 503 40	Cover plate	10
65	941 685 40	Group plate	8
66	906 612 40	Through clamp 2.5	20
67	906 613 40	Cover plate	3
68	906 768 40	Through clamp 6,0	8
69	906 772 40	Cover plate	1
70	906 614 40	Bridge 2-fold	4
71	906 775 40	Bridge	6
72	940 673 40	Clamp	10
73	906 624 40	Marker	5
74	906 625 40	Marker	2
75	941 502 40	Potencial clamp	10
76	906 615 40	Bridge 3-fold	1
77	0443452110	Clamp DN17	4
80	906 611 40	Mounting part	1
81	604 733 40	Resistor	15
82	950 466 40	Cross connection	1
90	950 241 40	Frame	1
91	957 439 40	Retainer	2
92	957 440 40	Retainer	1
93	957 441 40	Retainer	1
94	957 442 40	Stop	1
95	957 073 40	Angle	2
96	514 072 98	Screw	8
97	307 445 99	Bolt	6
98	307 629 99	Bolt	6
99	518 594 98	Lock washer	14
100	518 299 98	Washer	12
101	514 921 98	Nut	12
102	966 561 40	Rubber plate	1
104	519 091 98	Washer	6
105	0819320010	Clip	3
106	0443451010	Clamp	3
108	0443550810	Clamp	3
109	500 853 98	Bolt	6
111	940 610 40	Makrolon plate	-2
112	940 061 40	Rivet	6
115	941 431 40	Contoller housing	1
116	962 928 40	Plug aasy	1
117	941 430 40	Modul	2
118	941 412 40	Plug connector	18
119	270 873 40	Wiring channel 40x40	-2
120	655 518 40	Wiring channel 40x60	-2
121	505 955 99	Assembly rail	-2
122	950 339 40	Wire clip 4-16 mm2	1
123	950 185 40	Wire clip 2,5 mm2	23
124	906 773 40	Cover plate 16 mm2	1
125	906 626 40	Marker	1
126	906 627 40	Marker	1
127	519 077 98	Screw	15
128	145 743 40	Washer	15
129	307 703 99	Bolt	2
130	518 560 98	Lock washer	2
131	307 640 99	Bolt	8
132	517 183 98	Nut	8
133	340 504 99	Lock washer	8
134	224 320 99	Bolt	4
135	334 506 99	Nut	4
136	515 331 98	Washer	4
137	509 860 98	Nut	2
138	334 649 99	Nut	8
139	509 869 98	Nut	4
140	966 609 40	Mounting plate	1
145	959 450 40	Ground plate	1
146	978 438 40	Harness 40X011 - 40	1
147	962 932 40	Harness 40X111 - 40	1
148	959 453 40	Harness 40X140 - 40	1
149	962 929 40	Harness 40X161 - 40	1
150	962 930 40	Harness 40X240 - 40	1
151	963 143 40	Harness 40X340 - 40	1
152	959 451 40	Harness 40X310-40X311	1
153	962 931 40	Harness 40X261-40	1
160	950 118 40	Socket	1
162	950 121 40	Socket	1
164	950 140 40	Socket	1
166	950 125 40	Socket	1
168	950 170 40	Plug in socket	1
170	950 146 40	Plug in socket	1
175	906 647 40	T-Splitter	3
176	958 956 40	CAN-Bushing	2
177	941 777 40	Plate	4
178	174 411 40	Cable strap	8
179	941 144 40	End resistor	1
180	941 734 40	Relay	1
181	344 498 40	Supporting trestle	1
182	978 193 40	Relay socket	1
183	320 975 99	Bolt	1
184	518 314 98	Lock washer	1
185	519 164 98	Sleeve	2
186	519 163 98	Sleeve	2
190		(see parts page 515-2232b) Cable can bus,	1
191	962 917 40	Cable can bus 10x140-30x140	1
195		(see parts page 515-2250) Cable can bus,	1
196		(see parts page 515-2250) Cable can bus,	1
\|$$145			-2
\|$$146			-2
\|$$147			-2
\|$$148			-2
\|$$149			-2
\|$$150			-2
\|$$151			-2
\|$$152			-2
\|$$153			-2
\|$$154			-2
\|$$155			-2
\|$$156			-2
\|$$157			-2
\|$$158			-2
\|$$159			-2
\|$$160			-2
\|$$161			-2
\|$$162			-2
\|$$163			-2
\|$$164			-2
\|$$165			-2
\|$$166			-2
\|$$167			-2

Komatsu PC5500-6 S/N 15149 parts catalog PDF

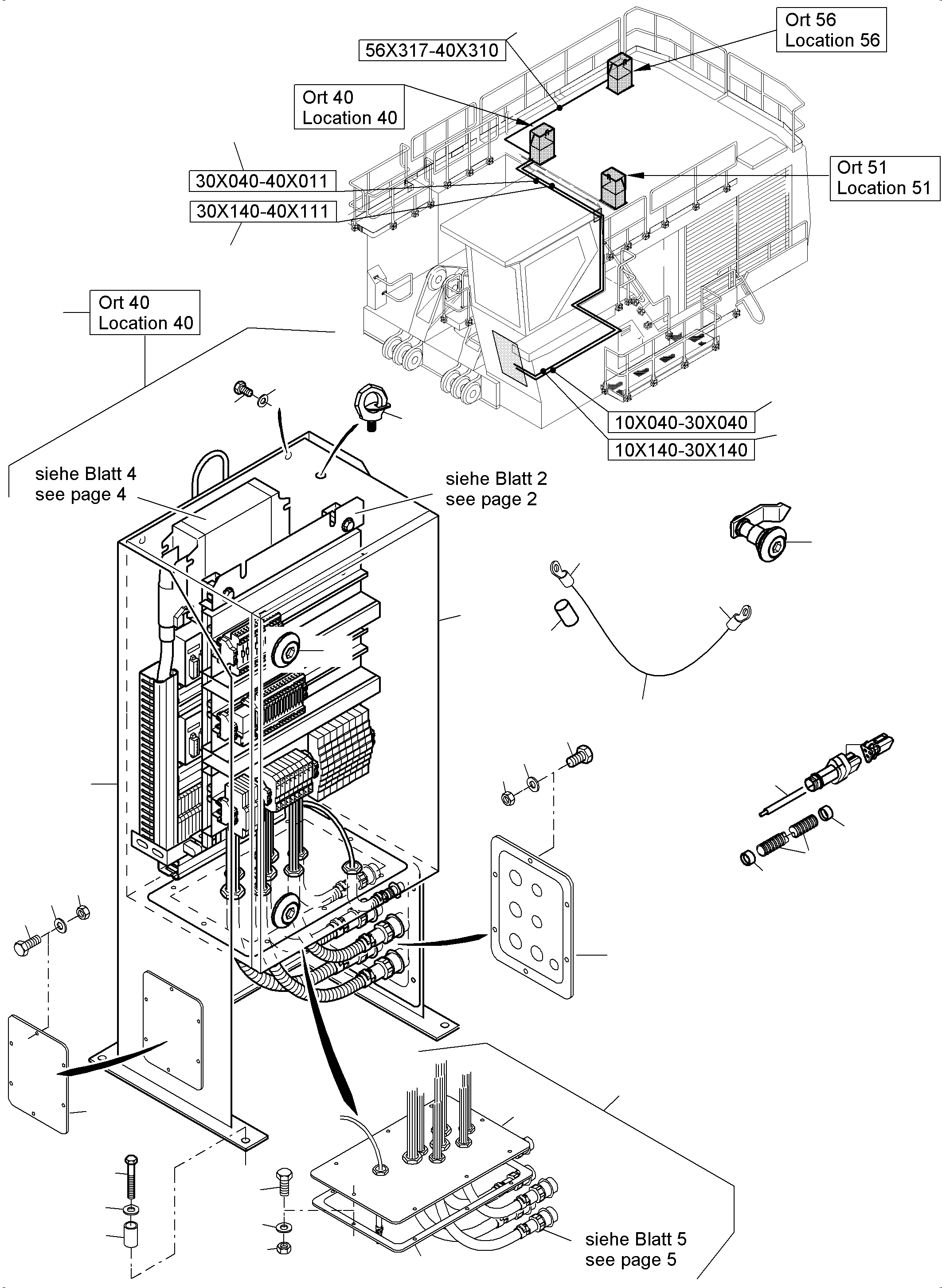

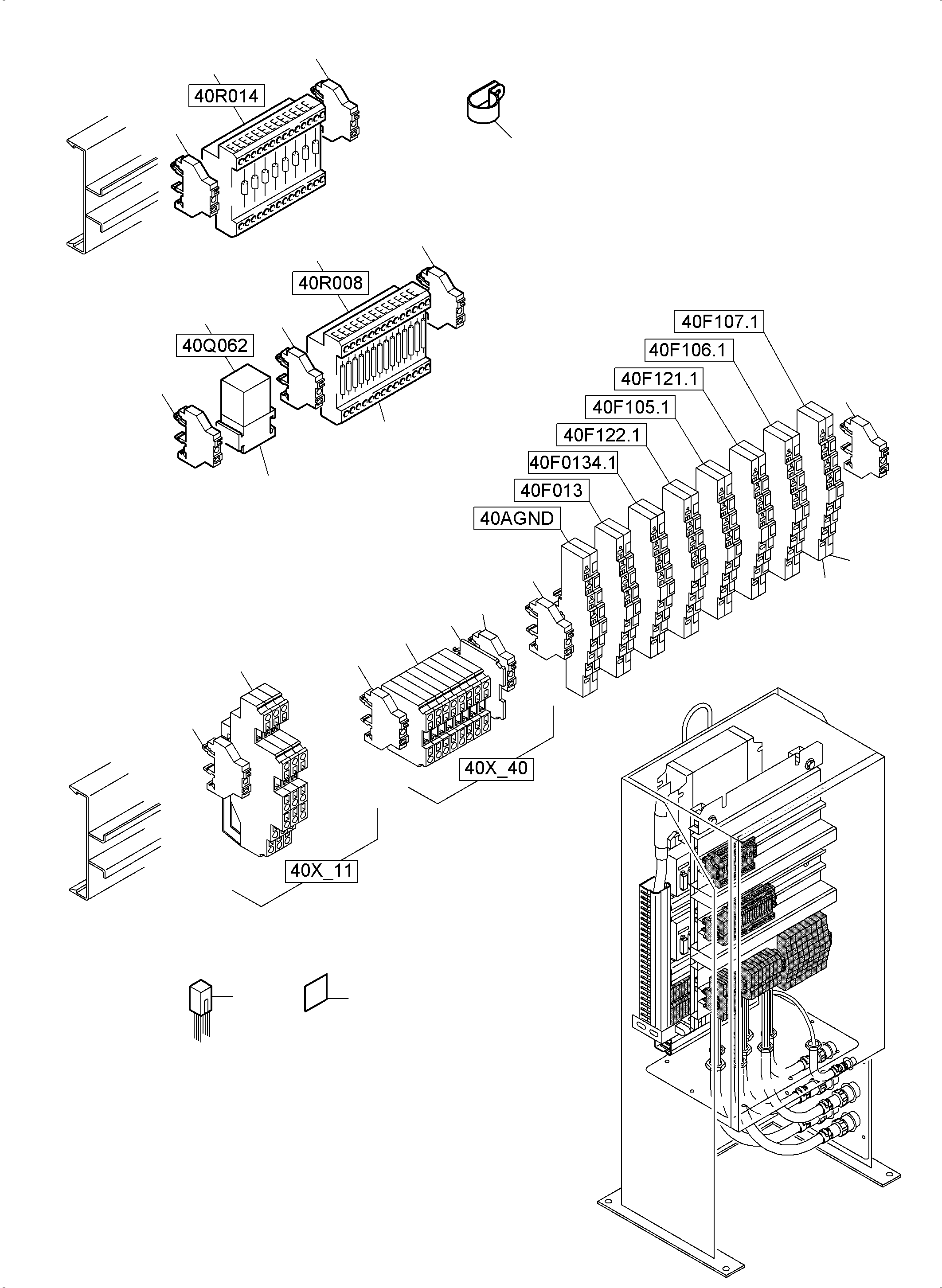

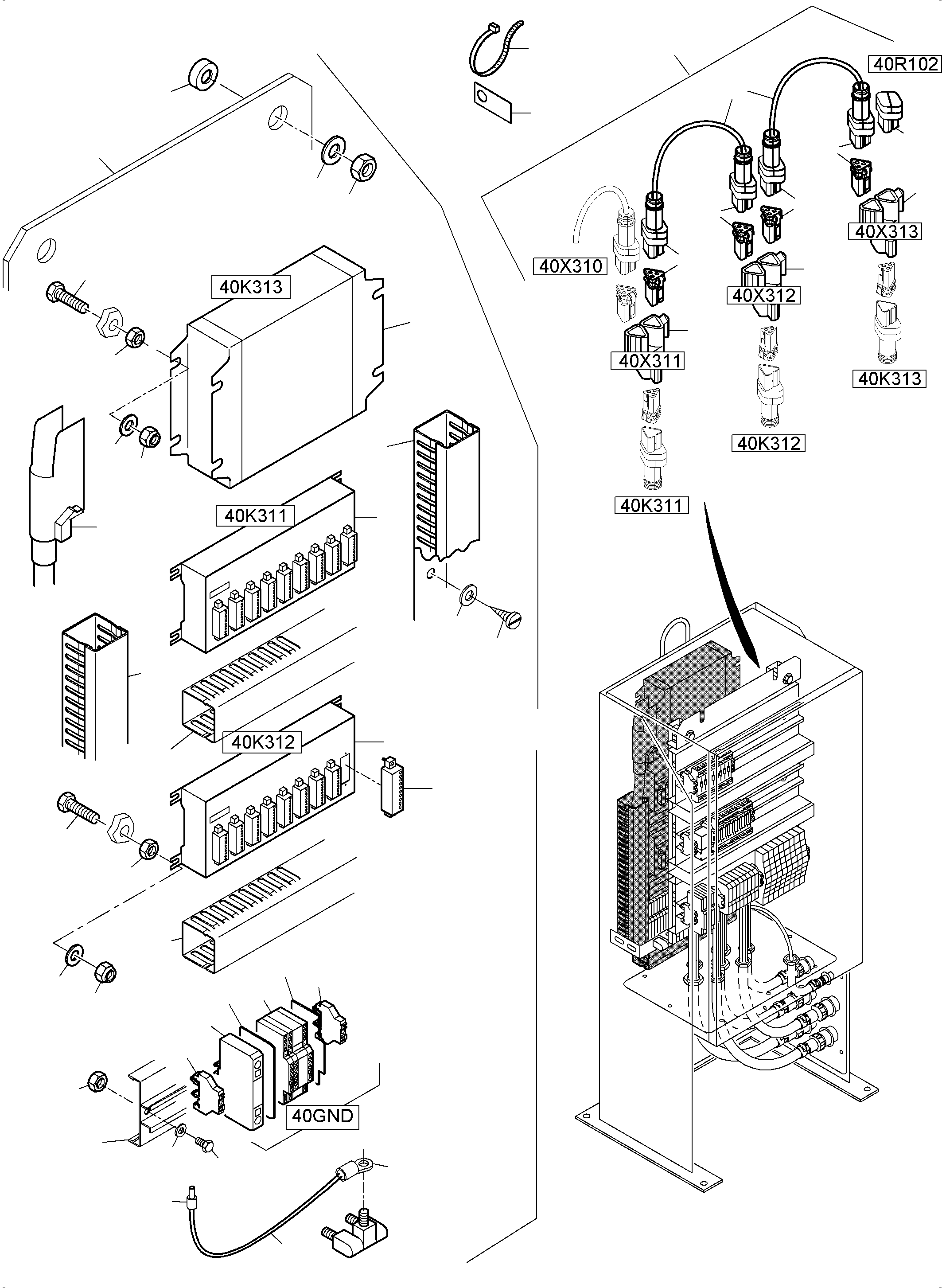

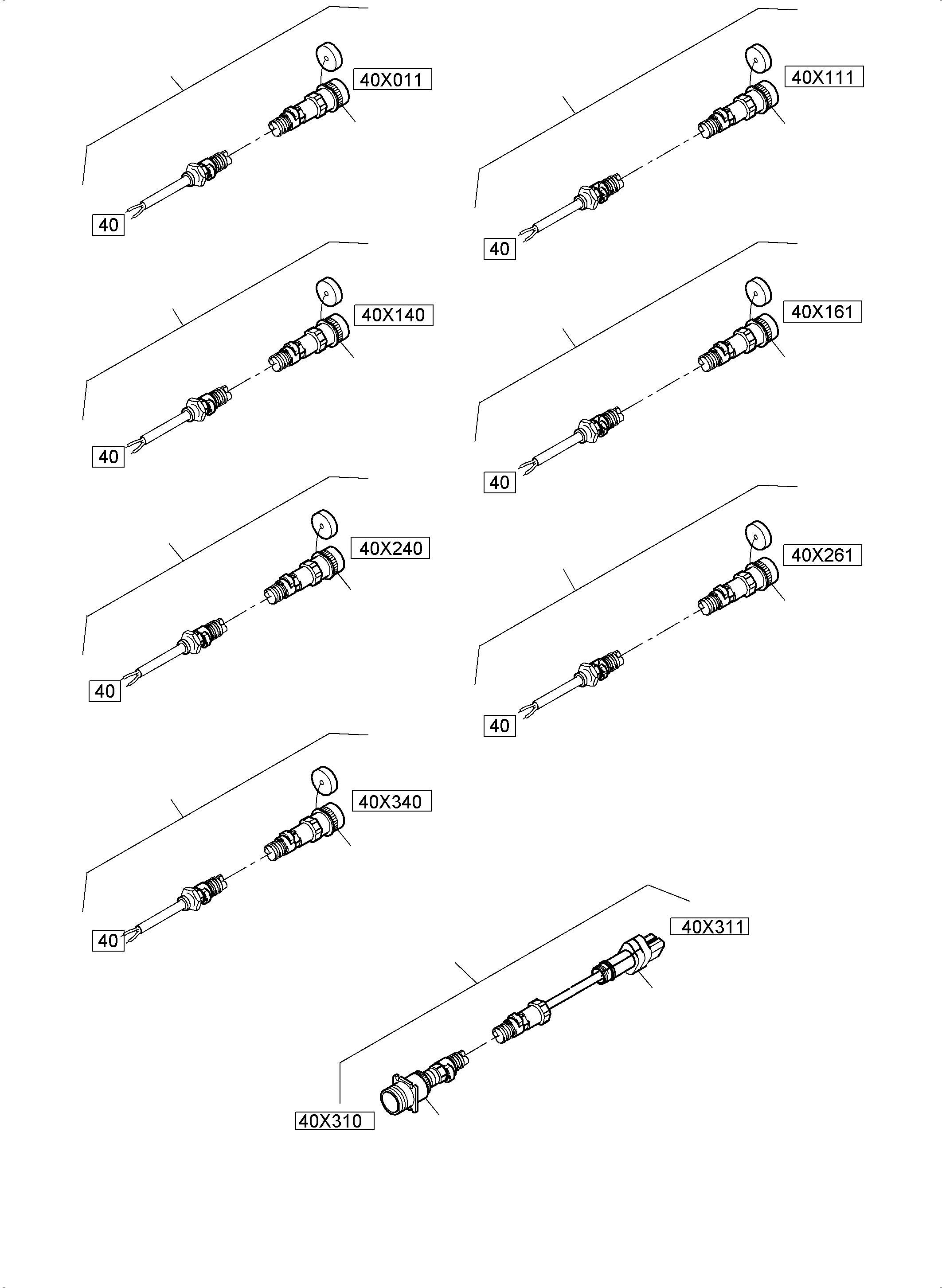

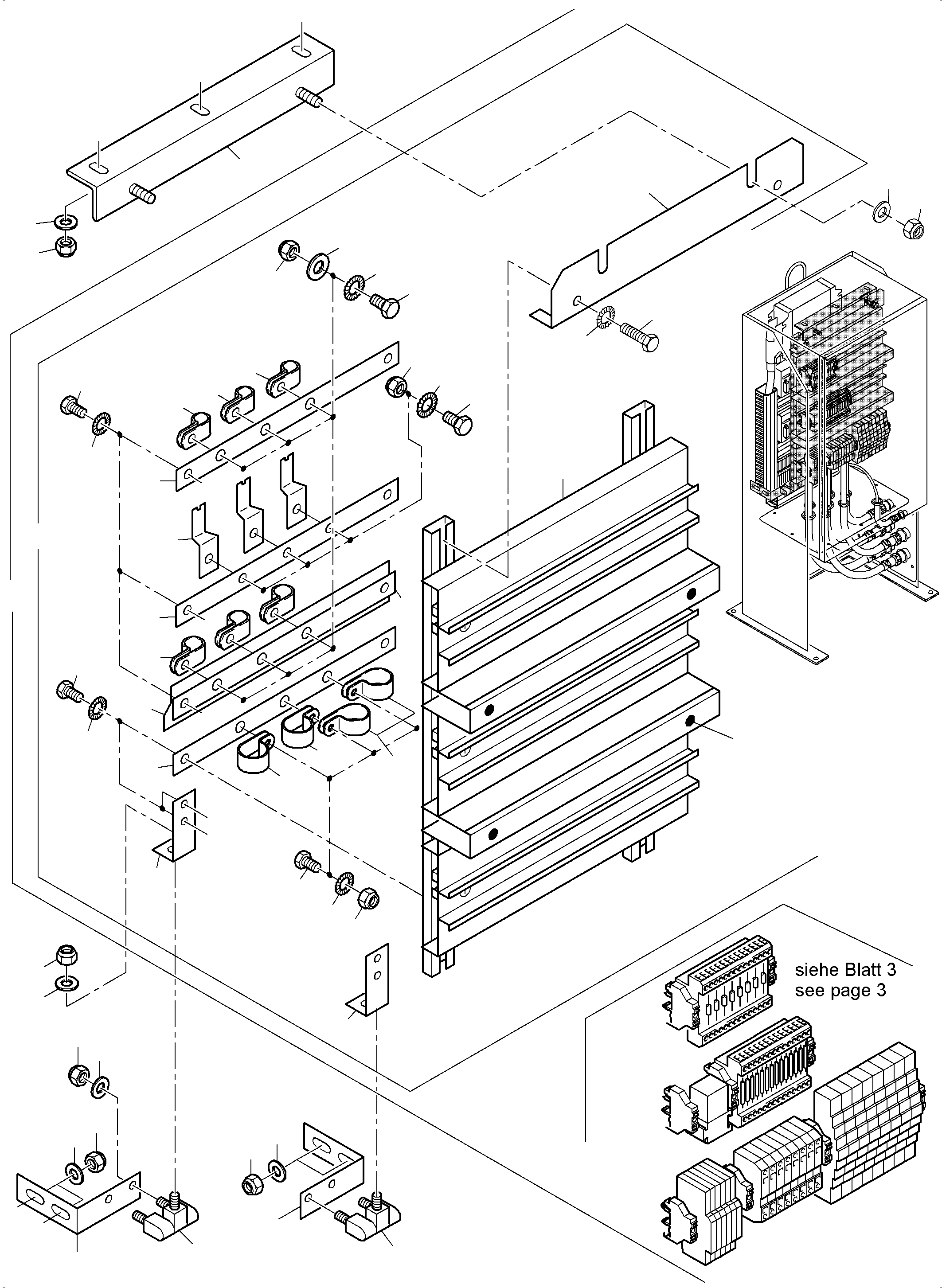

SWITCH CABINET ORT 40 (515-2240d) in PC5500-6 S/N 15149. Diagram image and parts list.
