Diagram image 1 of 4

PC5500-6 S/N 15149

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15149

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15149

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15149

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	958 084 40	Grease barrel assy.	1
?	936 874 40	Retainer	1
?	970 350 40	Retainer	1
?	974 547 40	Retainer	1
?	974 546 40	Retainer	1
?	974 545 40	Retainer	2
?	518 036 98	Clamp set	5
?	515 669 98	Clamp set	4
?	518 037 98	Clamp set	2
?	534 056 98	Clamp set	3
?	534 004 99	Cover plate	8
?	308 444 99	Bolt	8
?	308 582 99	Bolt	16
?	518 053 98	Clamp set	1
?	969 592 40	Retainer	1
?	308 537 99	Bolt	2
?	319 417 99	Screw	8
?	319 132 99	Screw	4
?	332 355 99	Nut	8
?	510 733 98	Resilient sleeve	8
?	316 211 99	Washer	8
?	517 122 98	Lock washer	16
?	517 120 98	Lock washer	2
?	340 405 99	Washer	12
?	516 615 98	Union	3
?	516 618 98	Union	3
?	516 962 98	Union	1
?	509 272 98	Nut	3
?	506 954 98	Nut	3
?	509 267 98	Nut	1
?	516 616 98	Socket	2
?	907 051 40	Union	2
?	513 495 98	Hose assy. DN 20x1630	2
?	647 867 40	Hose assy. DN 10x1540	1
?	255 400 40	Hose assy. DN 20x1500	2
?	517 172 98	Hose assy. DN 20x2100	1
?	519 516 98	Hose assy. DN 20x1520	1
?	913 486 40	Grease barrel	1
?		Lube pump station	3	991-1230
?		Pressure filter	2	991-0839
?	516 322 98	Valve	2
?	516 173 98	Socket	2
?	515 765 98	Socket	1
?	510 537 98	Socket	1
?	516 175 98	Socket	2
?	515 862 98	Socket	1
?	516 824 98	Socket	1
?	510 746 98	Resilient sleeve	8
?	308 578 99	Bolt	8
?	307 754 99	Bolt	12
?	340 464 99	Washer	12
?	374 412 99	Socket	2
?	516 181 98	Socket	1
?	374 410 99	Union	3
?	958 086 40	Pipe Ш 30	1
?	958 085 40	Pipe Ш 30	1
?	969 571 40	Pipe Ш 30	1
?	504 677 98	Clamp set	2
?	534 001 99	Cover plate	1
?	507 037 98	Nut	2
?	592 090 40	Hose assy. DN 12x750	2
?	653 512 40	Hose assy. DN 08x770	2
?	371 265 99	Union nut	-2
?	906 352 40	Olive	-2
?	518 239 98	Hose assy., with fire protection coating DN 10x9000	1
?	518 206 98	Hose assy., with fire protection coating DN 20x13300	1
?	512 962 98	Hose assy. DN 20x6700	2
?	516 248 98	Socket	1
?	518 035 98	Clamp set	5
?	512 958 98	Resilient sleeve	1
?	534 008 99	Plate	5
?	308 613 99	Bolt	10
?	517 118 98	Lock washer	11
?	504 923 98	Clamp set	14
?	980 192 40	Retainer	1
?	504 788 98	Screw	8
?	504 789 98	Locking plate	4
?	308 581 99	Bolt	20
?	517 122 98	Lock washer	20
?	374 431 99	Socket	1
?	551 345 40	Union	1
?	516 161 98	Socket	1
?	307 802 99	Bolt	1
?	509 060 98	Clamp set	6
?	517 397 98	Locking plate	2
?	517 396 98	Screw	4
?	308 608 99	Bolt	1
?	319 136 99	Bolt	8
?	518 546 98	Lock washer	8
?	516 820 98	Hose assy. DN 20x5400	1
?	512 672 98	Hose assy. 20X 4400	1
?	374 443 99	Union	1
?	518 058 98	Clamp set	2
?	534 001 99	Plate	2
?	308 579 99	Bolt	4
?	518 036 98	Clamp set	12
?	534 004 99	Cover plate	12
?	308 581 99	Bolt	12
?	906 868 40	Olive	2
?	371 264 99	Union nut	2
?	308 269 99	Bolt	6
?	507 037 98	Nut	6
?	516 837 98	Union	1
?	504 585 98	Screw	4
?	504 586 98	Locking plate	2
?	511 003 98	Hose assy. 20X 5750	1
?	939 177 40	Pipe	1
?	534 005 99	Weld on plate	5

Komatsu PC5500-6 S/N 15149 parts catalog PDF

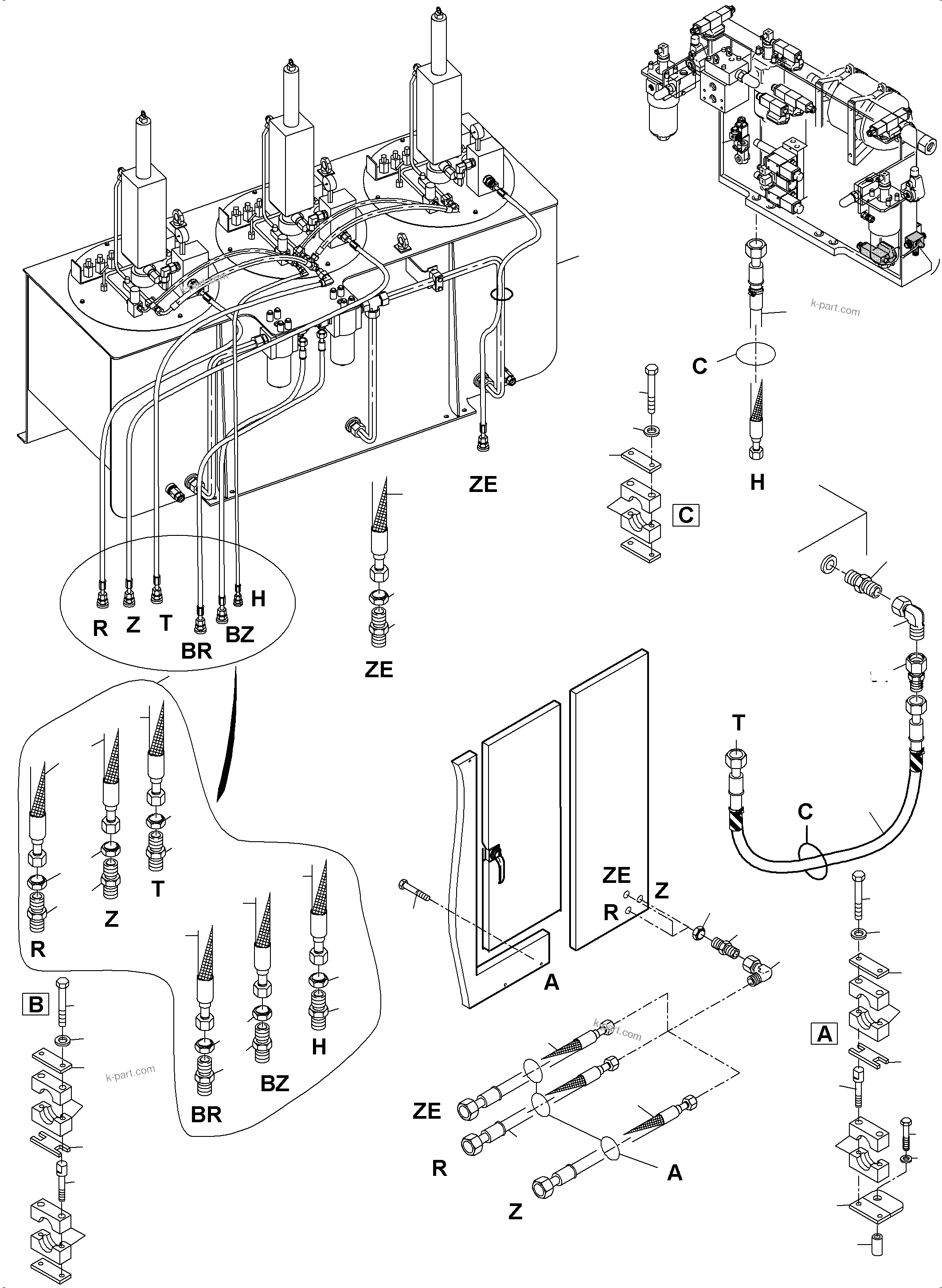

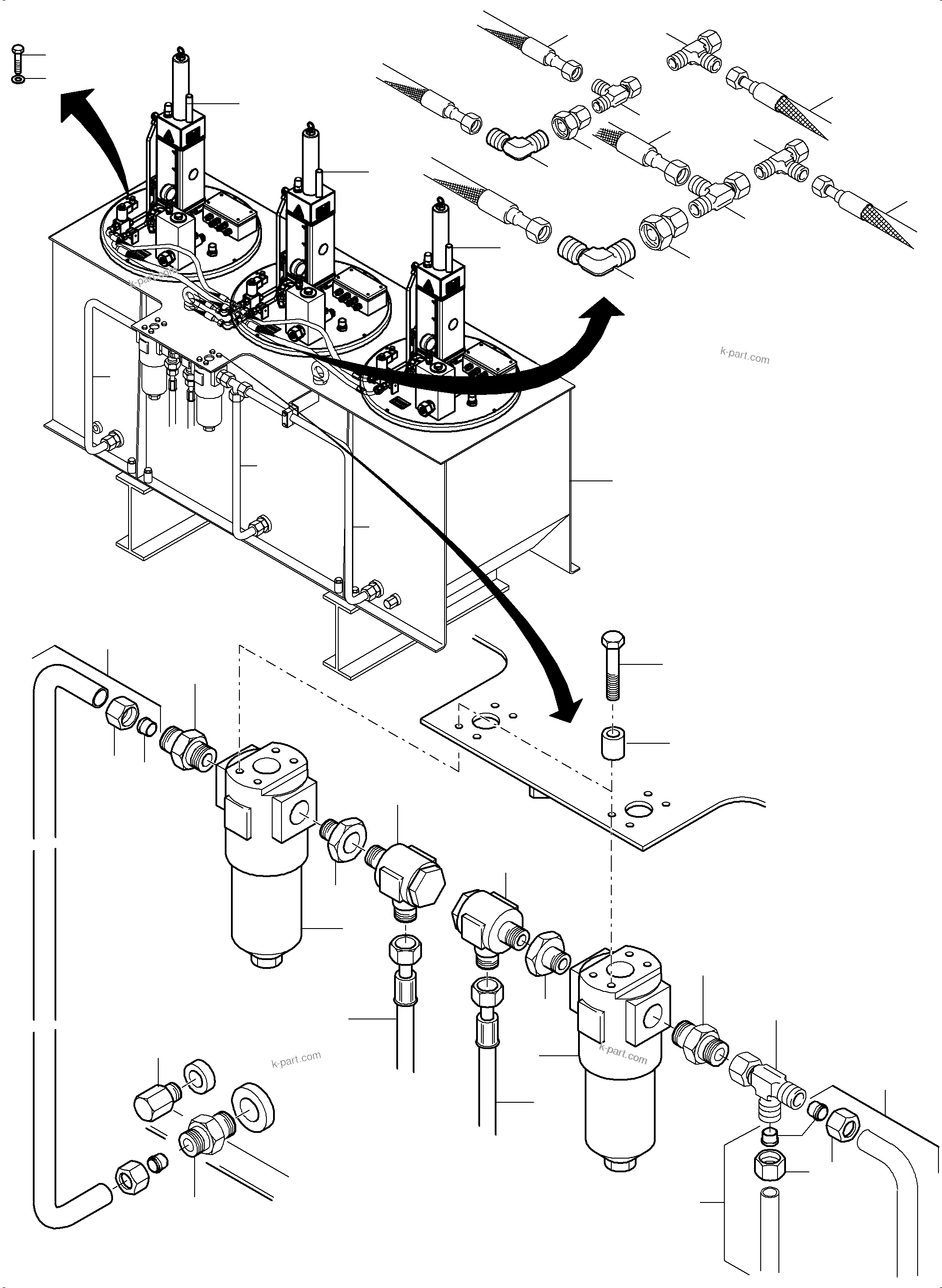

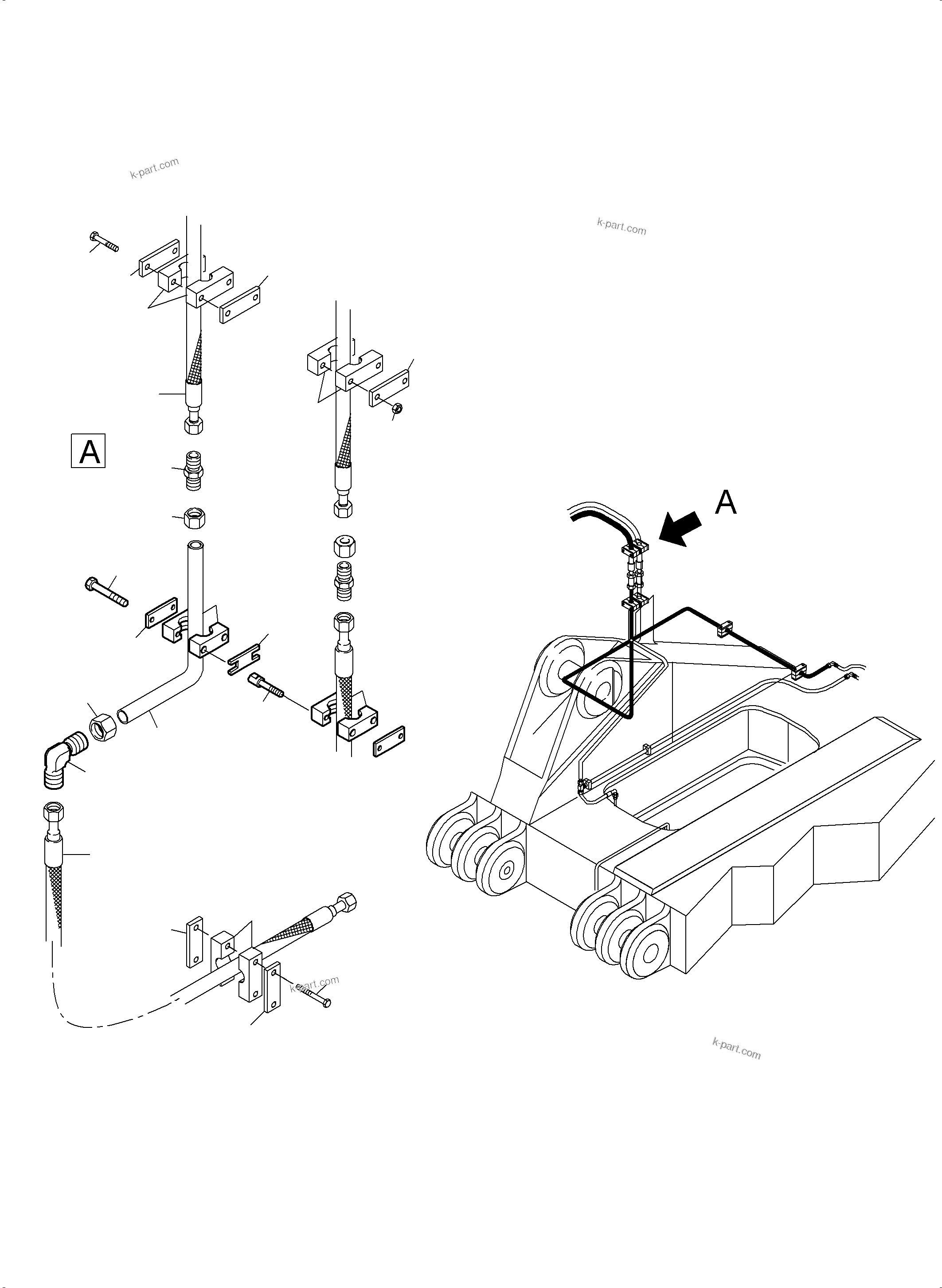

LUBE STATION ARRANGEMENT AND GREASE PIPE (515-2314j) in PC5500-6 S/N 15149. Diagram image and parts list.
