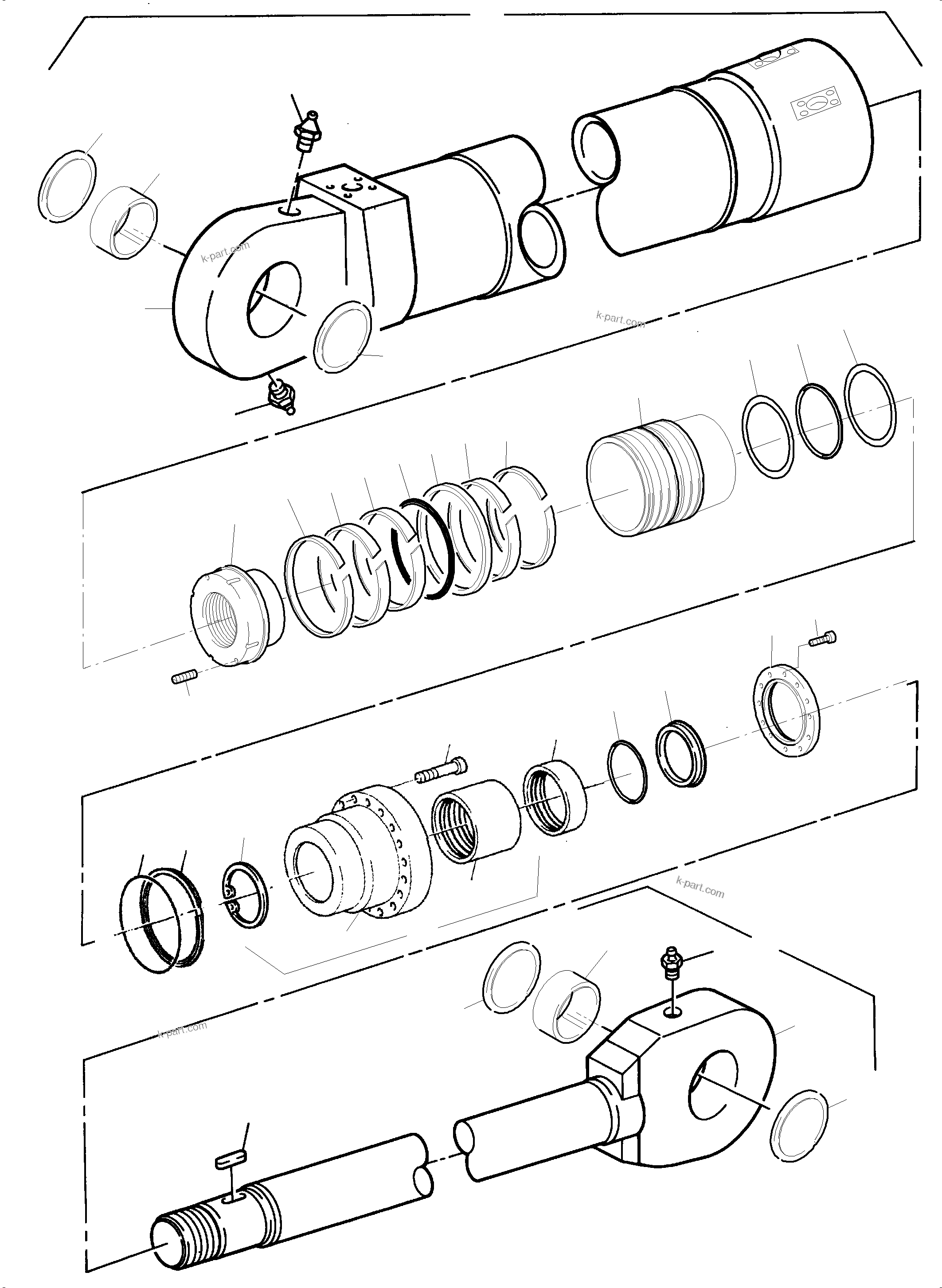

CLAM CYLINDER COLD WEATHER DESIGN | PC5500-6 S/N 15149

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC5500-6 S/N 15149

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	911 325 40	Hydr. cylinder (cold weather design) TT	1
?		Cylinder barrel	1
?	797 967 73	Cylinder barrel assy. incl. fig-nos.03,04,06	-2
?	907 019 40	Seal ring	4
?	938 876 40	Freeze-in bush	2
?	004 860 98	Grease nipple	3
?	793 279 73	Piston rod assy. incl. fig-nos.03, 04,06,08	1
?		Piston rod	1
?	915 829 40	Sealing flange assy. incl. fig-nos. 10-12	1
?		Flanged bush	1
?	508 723 40	Bearing bush (no field repair item)	1
?	342 679 99	Circlip	1
?	430 833 40	Piston	1
?	947 180 40	Groove nut	1
?	915 819 40	Cover ring	1
?	515 484 40	Piston guide strap	2
?	950 380 40	Piston guide ring	3
?	202 703 40	O-ring	1
?	440 397 40	Seal ring	1
?	504 636 98	O-ring	1
?	385 211 40	Support ring	2
?	506 067 98	O-ring	1
?	440 399 40	Support ring	1
?	440 574 40	Rod seal	1
?	906 534 40	Scraper	1
?	354 532 99	Feather key	1
?	506 015 98	Bolt (could weather design)	24
?	500 648 98	Bolt	4
?	947 184 40	Threaded pin	1
?	906 720 40	Support ring for Scrapper fig no. 25	-2
?	792 423 73	Seal kit - piston consist. of fig-nos: 16-21	-2
?	792 424 73	Seal kit - sealing flange, with slited seals, consist. of fig-nos: 22-25, 32	-2
?	797 325 73	Seal kit - sealing flange, with unslited seals, consist. of fig-nos: 22-25, 32	-2
