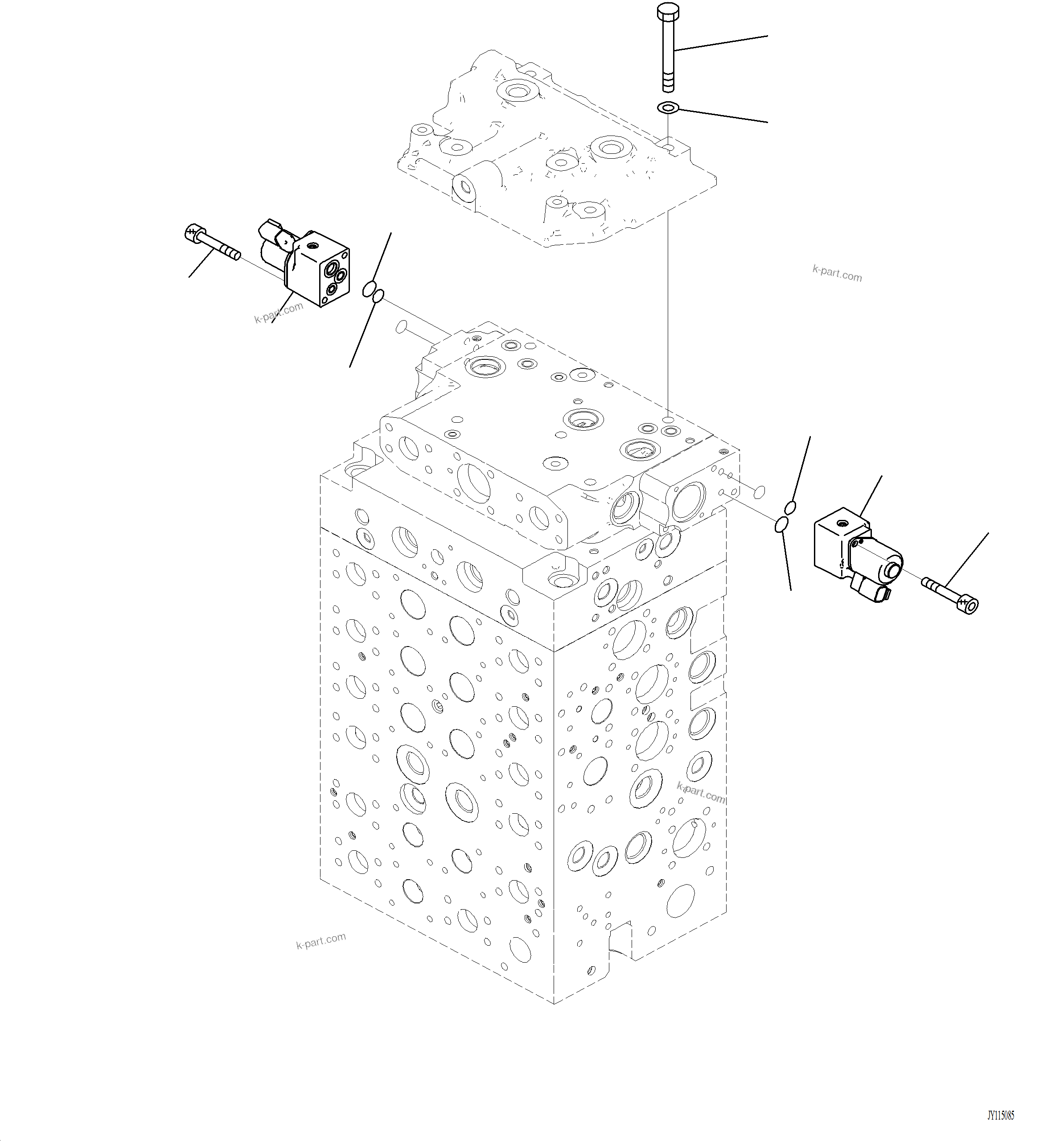

Komatsu parts book diagram for PC220LCi-12 S/N A15001: H0120-002020 CONTROL VALVE 7-ACTUATOR VALVE (20/20) (WITH 1-SERVICE VALVE)

? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?		VALVE ASSEMBLY, CONTROL, WITH 1-SERVICE VALVE (CONTROL VALVE, 7-ACTUATOR VALVE) (SEE FIG. H0120-001001 )	-1
	?		.VALVE ASSEMBLY (CONTROL VALVE, 7-ACTUA TOR VALVE) (SEE FIG. H0120-002017 )	-1
	?	702-21-07520	VALVE, SOLENOID	2
	?	723-E1-12210	BOLT	4
	?	07000-B2012	O-RING	2
	?	07000-B2015	O-RING	2
	?	01011-61010	BOLT	5
	?	01643-31032	WASHER	5

Komatsu PC220LCi-12 S/N A15001 parts catalog PDF

H0120-002020 CONTROL VALVE 7-ACTUATOR VALVE (20/20) (WITH 1-SERVICE VALVE) (H0120-002020) in PC220LCi-12 S/N A15001. Diagram image and parts list.
