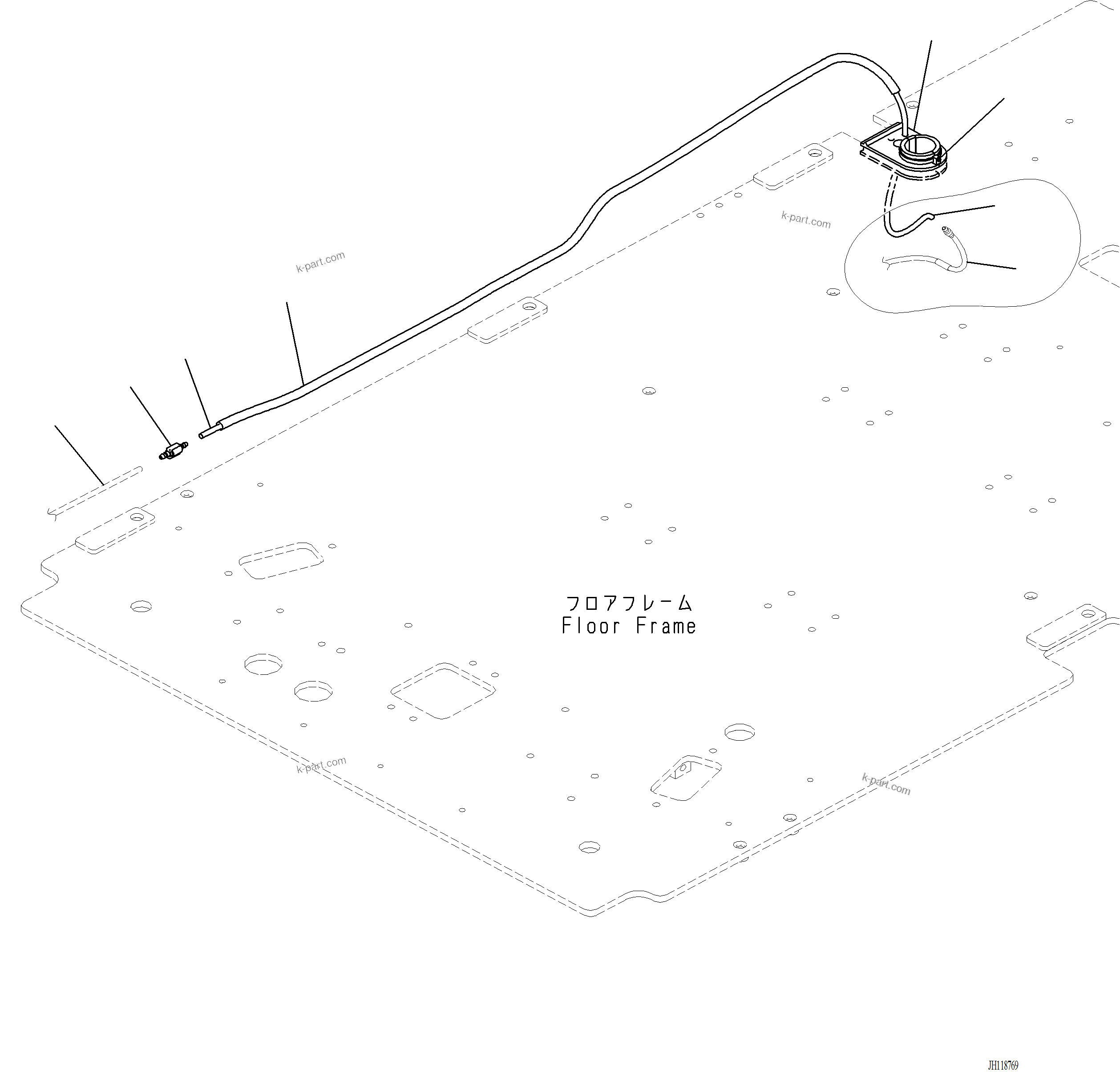

Komatsu parts book diagram for PC220LCi-12 S/N A15001: K1111-001046 CAB FLOOR, WINDOW WASHER HOSE

? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	2A5-53-52770	GROMMET	1
	?	17M-911-2670	HOSE	1
	?	17A-Z11-4610	VALVE	1
	?	08034-20536	BAND	1
	?	08017-A0711	CONDUIT	1
	?		HOSE (WINDOW WASHER, TANK) (SEE FIG. K0350-001001 )	-1		K0350-001001
	?		HOSE (CAB, WINDOW WASHER HOSE) (SEE FIG. K1111-001011 )	-1		K1111-001011

Komatsu PC220LCi-12 S/N A15001 parts catalog PDF

K1111-001046 CAB FLOOR, WINDOW WASHER HOSE (K1111-001046) in PC220LCi-12 S/N A15001. Diagram image and parts list.
