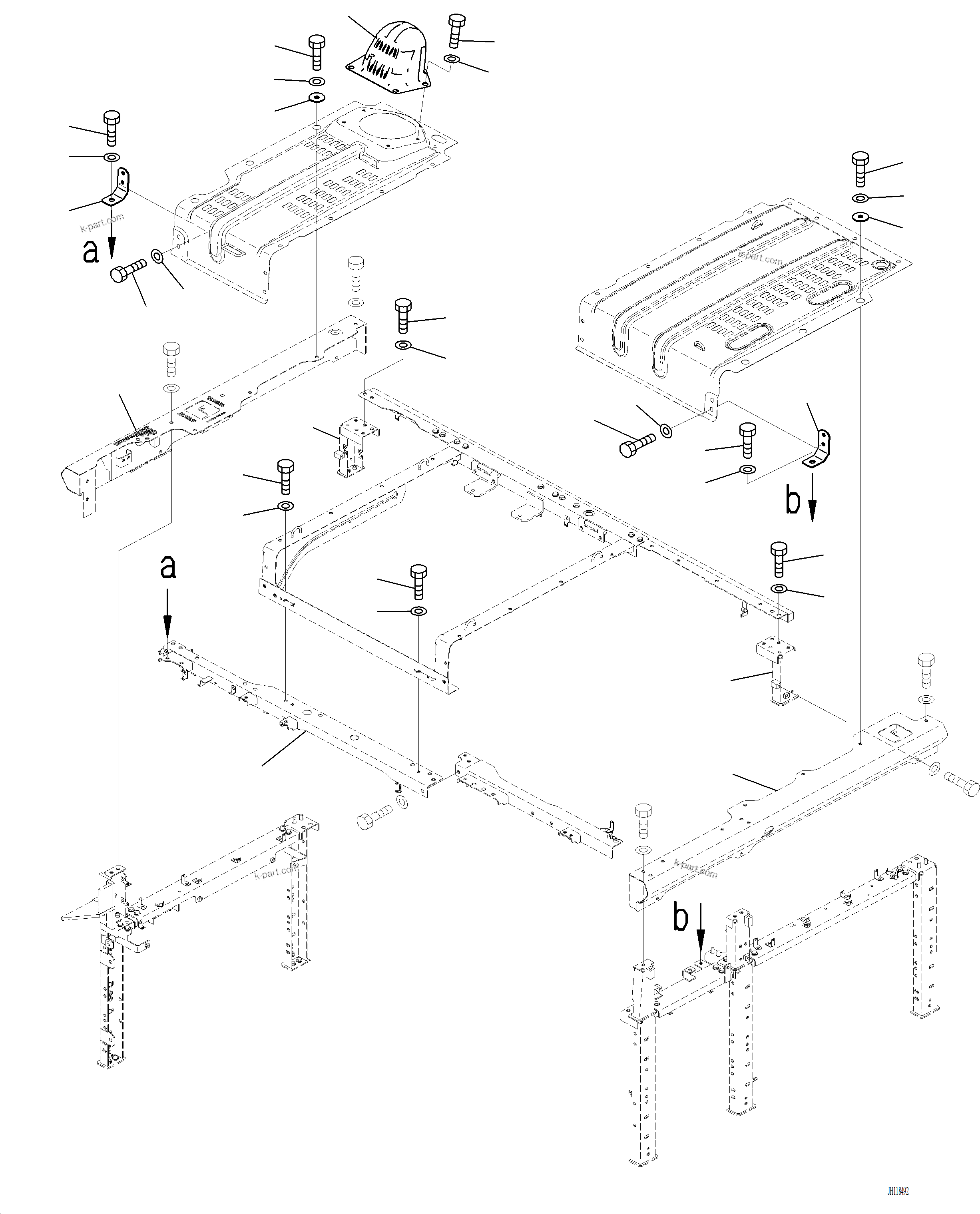

Komatsu parts book diagram for PC220LCi-12 S/N A15001: M1110-001005 ENGINE HOOD MOUNTING

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	01010-81230	BOLT	10
	?	01643-31232	WASHER	10
	?	20Y-54-56190	COLLAR	6
	?	01010-81230	BOLT	4
	?	175-54-34170	WASHER	4
	?	2A5-54-52320	BRACKET	2
	?	01010-81230	BOLT	6
	?	175-54-34170	WASHER	6
	?	2A5-01-51180	COVER	1
	?	01010-81230	BOLT	4
	?	175-54-34170	WASHER	4
	?		FRAME (SIDE COVER L.H., FRAME) (SEE FIG. M1130-002004 )	-1		M1130-002004
	?		COVER (SIDE COVER R.H., FRAME AND COVER) (SEE FIG. M1140-001001 )	-1		M1140-001001
	?		COVER (SIDE COVER L.H., FRAME AND COVER, FOR CAB REAR HANDRAIL) (SEE FIG. M1130-002001 )	-1		M1130-002001
	?		FRAME (SIDE COVER R.H., FRAME AND COVER) (SEE FIG. M1140-001001 )	-1		M1140-001001
	?		FRAME (SIDE COVER L.H., FRAME AND COVER, FOR CAB REAR HANDRAIL) (SEE FIG. M1130-002001 )	-1		M1130-002001

Komatsu PC220LCi-12 S/N A15001 parts catalog PDF

M1110-001005 ENGINE HOOD MOUNTING (M1110-001005) in PC220LCi-12 S/N A15001. Diagram image and parts list.
