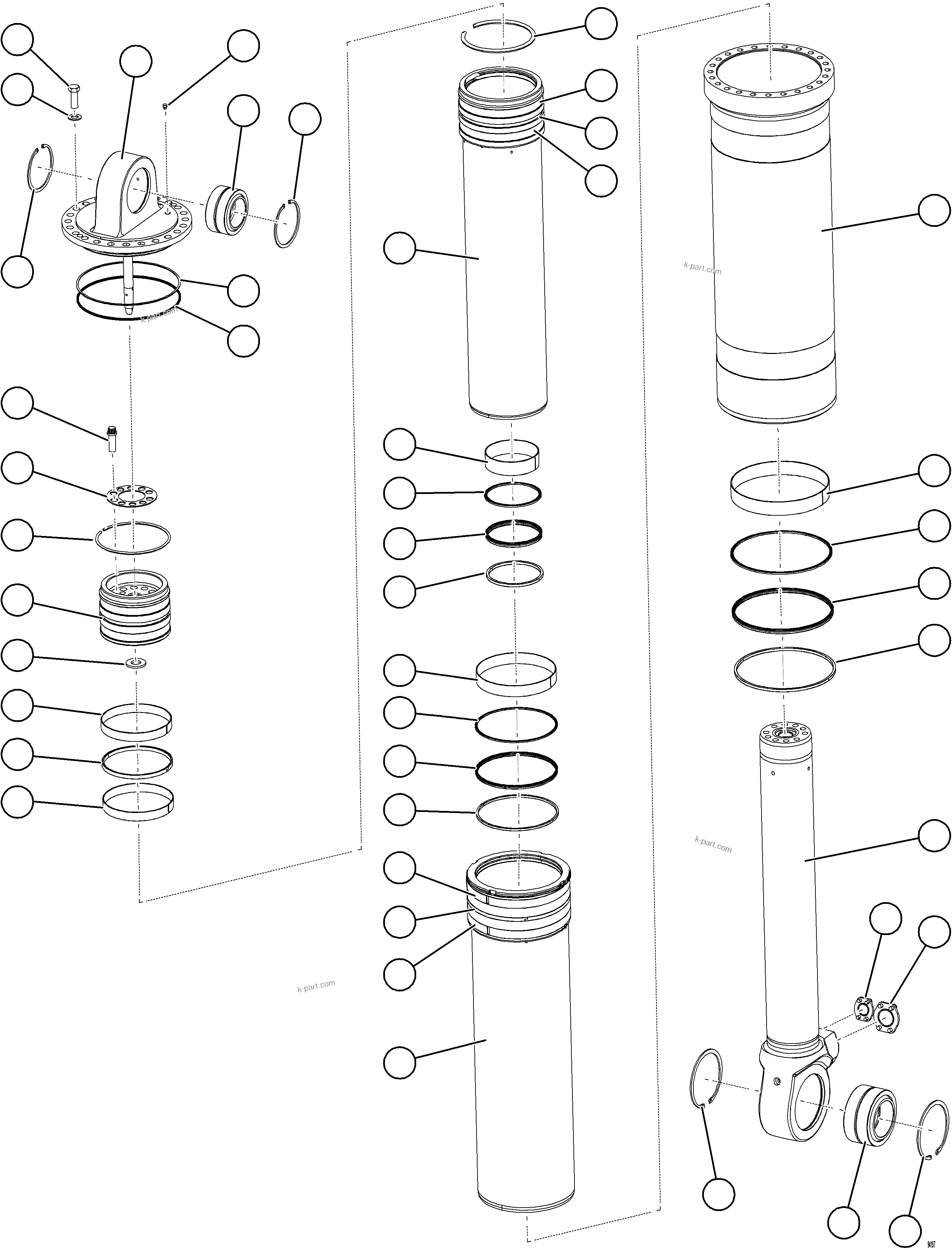

HOIST CYLINDER ASSEMBLY W/BEARINGS | AFE78-FD 930E-5 S/N A40629 - A40631 KSA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE78-FD 930E-5 S/N A40629 - A40631 KSA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EM8376	HOIST CYLINDER ASSEMBLY W/BEARINGS	1
?	VN9350	RING, RETAINING (2)	2
?	VL4293	BUSHING, BALL (2)	1
?	VN9353	RING, RETAINING	2
?	PB8931	BUSHING, BALL	1
?	NSS	HOIST CYLINDER ASSEMBLY	1
?	VM2202	PLUG, VENT	1
?	EL3417	CYLINDER HEAD ASSEMBLY (SEE FIG 94167)	1	94167
?	VN9088	CAPSCREW - 7/8" - 9NC X 2 1/2"	24
?	WA0363	FLAT WASHER, HARDENED - 7/8"	24
?	WA1456	RING, BACKUP (1)	1
?	WA0456	O-RING (1)	1
?	WA0879	CAPSCREW, 12 PT- 7/8" - 9NC X 2 1/2"	10
?	EG9090	PLATE	1
?	PC1996	RING, SNAP - ROUND (1)	1
?	EM8378	RETAINER, BEARING	1
?	TY1503	SEAL (1)	1
?	PC1435	BEARING - 9 1/2" (1)	2
?	PB8615	SEAL ASSEMBLY - 9 1/2" (1)	1
?	XB0706	TUBE - 10 1/2"	1
?	PC1050	SNAP RING (1)	1
?	PC1436	BEARING - 11 3/4" (1)	2
?	PB8618	SEAL - 11 3/4" (1)	1
?	PB9802	BEARING - 7" (1)	1
?	PB9910	SEAL, BUFFER - 7" (1)	1
?	PB9800	SEAL, ROD - 7" (1)	1
?	PB9799	WIPER, ROD - 7" (1)	1
?	PB9806	BEARING - 10 1/2" (1)	1
?	PB9911	SEAL, BUFFER - 10 1/2" (1)	1
?	PB9804	SEAL, ROD - 10 1/2" (1)	1
?	PB9803	WIPER, ROD - 10 1/2" (1)	1
?	PC1437	BEARING - 14" (1)	2
?	EL7281	TUBE - 13"	1
?	EL7279	HOUSING	1
?	PB9810	BEARING - 13" (1)	1
?	PB9912	SEAL, BUFFER - 13" (1)	1
?	PB9808	SEAL, ROD - 13" (1)	1
?	PB9807	WIPER, ROD - 13" (1)	1
?	EL5369	ROD, PIVOT	1
?	WB1241	KIT, SHIPPING PLATE (3)	1
?	WB1239	KIT, SHIPPING PLATE (3)	1
?	PB8908	SEAL - 14" (1)	1
?			-1
?	58C-00-10030	NOTE: (1) INCLUDED IN 58C-00-10030 HOIST SEAL KIT.	-1
?	58F-MP-AK040	(2) INCLUDED IN 58F-MP-AK040 UPPER HOIST CYLINDER PIN KIT.	-1
?		(3) USED FOR SHIPPING AND STORAGE ONLY.	-1
