TEMPERATURE CONDITIONING | PC5500-6 S/N 15137 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

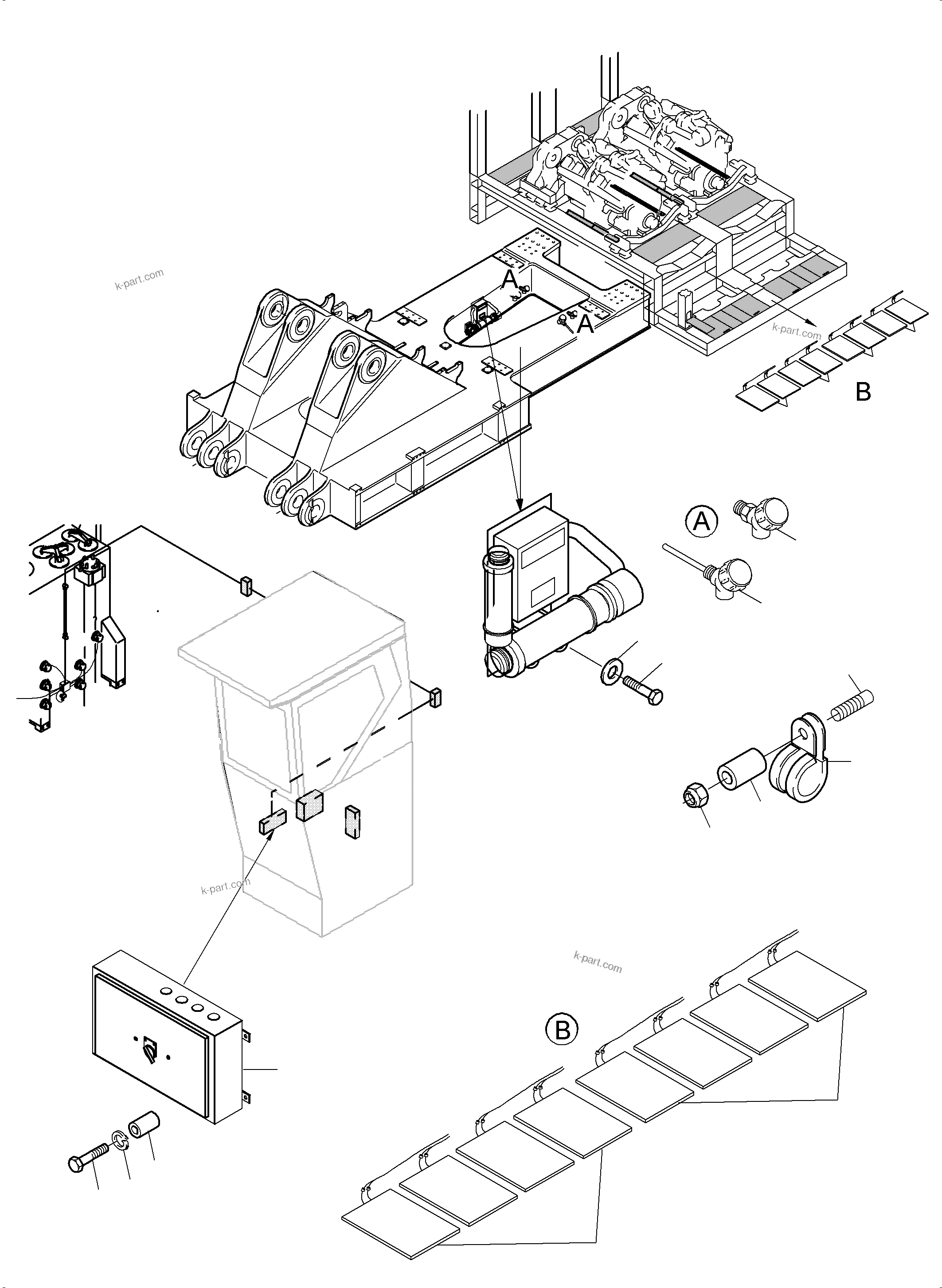

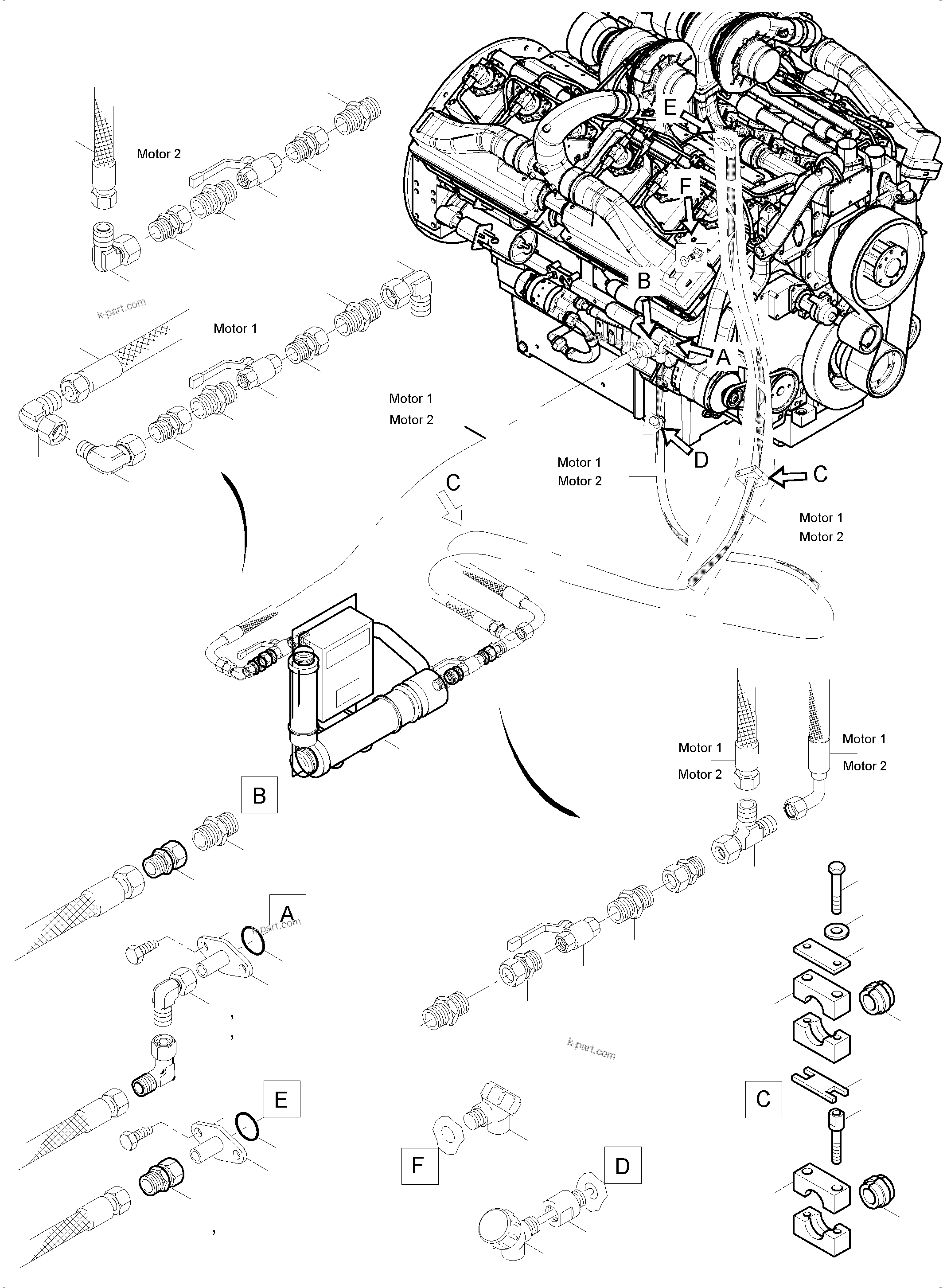

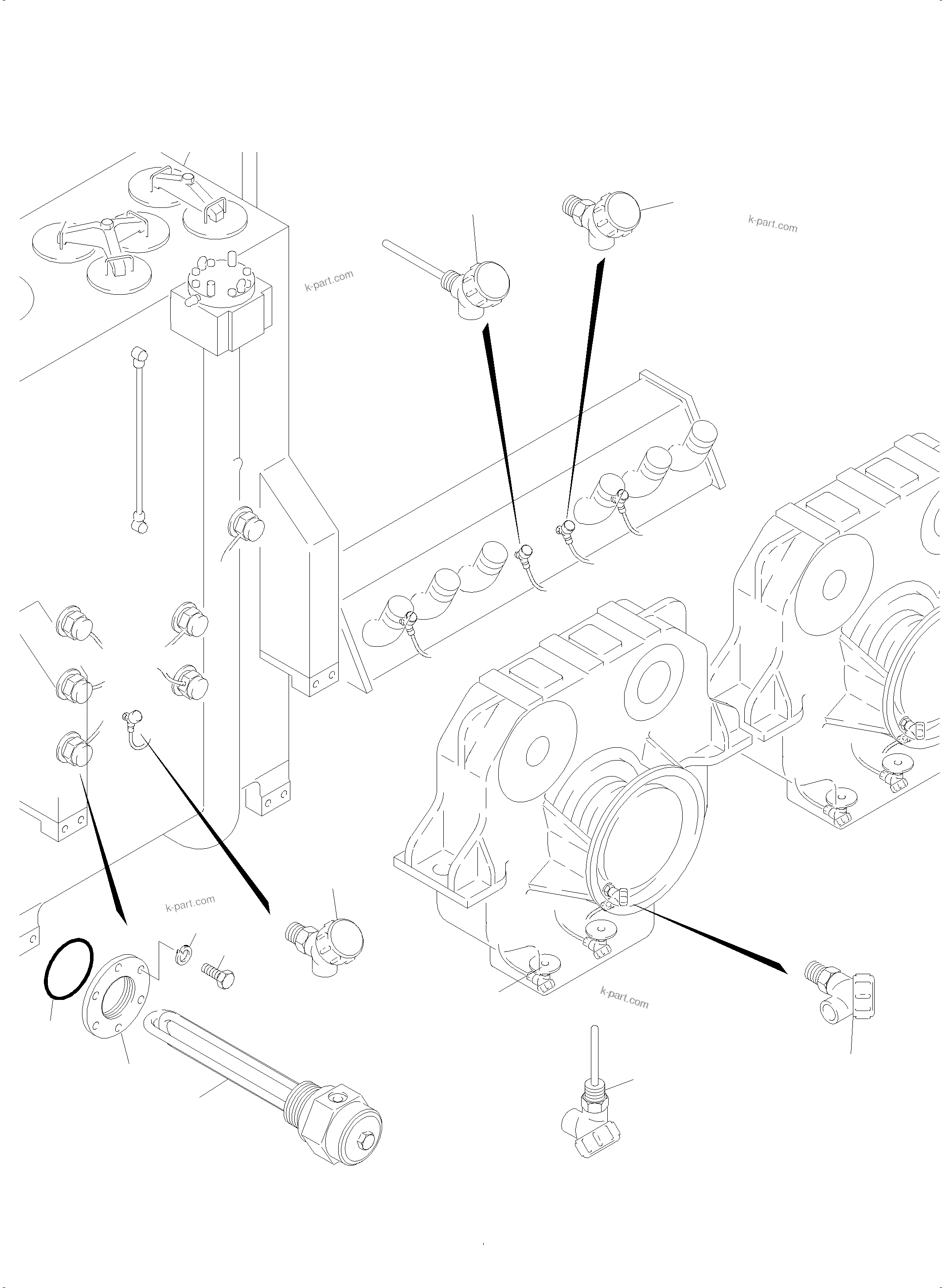

Diagram image 1 of 3

PC5500-6 S/N 15137

? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15137

? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		Coolant preheating arr.	2	991-0951
?	906 426 40	Battery heating plate set	2
?	906 370 40	Immersion heater	7
?	906 429 40	Immersion heater	6
?		Switch box	1	991-0404
?	906 371 40	Immersion heater	4
?	257 965 40	Thermostat	8
?	006 739 98	O-ring	6
?	307 752 99	Bolt	36
?	346 510 99	Lock washer	36
?	621 579 40	Adapter	2
?	939 157 40	Adapter	4
?	372 478 99	Union	2
?	551 457 40	Union	2
?	372 477 99	Union	4
?	551 345 40	Union	4
?	516 281 98	Socket	2
?	514 116 98	Hose assy. DN 20x2600	2
?	513 482 98	Hose assy. DN 20x2800	1
?	518 241 98	Hose assy. DN 20x2900	1
?	514 114 98	Hose assy. DN 20x1700	1
?	513 495 98	Hose assy. DN 20x1630	1
?	534 004 99	Cover plate	12
?	515 628 98	Grommet	12
?	518 032 98	Clamp set	12
?	504 788 98	Screw	12
?	308 581 99	Bolt	24
?	251 816 40	Flange	6
?	941 614 40	Seal	4
?	317 319 40	Threaded block	4
?	307 754 99	Bolt	4
?	340 464 99	Washer	4
?	374 439 99	Socket	4
?	516 187 98	Socket	4
?	305 991 99	Ball cock	2
?	307 780 99	Bolt	4
?	516 824 98	Union	2
?	340 465 99	Washer	4
?	0443452711	Clamp DN23	10
?	511 773 98	Thread pin	6
?	507 037 98	Nut	10
?	510 741 98	Resilient sleeve	6
?	914 705 40	Flange	4
?	504 643 98	Socket	2
?	371 277 99	Union nut	4
?	906 752 40	Olive	4
?	517 122 98	Lock washer	24
?	504 789 98	Catch	6
?	516 160 98	Socket	4
?	516 161 98	Socket	1
