BOOM 7.6 M | PC5500-6 S/N 15137 | Komatsu parts book catalogue

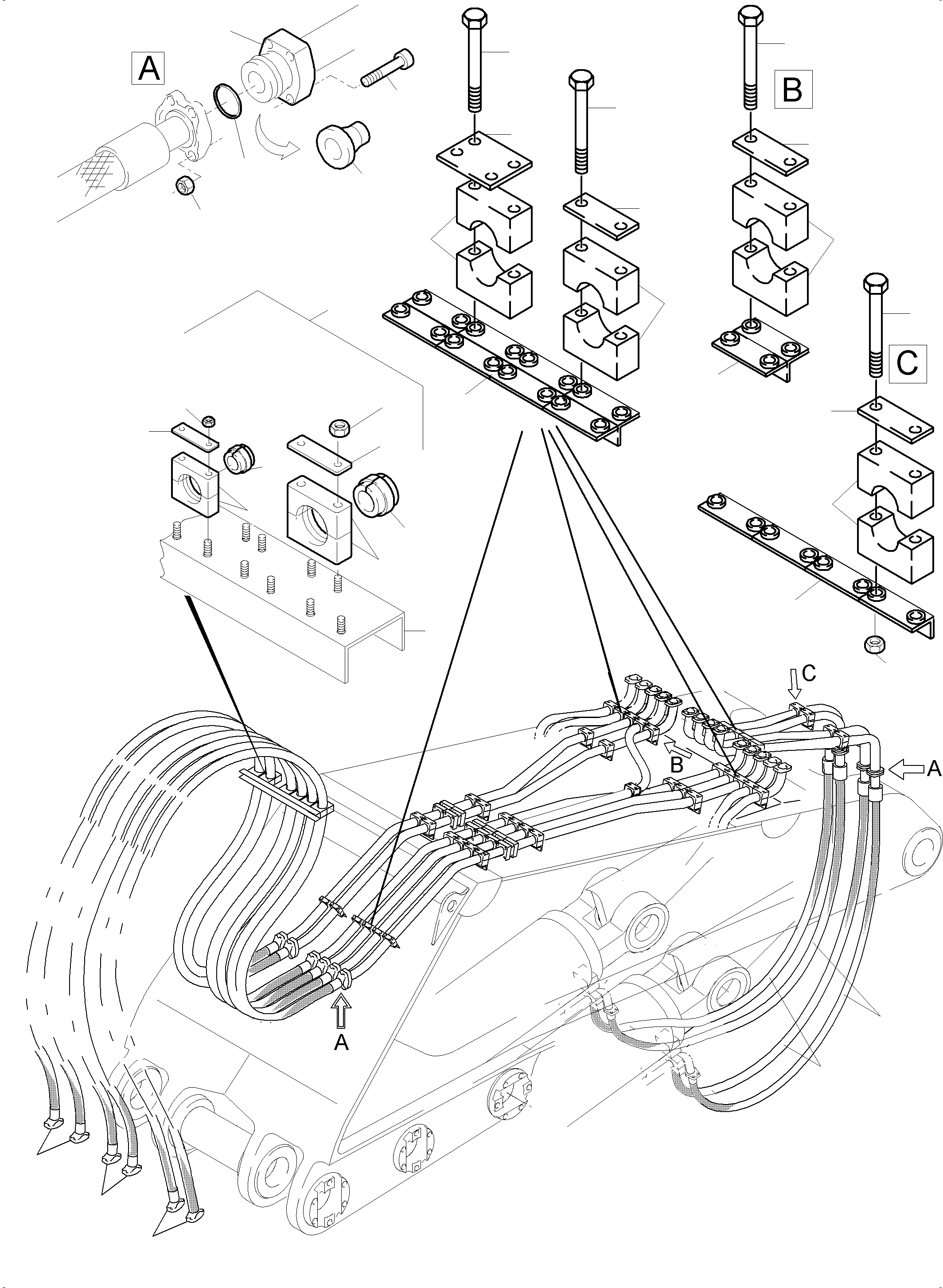

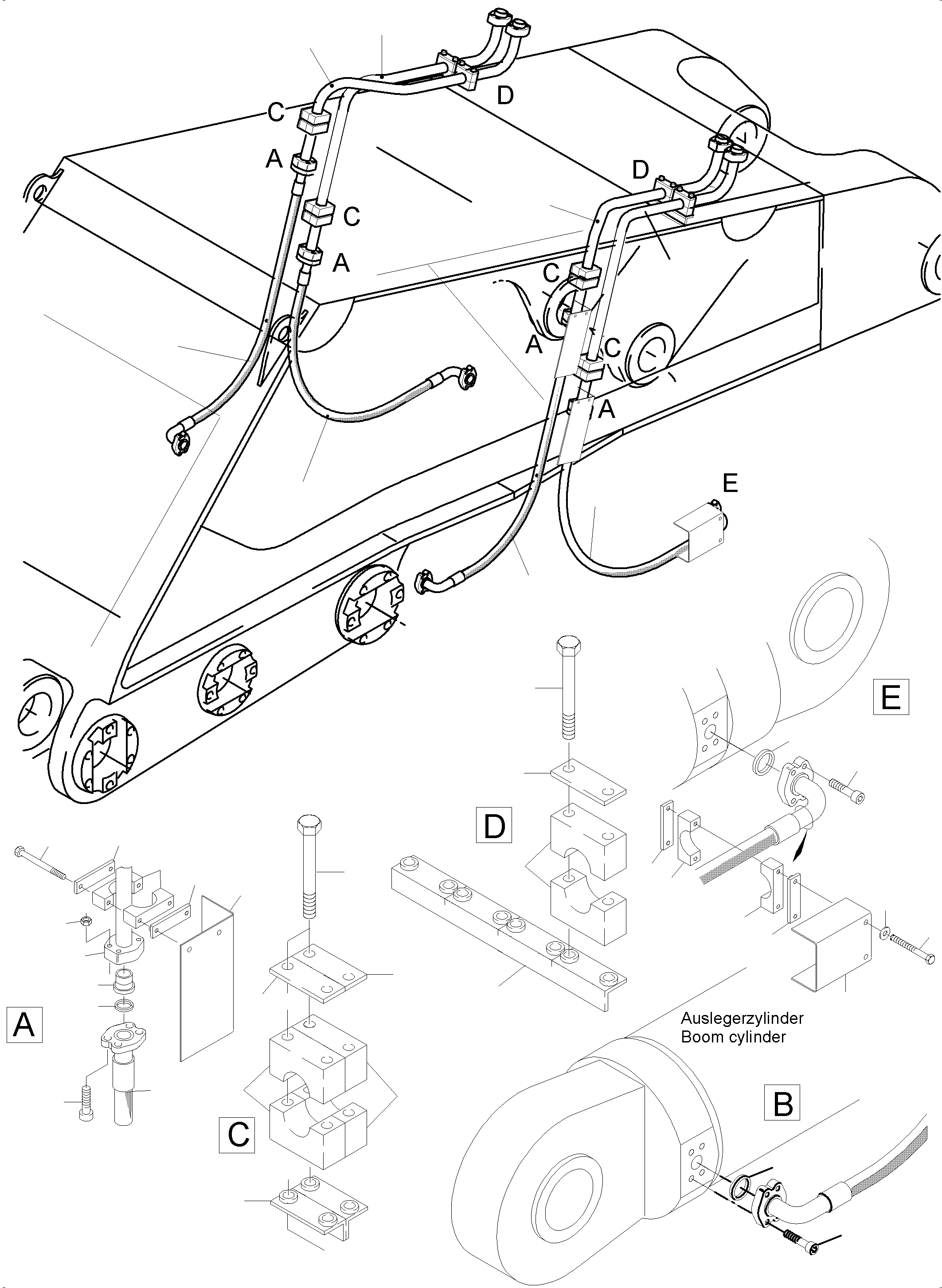

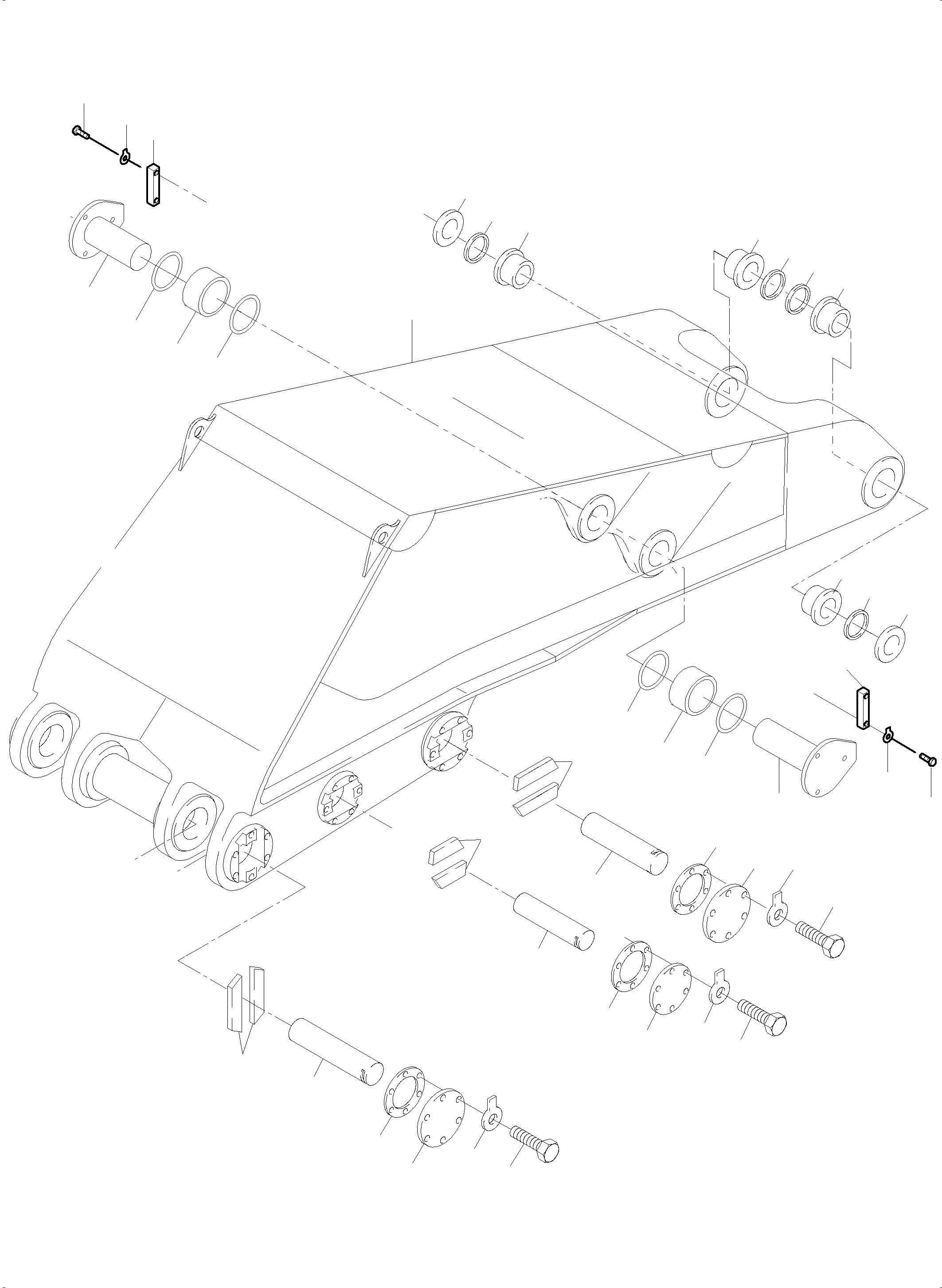

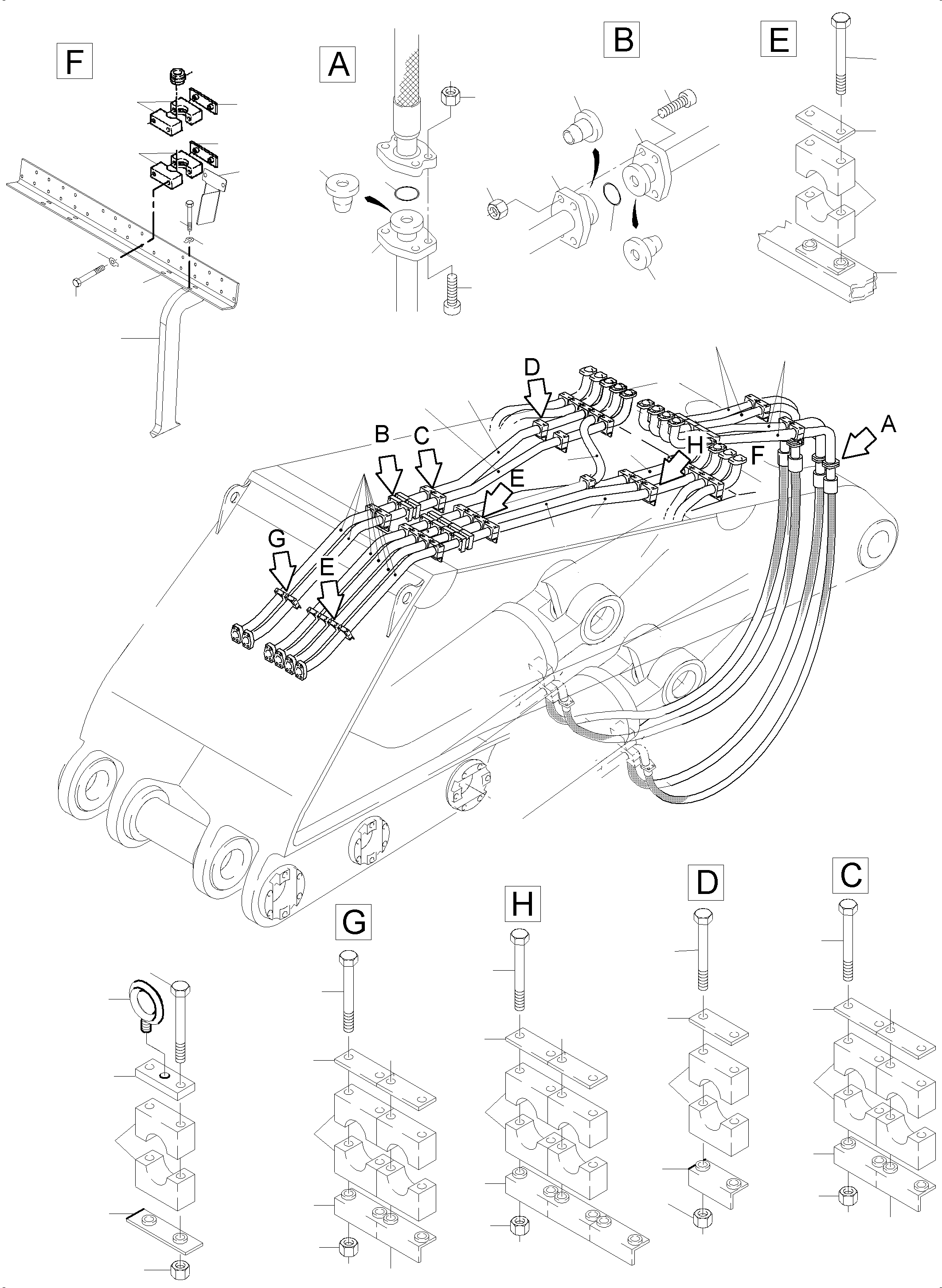

Diagram image 1 of 4

PC5500-6 S/N 15137

12 24 24 24 25 25 25 26 26 26 28 29 30 31 32 33 38 39 41 41 41 56 57 58 61 62 63 64 65 66 68 69 71 72 73 79 80 81

PC5500-6 S/N 15137

01 02 03 04 05 05 06 06 06 06 07 07 07 07 08 08 08 08 09 10 11 12 13 14 15 16 17 18 18 18 19 19 19 59 59 75 75 76 76 77 77 78 78

PC5500-6 S/N 15137

23 24 24 24 24 25 25 25 25 25 26 26 27 27 27 29 30 31 31 31 32 33 34 34 40 40 40 40 40 44 45 46 47 72 86 87 89 89 90 90 91 91

PC5500-6 S/N 15137

101 103 104 105 19 20 21 22 24 25 25 25 25 25 26 26 26 26 27 28 28 28 28 29 30 30 31 31 32 33 33 35 35 36 37 43 48 49 50 51 52 52 53 54 55 68 74 81 81 81 81 88 90 91 92 93 93 94 95 95 96 97 98

#	Part Number	Partname	Quantity
01	953 536 40	Bullclam bucket boom 7,6 m	1
02	911 043 40	Pin (cold weather design)	2
03	911 044 40	Pin (cold weather design)	2
04	971 204 40	Pin (cold weather design)	2
05	627 572 40	Freeze-in bush	2
06	907 022 40	Pin seal ring	4
07	932 140 40	Flanged bush	4
08	907 028 40	Pin seal ring	4
09	911 046 40	Axle stirrup	4
10	911 047 40	Ring	2
11	911 048 40	Cover	2
12	900 750 40	Axle stirrup	4
13	911 049 40	Ring	2
14	911 134 40	Cover	2
15	971 210 40	Axle stirrup	4
16	911 136 40	Ring	2
17	890 989 40	Cover	2
18	307 829 99	Bolt	32
19	517 123 98	Lock washer	63
20	890 939 40	Angle	1
21	301 894 40	Angle	3
22	301 893 40	Angle	2
23	911 138 40	Angle assy.	4
24	504 445 98	Pair of Clamps	52
25	534 008 99	Cover plate	73
26	510 151 98	Bolt	140
27	517 118 98	Lock washer	12
28	504 446 98	Pair of Clamps	18
29	504 448 98	Flange	28
30	504 449 98	Ring	34
31	385 243 40	Flange seal	42
32	319 313 99	Bolt	120
33	504 662 98	Nut	144
34	319 305 99	Bolt	24
35	504 898 98	Flange	12
36	504 461 98	Ring	6
37	502 538 98	Bolt	24
38	940 323 40	Hose assy. DN 50x2600	2
39	940 380 40	Hose assy. DN 50x2700	2
40	940 386 40	Hose assy. DN 50x3200	4
41	940 328 40	Hose assy. DN 50x3200	6
43	303 983 40	Angle	3
44	792 466 73	Pipe assy. Ш 65	1
45	792 467 73	Pipe assy. Ш 65	1
46	792 468 73	Pipe assy. Ш 65	1
47	792 469 73	Pipe assy. Ш 65	1
48	792 470 73	Pipe assy. Ш 65	1
49	792 471 73	Pipe assy. Ш 65	1
50	792 472 73	Pipe assy. Ш 65	1
51	792 473 73	Pipe assy. Ш 65	1
52	792 474 73	Pipe assy. Ш 65	2
53	792 475 73	Pipe assy. Ш 65	2
54	792 476 73	Pipe assy. Ш 65	2
55	793 092 73	Pipe assy. Ш 65	6
56	932 141 40	Angle	1
57	307 826 99	Bolt	3
58	332 355 99	Nut	3
59	922 116 40	Ring	2
61	952 786 40	Distribution block assy.	1
62	949 447 40	Strip	1
63	504 853 98	Pair of Clamps	6
64	505 212 98	Grommet	6
65	502 618 98	Pair of Clamps	1
66	504 926 98	Grommet	1
68	334 601 99	Nut	28
69	534 004 99	Cover plate	1
71	507 037 98	Nut	2
72	674 474 40	Angle	4
73	972 576 40	Angle	2
74	647 325 40	Angle	1
75	922 244 40	Pin with plate	2
76	908 658 40	Connector plate	2
77	307 886 99	Bolt	4
78	340 471 99	Washer	4
79	502 965 98	Cover plate	2
80	502 879 98	Bolt	8
81	334 600 99	Nut	148
86	935 549 40	Guard plate	1
87	935 546 40	Guard plate	2
88	943 153 40	Guard plate	5
89	502 658 98	Pair of clamps	1
90	534 009 99	Weld on plate	11
91	308 613 99	Bolt	6
92	943 156 40	Retainer	4
93	500 399 98	Weld on plate	14
94	504 854 98	Grommet	14
95	509 064 98	Pair of clamps	14
96	304 352 99	Bolt	28
97	307 806 99	Bolt	8
98	943 154 40	Angle	1
101	964 913 40	Cover plate	8
103	504 814 98	Clamp set	8
104	950 498 40	Heave point	8
105	308 645 99	Bolt	16
