DRIVE GEAR BOX | PC5500-6 S/N 15137 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

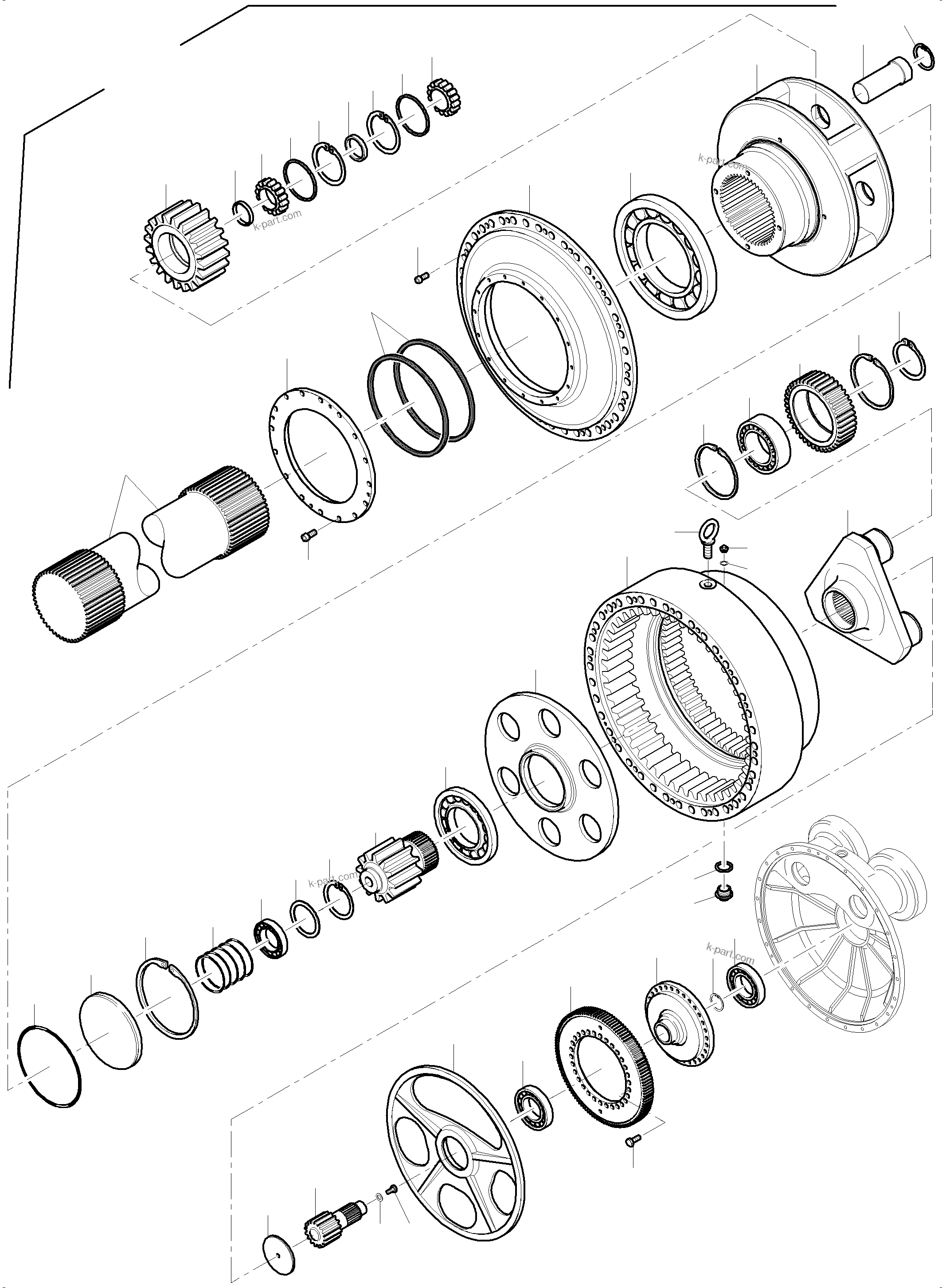

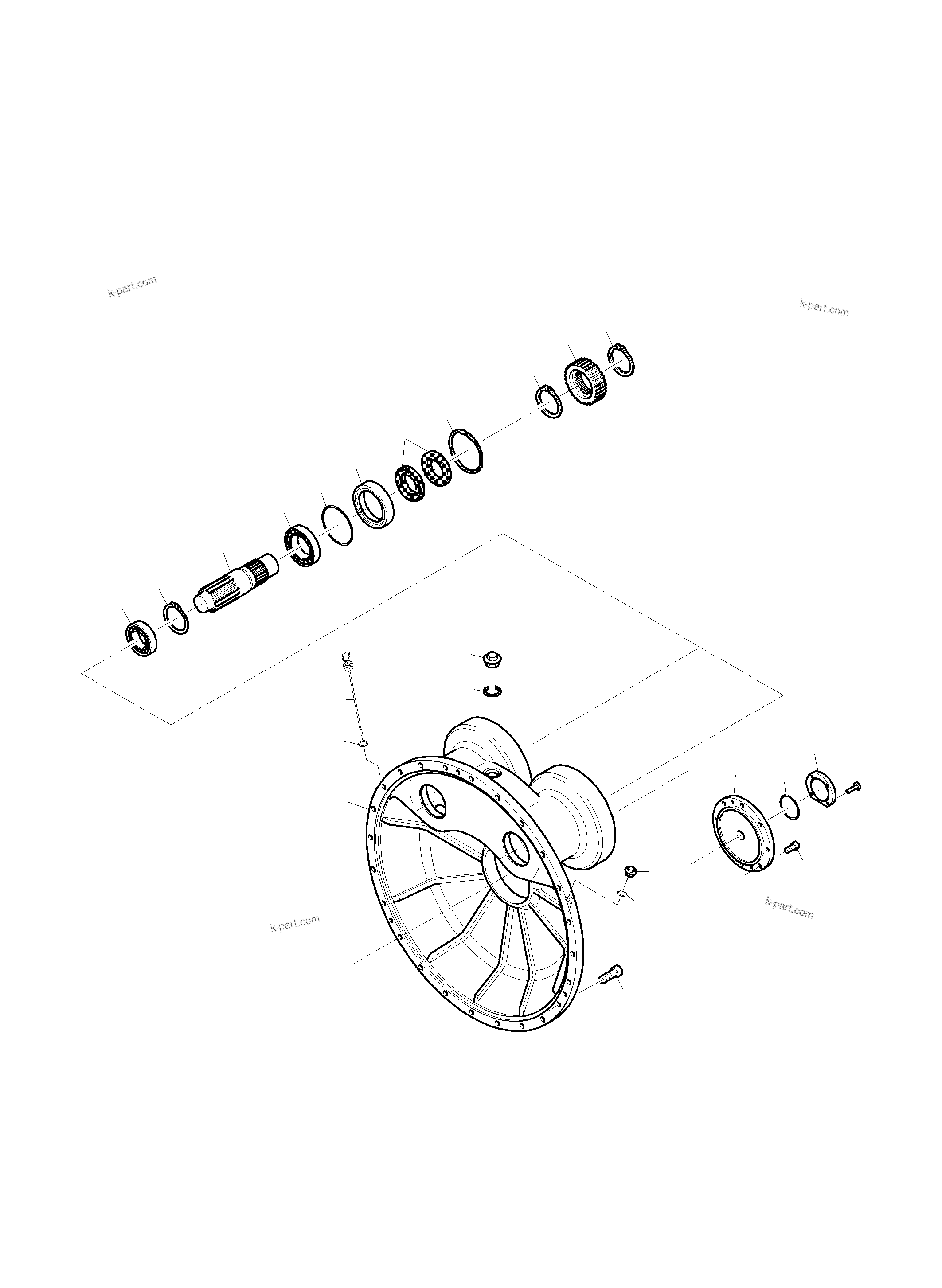

Diagram image 1 of 2

PC5500-6 S/N 15137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	927 842 40	Drive gear box,without drive shaft	1
?		Spring pressure disk brake	2	991-0615
?	793 641 73	Ring gear	1
?	793 642 73	Support ring	1
?	793 643 73	Support ring	1
?	793 644 73	Planet carrier	1
?	793 645 73	Spacer ring	4
?	793 646 73	Planet carrier	4
?	806 386 73	Support Disk	1
?	793 647 73	Sun gear shaft	1
?	793 648 73	Planet gear	3
?	793 649 73	Sun gear shaft	1
?	793 650 73	Planet gear	4
?	793 651 73	Spur wheel	1
?	793 652 73	Input shaft	2
?	793 653 73	Support ring	1
?	793 654 73	Planet bolt	4
?	793 655 73	Bearing ring	1
?	793 656 73	Cover	1
?	793 657 73	Cover	1
?	793 658 73	Spacer ring	4
?	508 644 98	Spherical roller bearing	3
?	504 839 98	Cylindrical roller bearing	8
?	502 496 98	Cylindrical roller bearing	1
?	509 231 98	Cylindrical roller bearing	1
?	361 455 99	Cylindrical roller bearing	2
?	361 299 99	Cylindrical roller bearing	2
?	517 922 98	Ball bearing	1
?	793 659 73	Locating ring	8
?	793 660 73	Cover	1
?	506 893 98	Disc	1
?	793 661 73	Bolt	1
?	517 919 98	Radial shaft seal ring	2
?	342 668 99	Circlip	2
?	342 675 99	Circlip	4
?	255 055 40	Circlip	1
?	342 497 99	Circlip	1
?	342 696 99	Circlip	8
?	342 682 99	Circlip	2
?	342 666 99	Circlip	1
?	342 684 99	Circlip	3
?	342 707 99	Circlip	6
?	517 923 98	Support disk	1
?	504 596 98	O-ring	2
?	508 922 98	Cylindrical roller bearing	2
?	414 012 40	O-ring	5
?	342 566 99	Snap ring	4
?	500 414 98	O-ring	1
?	082 821	O-ring	1
?	315 507 99	Eye bolt	1
?	514 423 98	Bolt	4
?	319 186 99	Bolt	16
?	319 287 99	Bolt	24
?	514 233 98	Bolt	8
?	319 571 99	Bolt	16
?	501 532 98	Plug	2
?	339 796 99	Seal ring	2
?	313 314 99	Plug	2
?	340 294 99	Seal ring	1
?	795 098 73	Dipstick	1
?	795 096 73	Seal ring	2
?	795 097 73	Shaft	1
?	307 785 99	Bolt	30
?	517 924 98	Wire Ш 2mm / Lg. 50 mm	-2
?	757 363 73	Cam	1
?	517 920 98	Radial shaft seal ring	4
?	793 663 73	Planet carrier assy consist of Pic-No.06, 09, 11, 12, 23, 43	1
?	793 664 73	Planet carrier assy 07,08,09, 10, 18 19, 22, 24, 29, 36, 37, 38, 39, 44, 48, 50	1
?	940 443 40	Drive gear box, plus drive shaft 927 893 40	1
?	799 351 73	Seal kit consist. of pos. 34,45,48,50,51,63,65,72	1
?	799 352 73	Bearing kit consist. of pos. 23,24,25,26,27,28,46	1
