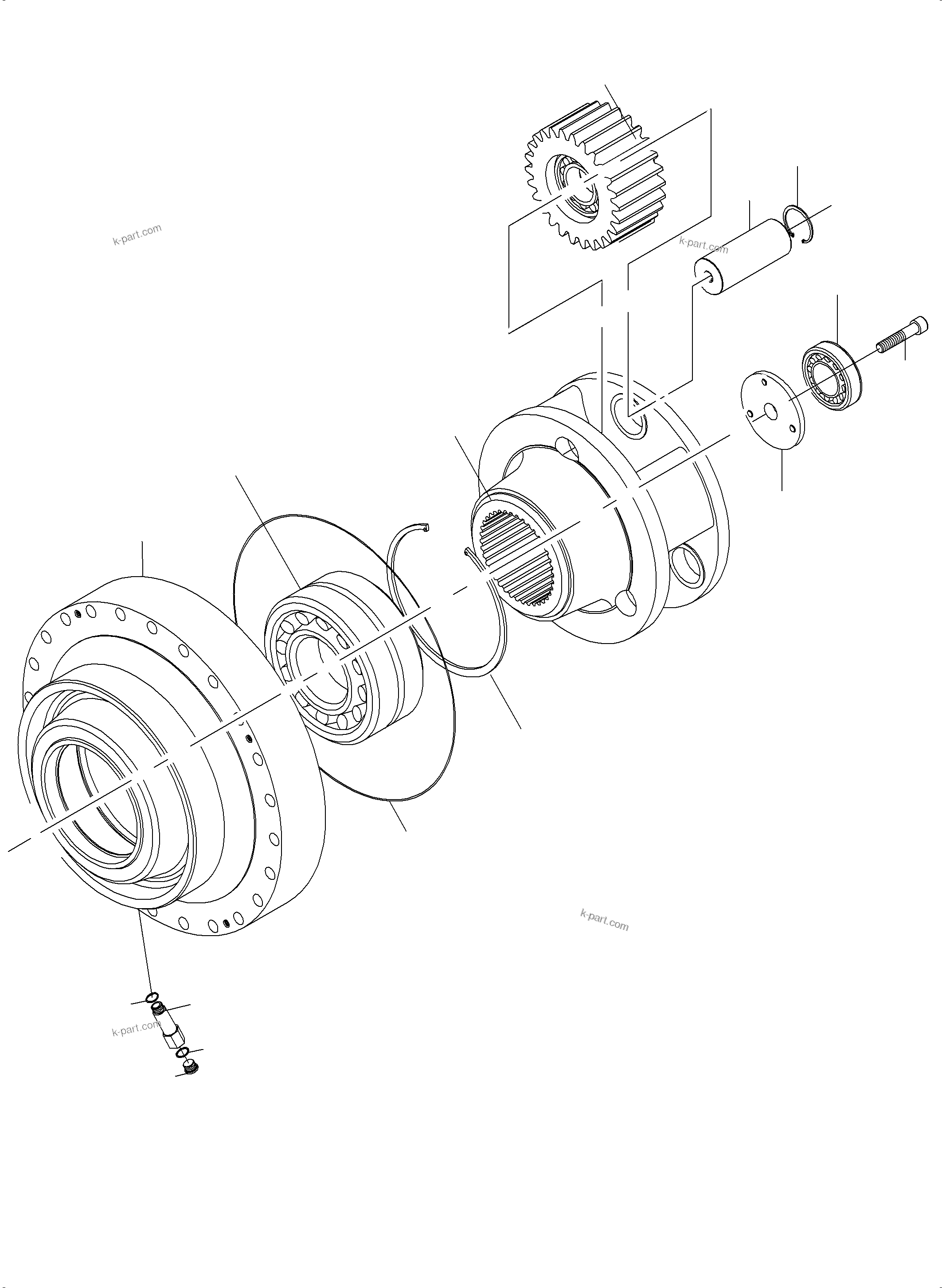

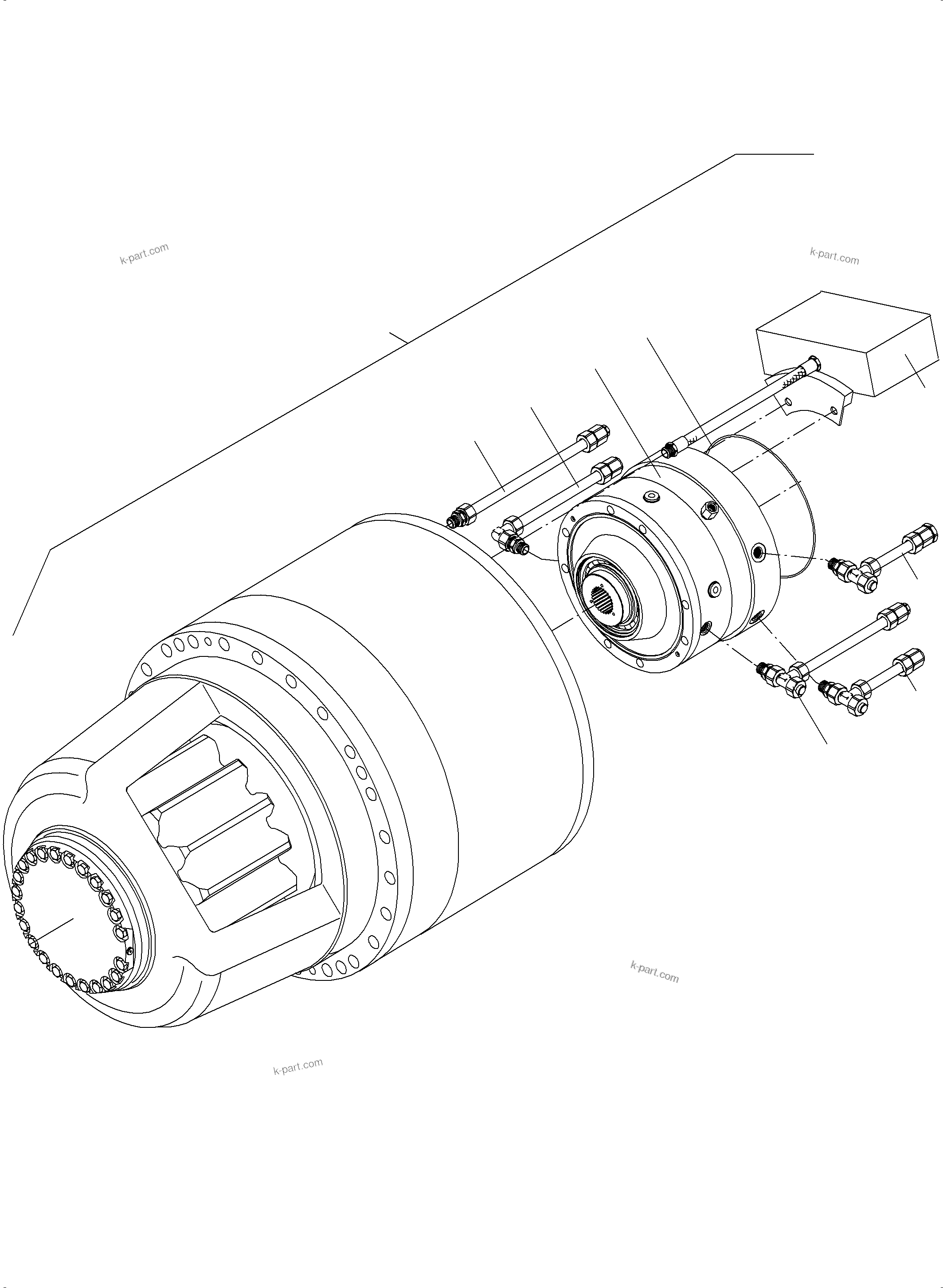

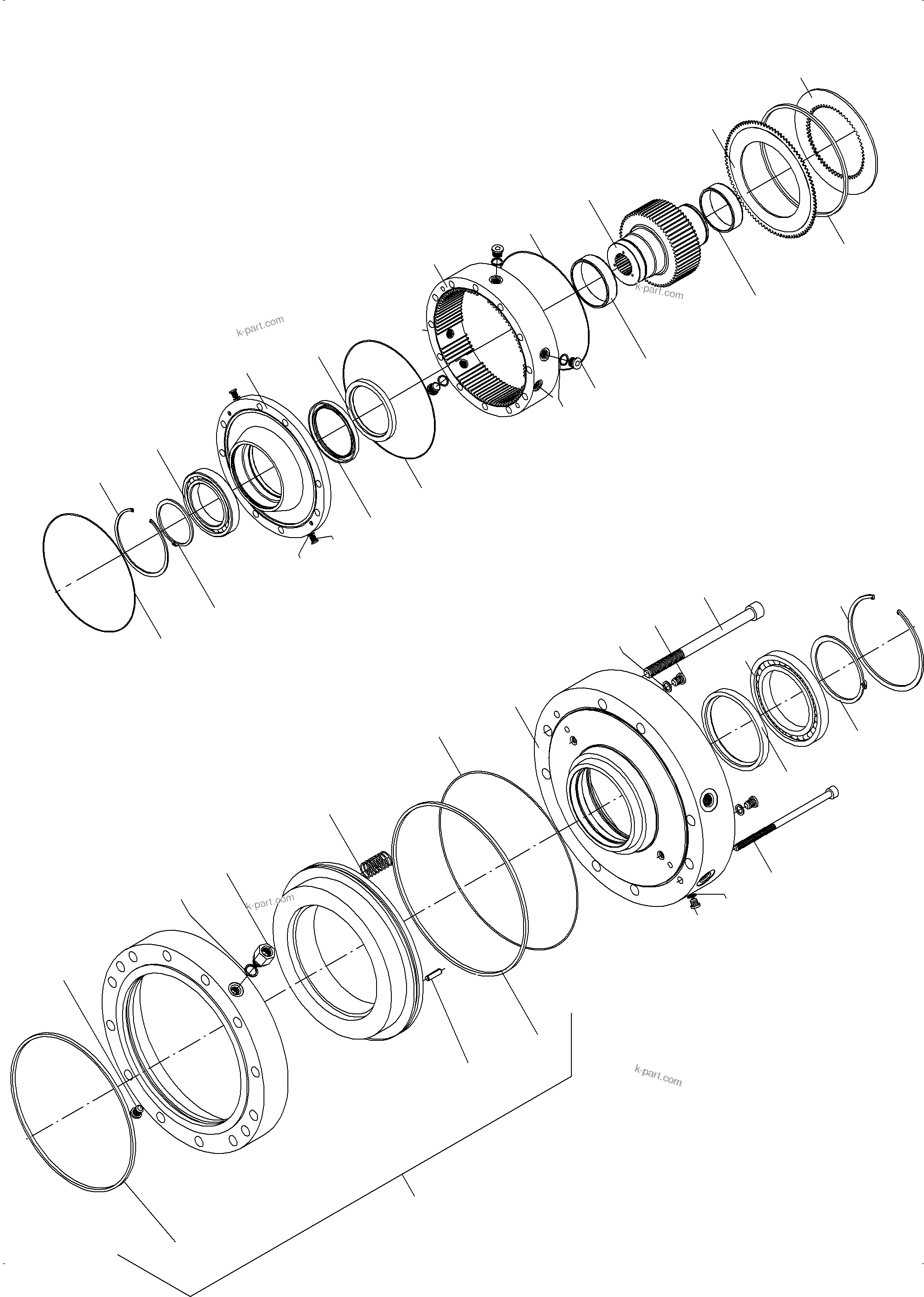

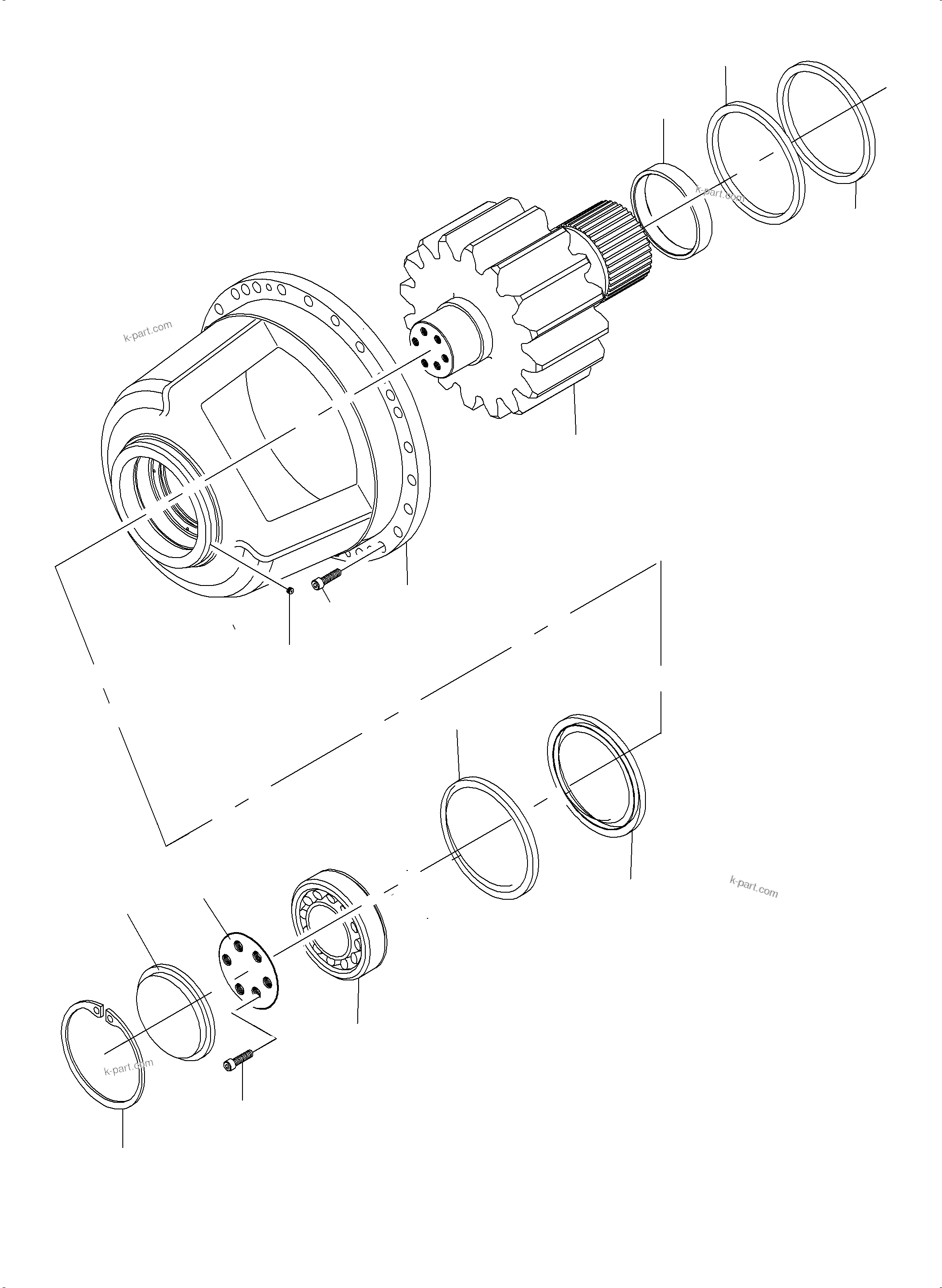

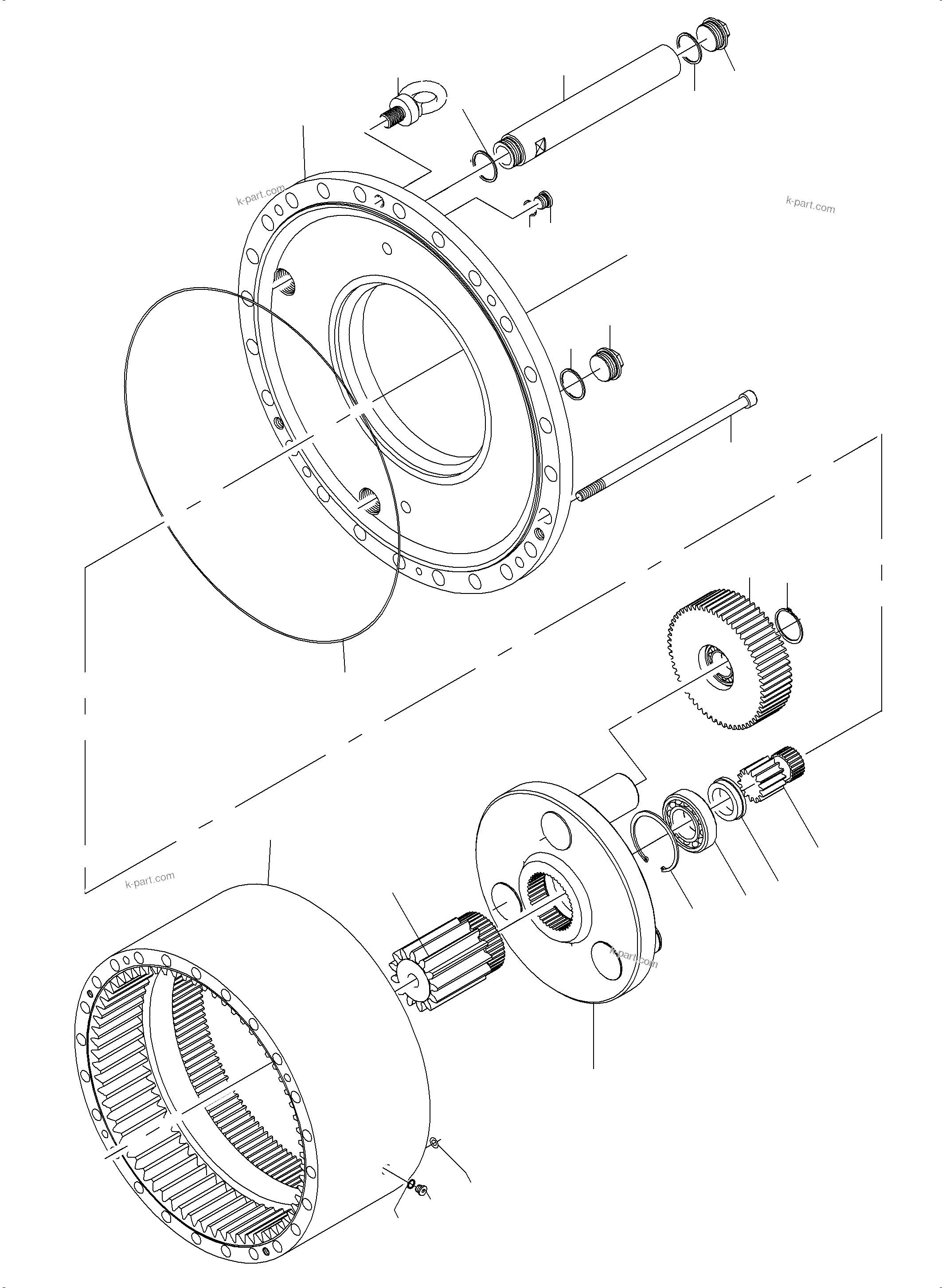

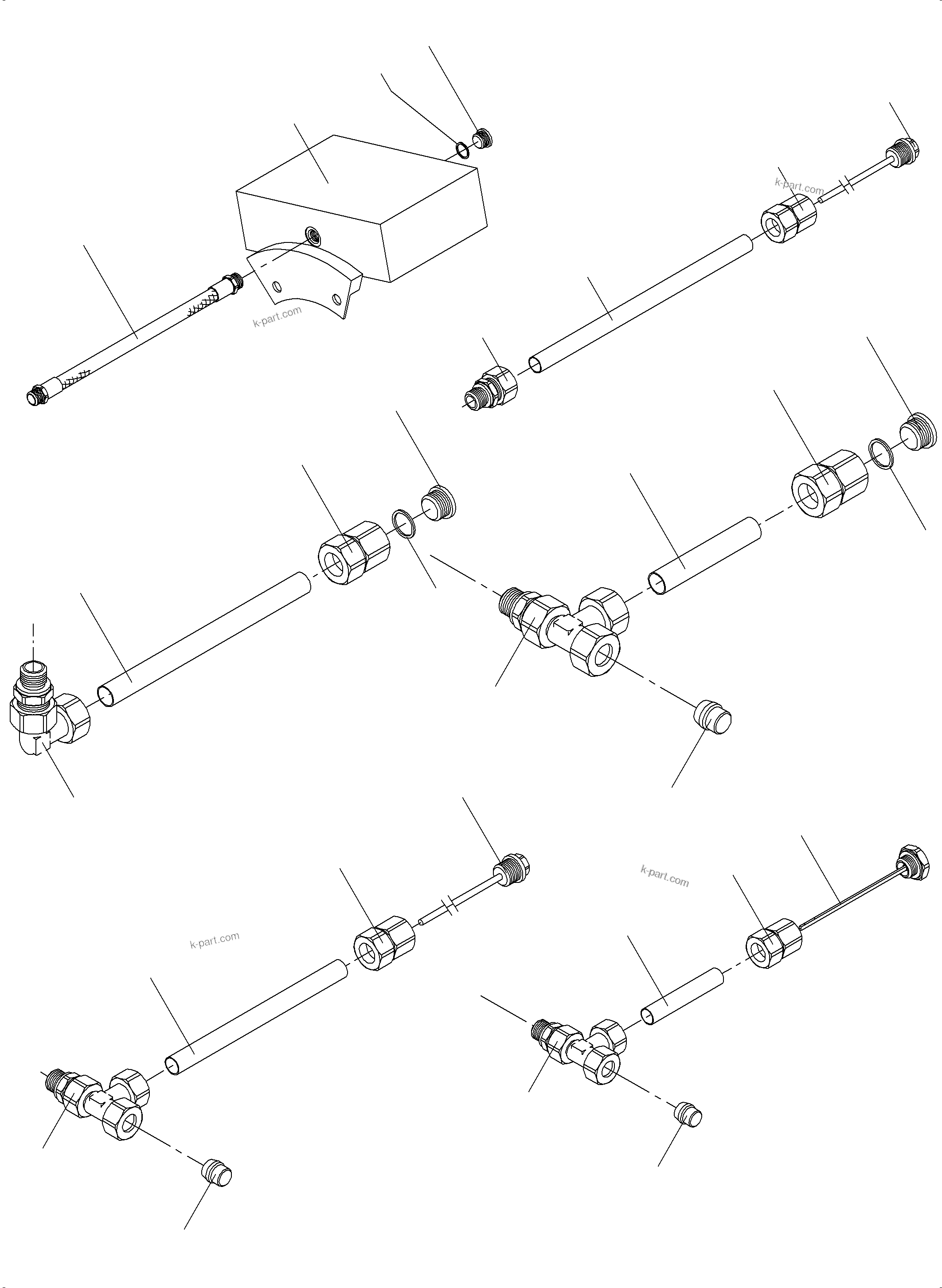

Diagram image 1 of 6

PC5500-6 S/N 15137

? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15137

? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	944 872 40	Slew gear	1
?	795 836 73	Disc brake assy. consist. of fig nos. 60-93	1
?	795 995 73	Repair kit brake (fig nos.65-68,74,75,77,80,89,91)	1
?	769 688 73	Expansion tank consist. fig nos. 94-97	1
?	769 689 73	Dipstick - gearbox assy. consist.of fig nos. 98-101	1
?	769 690 73	Oil drain - engine room assy. consist. of fig nos. 102-107	1
?	769 691 73	Dipstick - engine room assy. consist. of fig nos 108-112	1
?	769 692 73	Breather assy. consist. of fig nos. 113-117	1
?	769 693 73	Dipstick - brake housing assy. consist.of fig nos. 118-122	1
?	972 122	O-ring	1
?	769 695 73	Sun gear	1
?	797 689 73	Planetary assy.	3
?	795 838 73	Sun gear	1
?	797 644 73	Planetary assy.	3
?	793 288 73	Ring gear	1
?	798 245 73	Trunnion support assy. With pins	1
?	769 702 73	Race	1
?	797 329 73	Planetary carrier	1
?	769 704 73	Pin	3
?	795 840 73	Adapter	1
?	797 330 73	Bearing bush	1
?	797 331 73	Bearing hub	1
?	797 332 73	Cover	1
?	797 333 73	Spacer	1
?	797 334 73	Inner ring	1
?	797 335 73	Pinion shaft	1
?	797 336 73	Extension	1
?	769 713 73	Extension	1
?	360 457 99	Roller bearing	1
?	360 456 99	Roller bearing	1
?	362 039 99	Self-aligning bearing	1
?	797 337 73	Self-aligning bearing	1
?	797 339 73	Shaft seal	1
?	797 340 73	Shaft seal	1
?	797 341 73	V-seal	1
?	342 560 99	Circlip	3
?	342 662 99	Circlip	3
?	342 676 99	Circlip	1
?	501 933 98	Circlip	1
?	515 722 98	Bolt	4
?	516 352 98	Bolt	4
?	512 963 98	Bolt	6
?	516 354 98	O-ring	2
?	500 305 98	O-ring	2
?	313 396 99	Plug	2
?	339 890 99	Seal ring	1
?	502 801 98	Plug	1
?	339 918 99	Seal ring	2
?	501 532 98	Plug	3
?	339 796 99	Seal ring	4
?	509 525 98	Grease nipple	2
?	797 342 73	Final disc	1
?	407 823 99	Plug	2
?	339 902 99	Seal ring	2
?	795 845 73	Bolt	3
?	795 846 73	Flange-mount	1
?	795 847 73	Disc carrier	1
?	795 848 73	Housing	1
?	795 849 73	Limit flange	1
?	793 294 73	Control linkage assy., incl. 92+93	1
?	793 295 73	Compression spring	6
?	769 720 73	Compression spring	12
?	769 721 73	Outer disc	8
?	769 722 73	Internal disc	7
?	769 723 73	Sine ring	7
?	500 049 98	Bolt	12
?	501 046 98	Hexagon socket head cap screw	2
?	795 850 73	Inner ring	1
?	796 052 73	Distance ring	1
?	763 292 73	Shaft seal	1
?	795 851 73	Rotary shaft seal	2
?	313 394 99	Plug	1
?	795 852 73	Seal ring	1
?	795 853 73	Union	1
?	795 854 73	Seal	1
?	795 855 73	O-ring	4
?	795 720 73	Hexagon head socket pipe plug	1
?	795 721 73	Grooved ball bearing	1
?	795 722 73	Grooved ball bearing	1
?	342 570 99	Circlip	1
?	342 571 99	Circlip	1
?	342 680 99	Circlip	1
?	342 682 99	Circlip	1
?	407 823 99	Hexagon head socket pipe plug	3
?	795 723 73	Seal ring	3
?	313 395 99	Hexagon head socket pipe plug	4
?	339 711 99	Seal ring	4
?	793 296 73	Seal kit (inner, outer)	1
?	345 062 99	Dowel sleeve	1
?	795 724 73	Equalizing reservoir	1
?	313 998 99	Hexagon head socket pipe plug	1
?	340 294 99	Sealing ring	1
?	795 725 73	Hose	1
?	795 726 73	Union piece	1
?	795 727 73	Union piece	1
?	215 754 99	Pipe l=305mm	1
?	793 297 73	Dipstick	1
?	795 728 73	Union piece	1
?	795 727 73	Union piece	1
?	795 729 73	Union piece	1
?	215 754 99	Pipe l= 100mm	1
?	313 398 99	Hexagon head socket pipe plug	1
?	340 294 99	Sealing ring	1
?	795 728 73	Union piece	1
?	795 727 73	Union piece	1
?	795 729 73	Union piece	1
?	215 754 99	Pipe l= 100mm	1
?	793 298 73	Screw plug w. fuel dip stick	1
?	795 727 73	Union piece	1
?	215 754 99	Pipe l= 220mm	1
?	795 730 73	Union piece	1
?	313 398 99	Hexagon head socket pipe plug	1
?	340 294 99	Sealing ring	1
?	795 728 73	Union piece	1
?	795 727 73	Union piece	1
?	793 299 73	Screw plug w. fuel dip stick	1
?	795 729 73	Union piece	1
?	215 754 99	Pipe l= 243mm	1
?	797 343 73	Pressure disc	1
?	519 575 98	Bolt	1
?	342 707 99	Circlip	1
?	799 340 73	Seal kit consist. of fig.nos. 10,47,48,50,52,54,58,79,92,96,107,117	1
?	799 341 73	Bearing kit consist. of fig.nos. 31-34	1

Komatsu PC5500-6 S/N 15137 parts catalog PDF

SLEW GEAR (991-0870b) in PC5500-6 S/N 15137. Diagram image and parts list.
