PC5500-6 S/N 15137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?		Operator's cab assy. Standard parts,	-2
?		part number see machine card	-2
?			-2
?		Drivers seat, parts page see machine card	-2
?		Hose	-2
?	793 738 73	Cable flange	2
?	350 378 99	Bolt	9
?	797 813 73	Cable	2
?		Bolt	8
?		Cap	4
?		Washer	4
?		Spacer	4
?		Pin	2
?		Bolt	4
?		Nut	4
?		Pin	2
?		Clamp	1
?	793 736 73	Safety lever assy.	1
?	793 737 73	Tension spring	1
?	319 140 99	Bolt	4
?	340 507 99	Washer	4
?	796 974 73	Arm	1
?	796 975 73	Plate	1
?	796 976 73	Lever	1
?	796 978 73	Hood	1
?	796 977 73	Taster	1
?		Co-drivers seat, parts page see machine card	1
?	307 429 99	Screw	4
?	509 870 98	Nut	2
?	510 321 98	Washer	6
?	343 869 99	Spring lockwasher	2
?		Blind rivet-nut	2
?	769 633 73	Air intake	6
?		Tapping screw	28
?		Round nozzle	1
?	769 636 73	Adjustment	1
?	769 635 73	Hot air jet	7
?	769 637 73	Hot air jet, long	4
?		Bolt	6
?		Step protection	2
?	769 638 73	Air intake	2
?		Speed nut	4
?		Bolt	12
?	332 203 99	Nut	12
?	340 497 99	Washer	12
?	793 801 73	Filter box	1
?	793 800 73	Filter box	1
?		Filter frame	1
?		Bolt	4
?	793 803 73	Filter mat	1
?		Filter retainer	1
?		Filter frame	1
?		Filter mat	1
?	907 748 40	Fire extinguisher	1
?	307 447 99	Screw	2
?	343 096 99	Spring lockwasher	2
?		Holding device - fire extinguisher	1
?		Air outlet	1
?		Bolt	2
?		Cover cap	2
?	793 735 73	Cover plate	1
?		Contact tape	-2
?	167 698 40	Dressing hook	2
?	504 784 98	Screw	4
?	500 286 99	Washer	4
?	334 649 99	Nut	4
?		Bridge	1
?		Plate	1
?	307 445 99	Bolt	4
?	507 037 98	Nut	4
?	506 890 98	Washer	8
?		Angle	1
?		Cover plate	1
?		Platform plate	1
?	514 217 98	Bolt	12
?		Contact tape	-2
?		Contact tape	-2
?		Coat hook	1
?		Bolt	2
?	769 602 73	Handle	1
?	321 205 99	Bolt	2
?		Resilient sleeve	2
?	797 588 73	Hammer	1
?	797 589 73	Retainer	1
?		Flap	1
?		Hinge	2
?	510 875 98	Nut	8
?		Bolt	8
?		Lock with lock washer	1
?		Blind rivet	2
?	798 875 73	Table plate assy.( Fig.-No.128-130 )	1
?	769 646 73	Ice box door	1
?	770 071 73	Hinge-ice-box door	2
?		Handle-ice box door	1
?		Frame ice box	1
?	798 888 73	Ice box assy.	1
?	319 132 99	Bolt	7
?	350 491 99	Washer	7
?	332 197 99	Nut	4
?		Hose	-2
?		Clamp	-2
?	510 746 98	Resilient sleeve	5
?	319 350 99	Bolt	5
?	798 819 73	Controller modul to. Fig.-No.132	1
?		Plate water heater	1
?		Cable retainer	2
?		Angle l.h.	1
?		Anglel r.h.	1
?		Bolt	4
?	541 071 98	Bolt	6
?	340 506 99	Washer	8
?		Nut	4
?		Washer	2
?		Lock washer	6
?		Water heater	1
?	514 071 98	Bolt	6
?	343 106 99	Lock washer	4
?	255 899 40	Hose fittings, straight	1
?	255 898 40	Hose fittings 90 ?	1
?		Hose	-2
?		Hose clip	6
?		Nut	2
?		Cover	1
?		Plate electric heating	1
?		Cover	1
?	799 428 73	Seal	1
?	516 246 98	Screw	16
?	510 321 98	Washer	6
?	770 060 73	Rubber disc	4
?		Seal	2
?		Blind rivet-nut	8
?	514 180 98	Bolt	8
?		Plate	1
?		Cover	1
?	770 081 73	Blind rivet-nut	5
?		Hood	1
?	269 055 40	Air filter	1
?	324 391 40	Blower	1
?	799 195 73	Hose	-2
?		Clamp	2
?	513 629 98	Bolt	5
?	514 071 98	Bolt	3
?	343 106 99	Lock washer	3
?	508 727 98	Washer	3
?	769 615 73	Antenna	1
?		Extension cable	1
?		Bolt	8
?		Extension cable	1
?	896 705 40	Pair of speakers assy.	1
?	797 854 73	Loudspeaker	2
?	797 855 73	Loudspeaker cover black	2
?	769 188 73	Dome lamp	4
?	769 189 73	Bulb 28V 20W	4
?	950 158 40	Spotlight	4
?	795 990 73	Cable Union	4
?		Tube Clamp	-2
?	512 465 98	Nut	4
?	795 989 73	Harness-Spread beam headlamp	1
?	769 611 73	Push-toggle switch	2
?	769 612 73	Graphical symbol - spotlight	1
?	769 613 73	Graphical symbol - indoor lighting	1
?	769 614 73	Tail piece	2
?		Socket installation	4
?	634 009 40	Spotlight	1
?	769 155 73	Seal	1
?	769 156 73	Pane, white	1
?	507 383 99	Halogen lamp	1
?	307 752 99	Bolt	1
?		Spout	1
?	769 589 73	Switch	1
?		Cable additional socket	2
?		Harness	1
?		Dummy plug	3
?		Pipe clamp	4
?		Clamp	1
?		Cable conduit	1

Komatsu PC5500-6 S/N 15137 parts catalog PDF

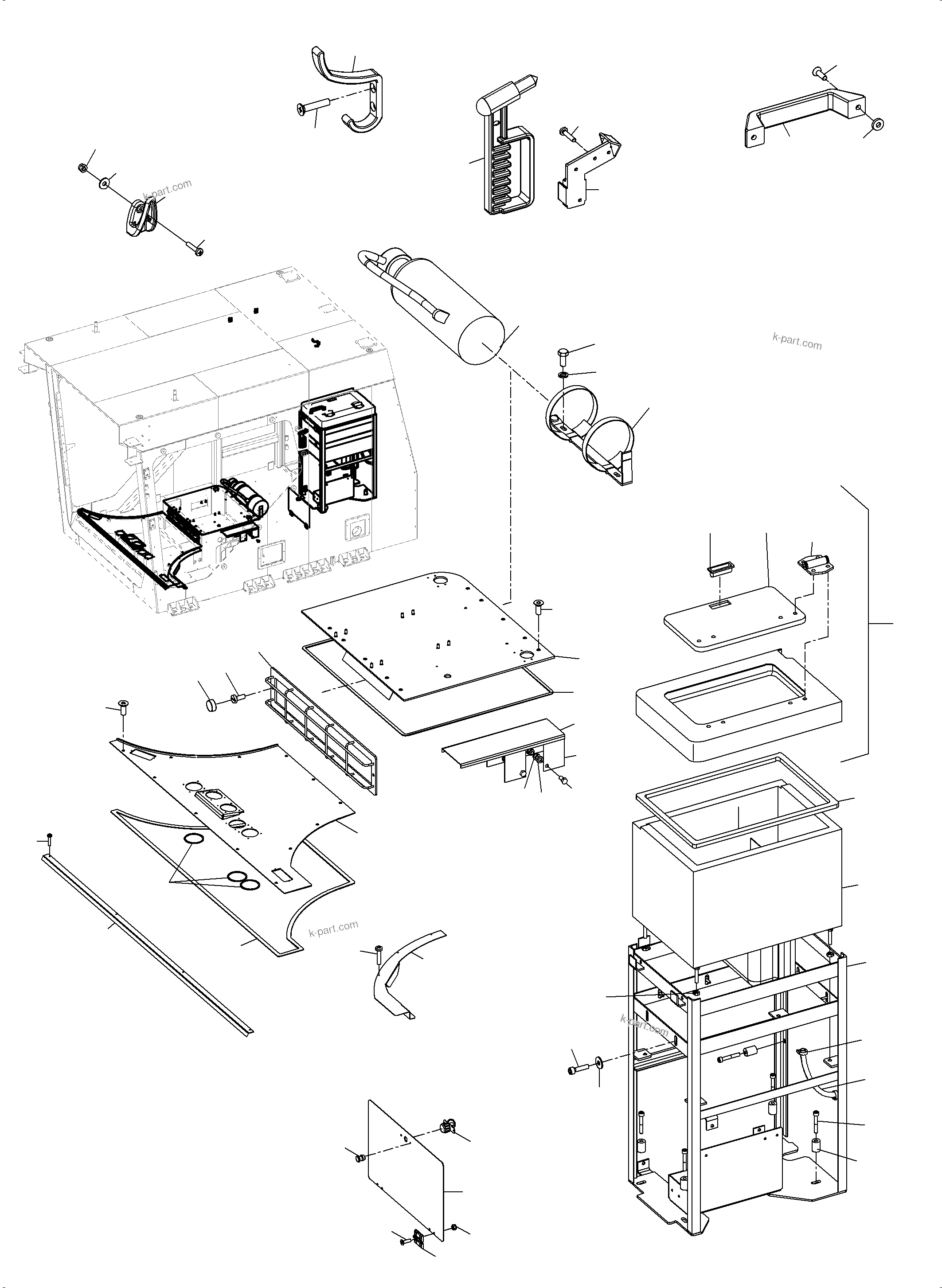

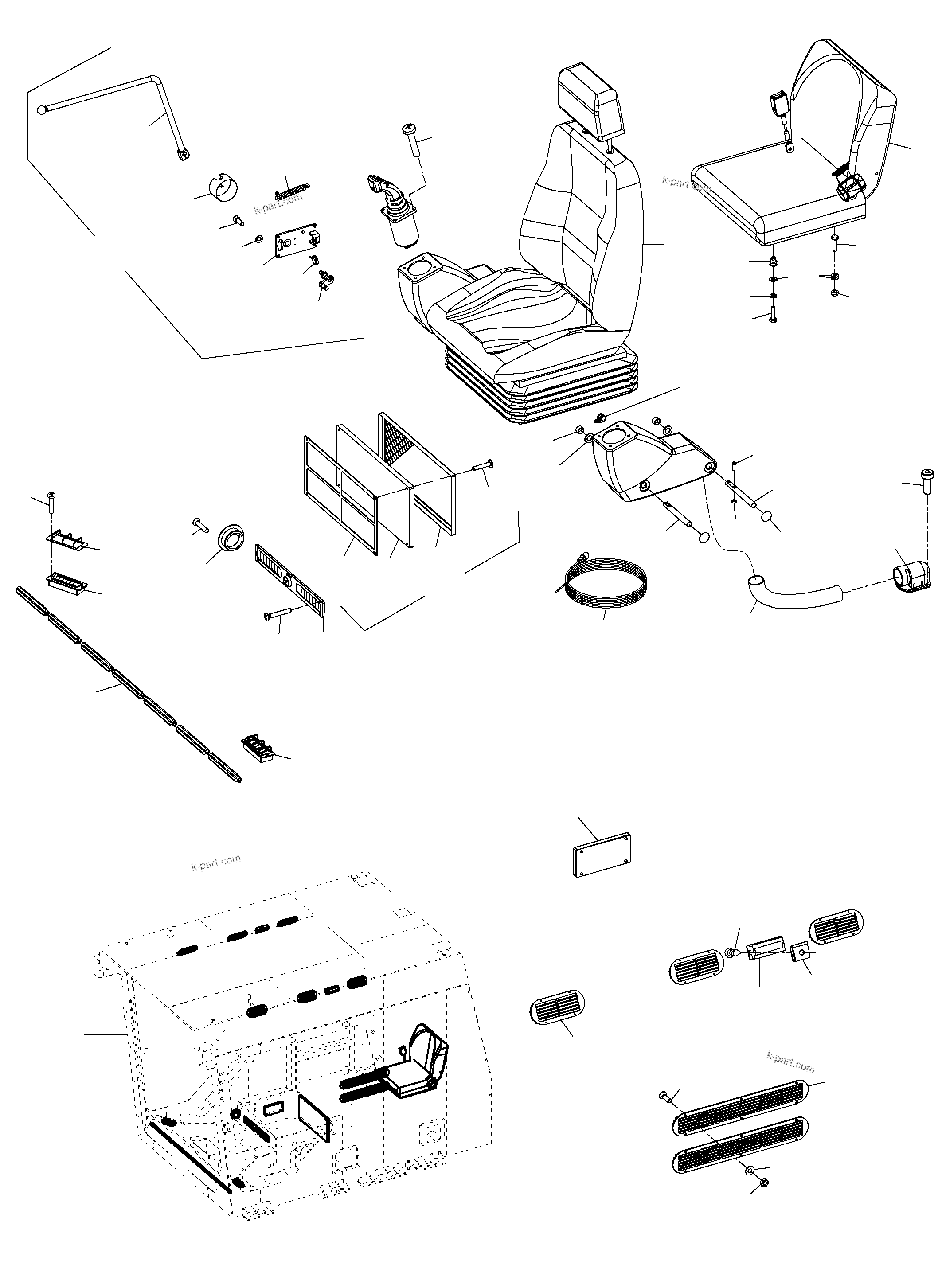

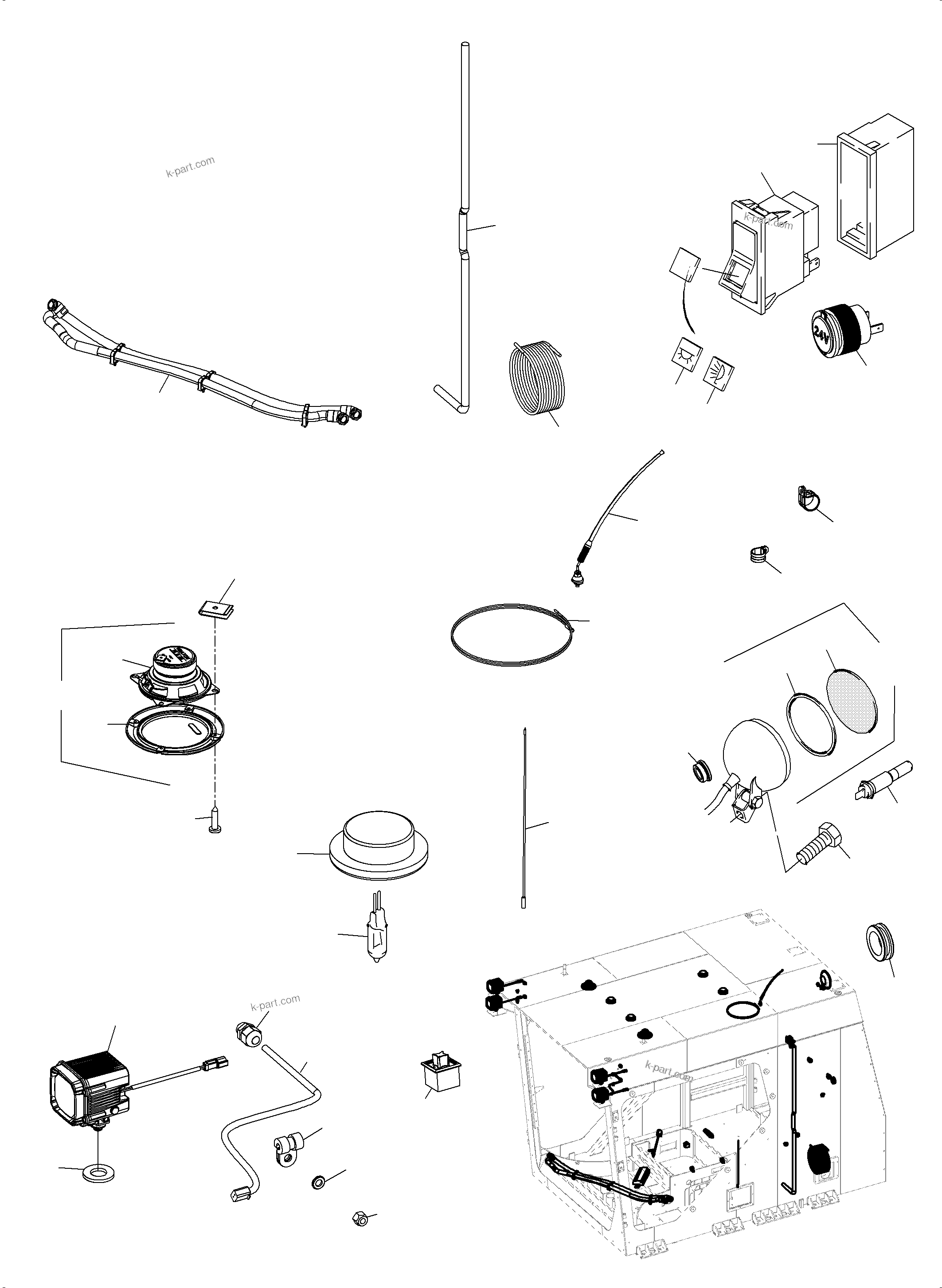

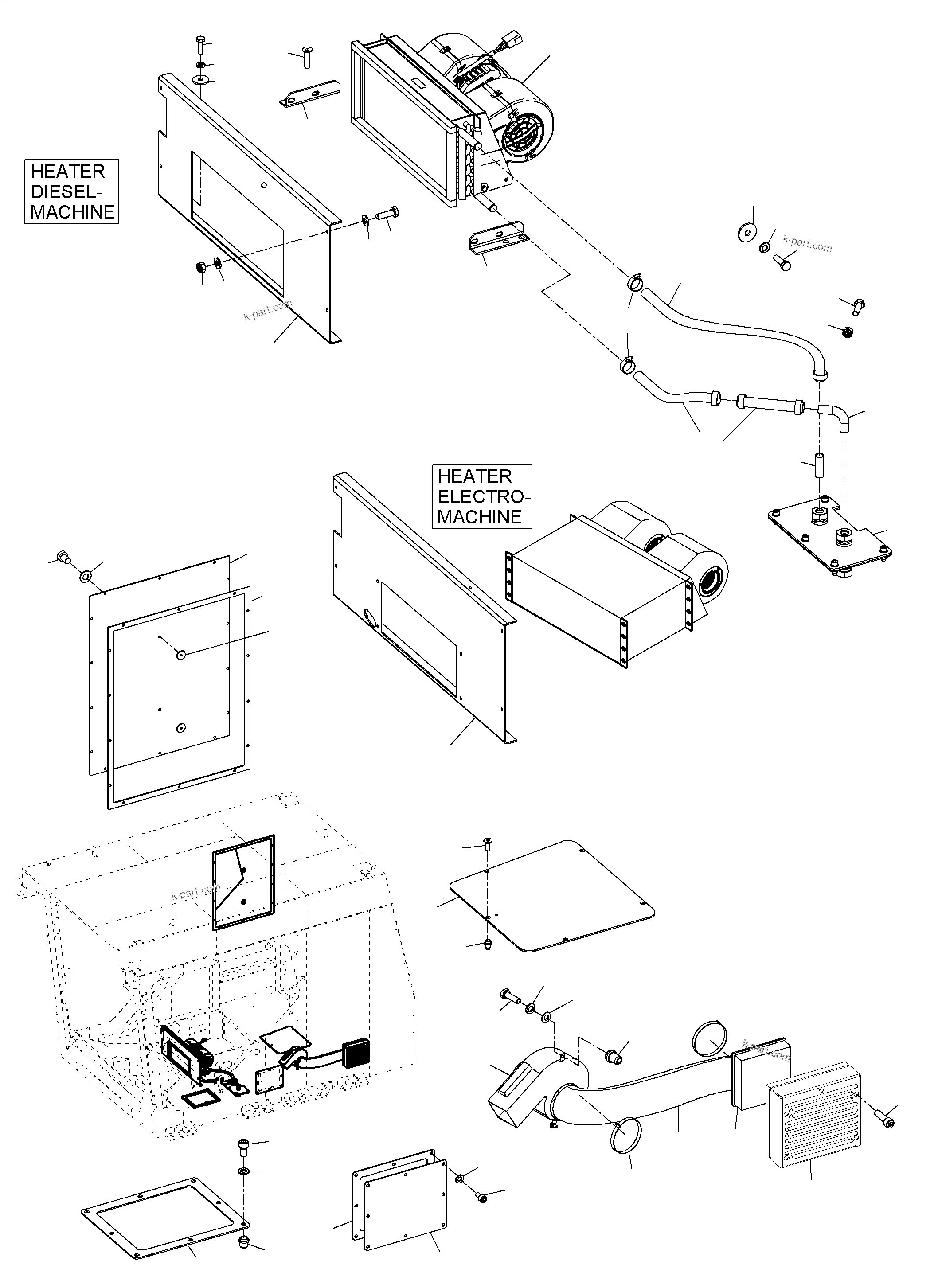

OPERATOR'S CAB PART 1 (991-0985a) in PC5500-6 S/N 15137. Diagram image and parts list.
