PC3000-6 S/N 46235

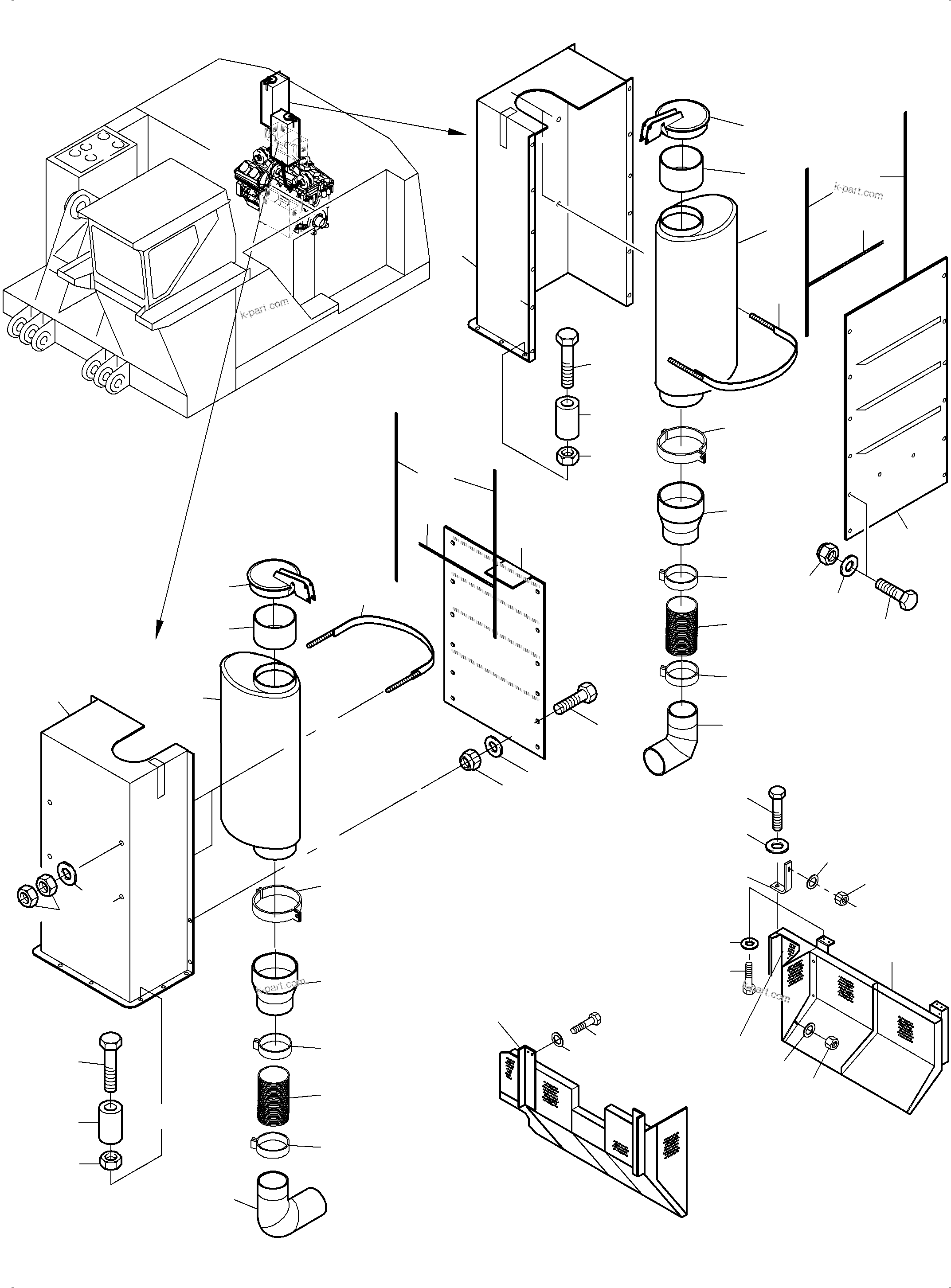

Komatsu parts book diagram for PC3000-6 S/N 46235: EXHAUST SYSTEM

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	210 976 40	Muffler	2
	?	912 486 40	Holding device, muffler	2
	?	894 302 40	Exhaust pipe assy.	2
	?	923 988 40	Exhaust pipe	1
	?	923 989 40	Exhaust pipe	1
	?	941 668 40	Weather protecting cap	2
	?	894 268 40	Pipe	2
	?	894 258 40	Strap retainer	4
	?	635 520 40	Flex. pipe	2
	?	935 272 40	Cover plate	2
	?	635 521 40	Clamp	4
	?	950 594 40	Strap retainer	2
	?	510 733 98	Resilient sleeve	16
	?	307 779 99	Bolt	24
	?	502 434 98	Bolt	16
	?	507 037 98	Nut	28
	?	332 336 99	Nut	16
	?	332 355 99	Nut	16
	?	340 465 99	Washer	28
	?	340 688 99	Washer	8
	?	954 035 40	Foam profile	4
	?	954 036 40	Foam profile	2
	?	925 250 40	Motor heat protection, rear	1
	?	942 445 40	Motor heat protection, front	1
	?	307 800 99	Bolt	9
	?	517 118 98	Lock washer	9
	?	942 446 40	Motor heat protection, front	1
	?	942 447 40	Retainer	1
	?	507 037 98	Nut	4
	?	340 465 99	Washer	4
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2

Komatsu PC3000-6 S/N 46235 parts catalog PDF

EXHAUST SYSTEM (485-1265d) in PC3000-6 S/N 46235. Diagram image and parts list.
