Diagram image 1 of 5

PC3000-6 S/N 46243

01 108 109 110 112 112 112 112 112 112 112 112 113 113 115 115 115 115 116 116 117 118 119 121 121 131 132 133 35 36 37 38 40 41 42 43 49 49 54 54 54 55 55

PC3000-6 S/N 46243

17 17 18 18 19 19 20 20 25 25 26 26 26 26 26 26 27 27 27 27 27 27 28 28 28 29 31 33 33 34 37 39 42 44 48 58 58 59 59 67 68 69 70 71 72 73 74 80

PC3000-6 S/N 46243

100 101 101 102 103 103 104 105 105 108 108 108 26 26 27 28 28 30 33 33 35 36 37 37 38 39 46 52 52 60 60 62 63 64 66 66 67 68 69 70 71 72 75 81 81 82 83 84 92 97 98 98 99

PC3000-6 S/N 46243

106 106 106 107 107 108 108 109 109 132 21 21 21 22 22 22 23 23 23 24 24 24 25 25 26 26 26 27 27 28 32 33 33 35 35 36 36 36 37 37 38 39 40 41 42 42 43 44 47 50 50 50 50 51 51 51 51 56 57 61 61 65 67 68 69 70 71 72 73 74 76 77 78 79 88 88 89 90 91 92 93 94 95

PC3000-6 S/N 46243

02 02 04 04 04 04 05 05 05 05 06 06 06 06 07 07 08 08 09 09 09 09 10 10 12 12 13 13 14 14 143 143 146 146 147 147 149 149 15 15 16 16 16 16

#	Part Number	Partname	Quantity
01	952 765 40	Boom assy.	1
02	936 375 40	Pin with plate	2
04	924 549 40	Plate	4
05	307 886 99	Bolt	8
06	517 346 98	Washer	8
07	936 377 40	Pin with plate	2
08	969 054 40	Freeze-in bushing	2
09	907 020 40	Seal ring	4
10	936 379 40	Pin with plate	2
12	924 551 40	Plate	2
13	307 845 99	Bolt	4
14	517 124 98	Washer	4
15	970 739 40	Freeze-in bushing	2
16	907 022 40	Seal ring	4
17	792 454 73	Pipe assy. Ш 65	1
18	792 455 73	Pipe assy. Ш 65	1
19	792 460 73	Pipe assy. Ш 50	2
20	792 461 73	Pipe assy. Ш 50	2
21	792 456 73	Pipe assy. Ш 65	1
22	792 457 73	Pipe assy. Ш 65	1
23	792 458 73	Pipe assy. Ш 50	1
24	792 459 73	Pipe assy. Ш 50	1
25	504 445 98	Pair of clamps	6
26	534 008 99	Plate	42
27	510 151 98	Bolt	72
28	332 353 99	Nut	96
29	502 977 98	Pair of clamps	4
30	908 648 40	Angle	1
31	933 087 40	Manifold	1
32	922 167 40	Weld on plate	2
33	502 976 98	Pair of clamps	4
34	504 446 98	Pair of clamps	4
35	319 292 99	Bolt	48
36	332 355 99	Nut	54
37	500 127 98	Flange	20
38	500 203 98	Ring	10
39	519 453 98	Flange seal	11
40	319 313 99	Bolt	16
41	332 338 99	Nut	16
42	504 448 98	Flange	8
43	504 449 98	Ring	4
44	519 454 98	Flange seal	6
46	350 768 99	Washer	25
47	922 169 40	Plate	1
48	890 939 40	Angle	4
49	948 193 40	Clamp line	1
50	2A2-62-11710	Hose assy. DN 40x1950	2
51	2A2-62-11660	Hose assy. DN 50x1980	2
52	07084-D1420	Hose assy. DN 40x2000	2
54	07085-D2026	Hose assy. DN 50x2600	2
55	07085-D1426	Hose assy. DN 40x2600	4
56	510 736 98	Resilient sleeve	4
57	502 390 98	Bolt	4
58	792 462 73	Pipe assy. Ш 38	1
59	792 463 73	Pipe assy. Ш 38	1
60	792 464 73	Pipe assy. Ш 38	1
61	768 138 73	Pipe assy. Ш 38	1
62	332 114 99	Nut	6
63	307 792 99	Bolt	6
64	534 004 99	Cover plate	3
65	319 305 99	Bolt	20
66	319 288 99	Bolt	60
67	319 209 99	Bolt	32
68	500 129 98	Flange	8
69	501 871 98	Ring	8
70	356 210 40	Seal	8
71	319 289 99	Bolt	40
72	501 898 98	Ring	10
73	319 323 99	Bolt	16
74	504 461 98	Ring	4
75	504 709 98	Pair of clamps	3
76	505 729 98	Insert	10
77	502 371 98	Pair of clamps	10
78	922 162 40	Retrainer	2
79	922 168 40	Angle	1
80	952 731 40	Double angle assy.	2
81	793 823 73	Pipe assy. Ш 50	1
82	793 824 73	Pipe assy. Ш 50	1
83	793 822 73	Pipe assy. Ш 50	1
84	793 825 73	Pipe assy. Ш 50	1
88	517 123 98	Lock washer	13
89	933 098 40	Console	1
90	308 640 99	Bolt	4
91	308 616 99	Bolt	22
92	517 118 98	Lock washer	28
93	504 853 98	Pair of clamps	4
94	500 398 98	Cover plate	4
95	505 212 98	Insert	4
97	935 546 40	Guard plate	1
98	502 879 98	Bolt	6
99	502 961 98	Weld on plate	4
100	502 965 98	Cover plate	4
101	534 009 99	Weld on plate	3
102	905 279 40	Pipe	4
103	2A2-62-11690	Hose assy. DN 40x2650	2
104	935 549 40	Guard plate	1
105	500 345 98	Pair of clamps	1
106	943 171 40	Guard plate	5
107	943 158 40	Guard plate	2
108	07000-B3048	Flange seal	26
109	07000-B2060	Flange seal	8
110	949 445 40	Clamp line consists of fig. nos. 131-133	1
112	504 853 98	Pair of clamps	6
113	505 212 98	Insert	2
115	334 601 99	Nut	12
116	502 618 98	Pair of clamps	1
117	504 926 98	Insert	1
118	534 004 99	Cover plate	1
119	507 037 98	Nut	2
121	515 846 98	Insert	4
131	948 194 40	Rail	1
132	308 643 99	Bolt	12
133	308 584 99	Bolt	2
143	923 845 40	Pin with plate	2
146	905 749 40	Schackle	2
147	307 886 99	Bolt	4
149	340 471 99	Washer	8

Komatsu PC3000-6 S/N 46243 parts catalog PDF

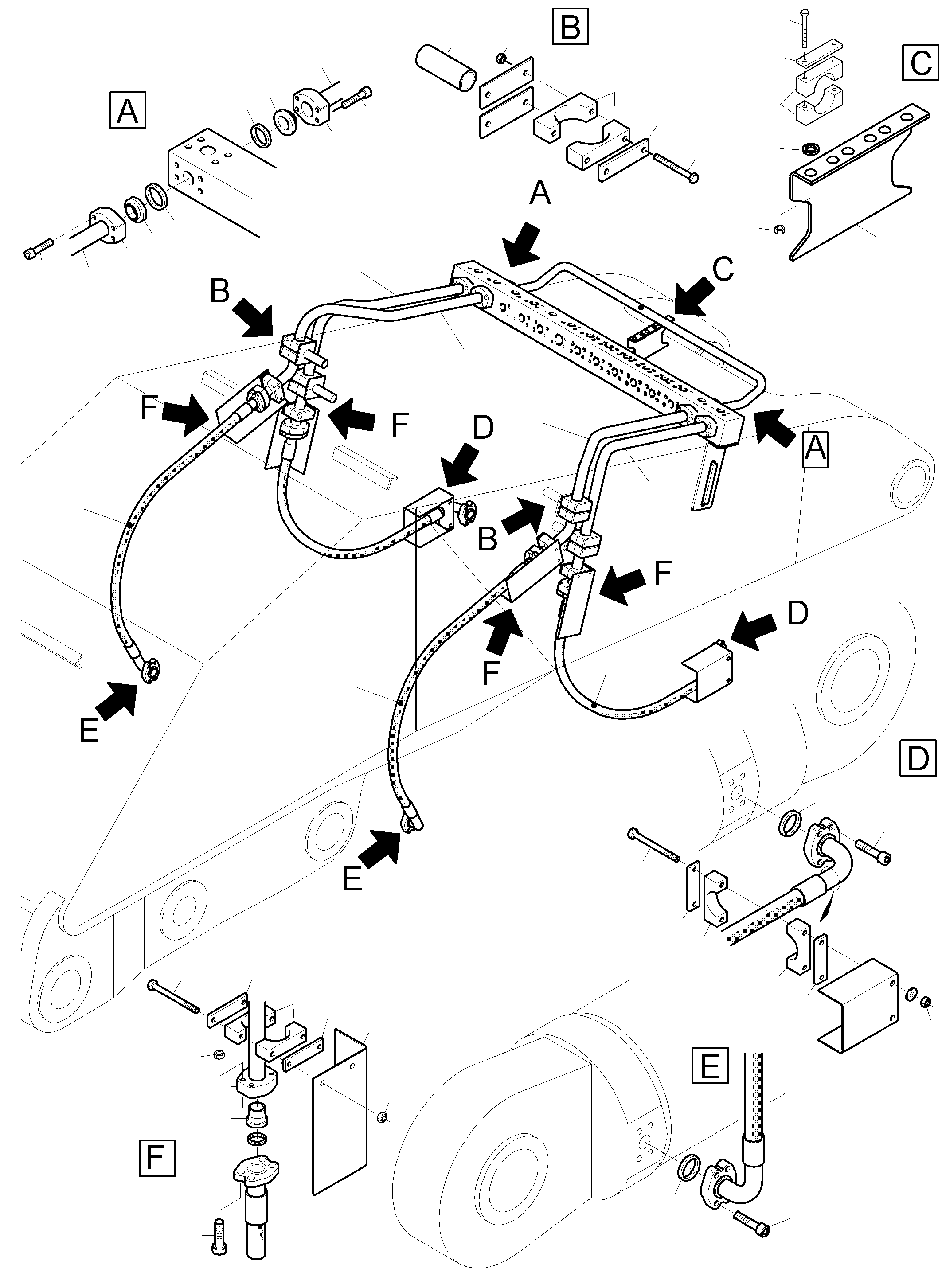

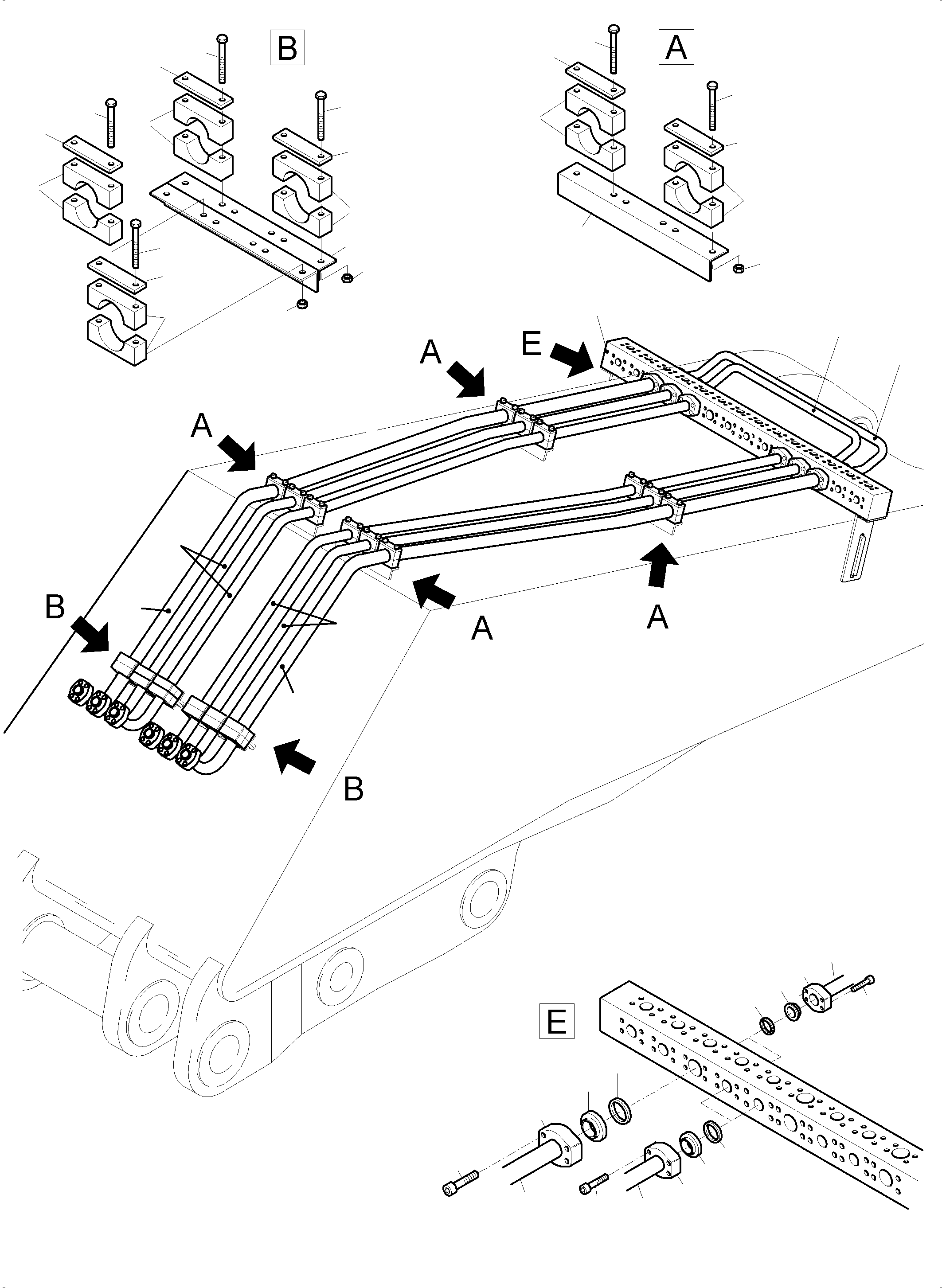

BULLCLAM BUCKET BOOM 6M (488-4000) in PC3000-6 S/N 46243. Diagram image and parts list.
