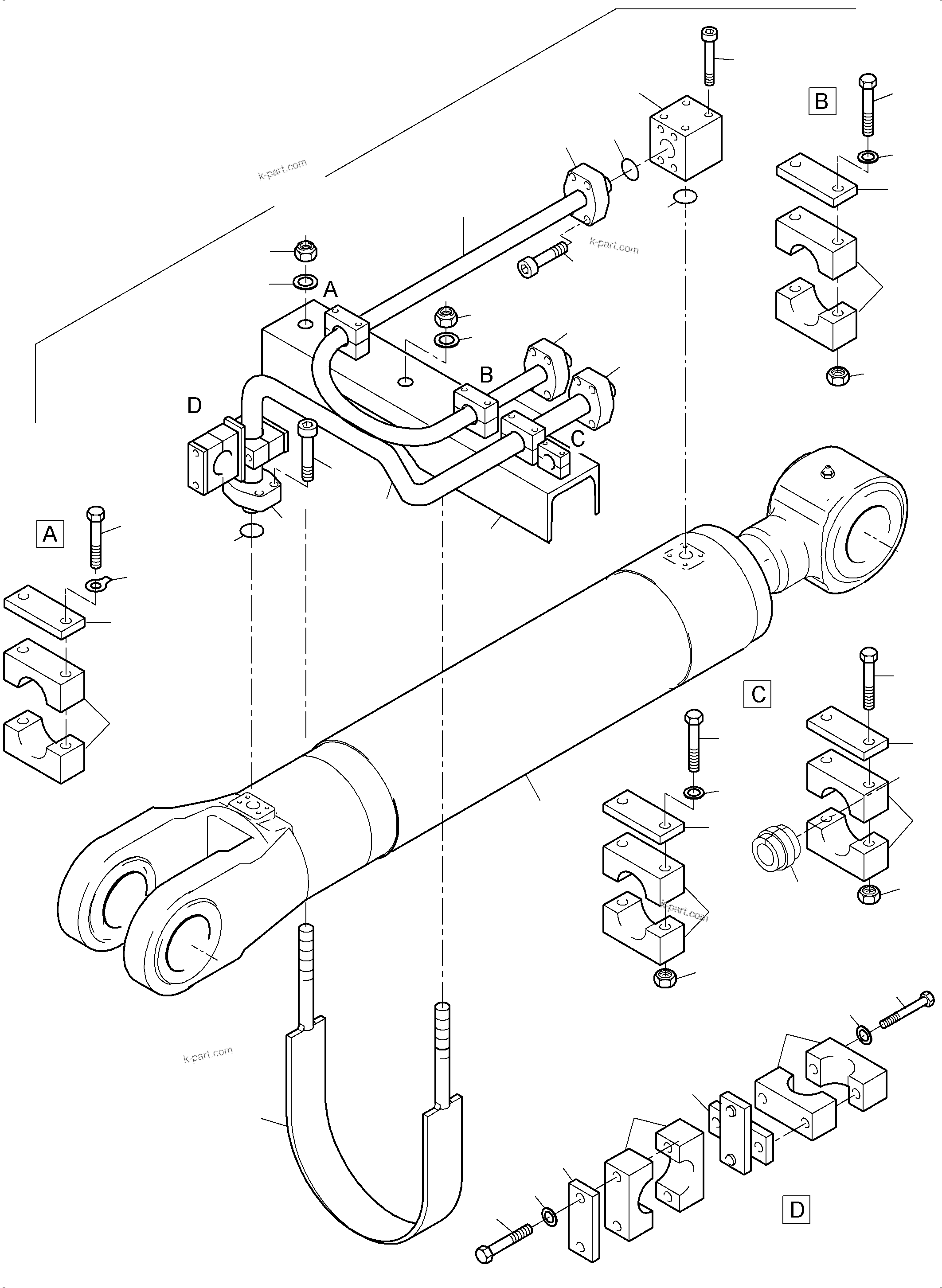

PIPING - BACKHOE CYLINDER R.H. | PC3000-6 S/N 46247

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 46247

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	910 174 40	Clamp clip	1
?	982 246 40	Spanner	1
?	955 257 40	Pipe assy. Ш 50	1
?	982 251 40	Pipe assy. Ш 65	1
?	513 302 98	Connecting block	1
?	505 440 98	Clamp set	1
?	512 885 98	Clamp set	2
?	534 008 99	Cover plate	4
?	308 434 99	Bolt	2
?	517 118 98	Lock washer	4
?	319 323 99	Bolt	4
?	308 424 99	Bolt	4
?	319 289 99	Bolt	4
?	308 614 99	Bolt	4
?	334 600 99	Nut	4
?	340 467 99	Washer	4
?	334 601 99	Nut	2
?	340 469 99	Washer	2
?	519 453 98	Flange seal	2
?	982 213 40	Retainer	1
?	308 599 99	Bolt	2
?	504 445 98	Clamp set	1
?	502 618 98	Clamp set	2
?	534 004 99	Cover plate	2
?	308 582 99	Bolt	2
?	517 122 98	Lock washer	4
?	308 584 99	Bolt	2
?	507 037 98	Nut	2
?	504 926 98	Grommet	2
?	504 448 98	Flange	2
?	504 461 98	Collar ring	1
?	504 449 98	Collar ring	1
?	519 454 98	Flange seal	1
?	500 127 98	Flange	2
?	500 203 98	Collar ring	1
?	501 898 98	Collar ring	1
?		Hydraulic cylinder	1	485-4286
?	982 253 40	Piping Backhoe cylinder assy. r.h. fig-nos. 01-29	1
